Toyota COROLLA vacuum tube — Figure 1708

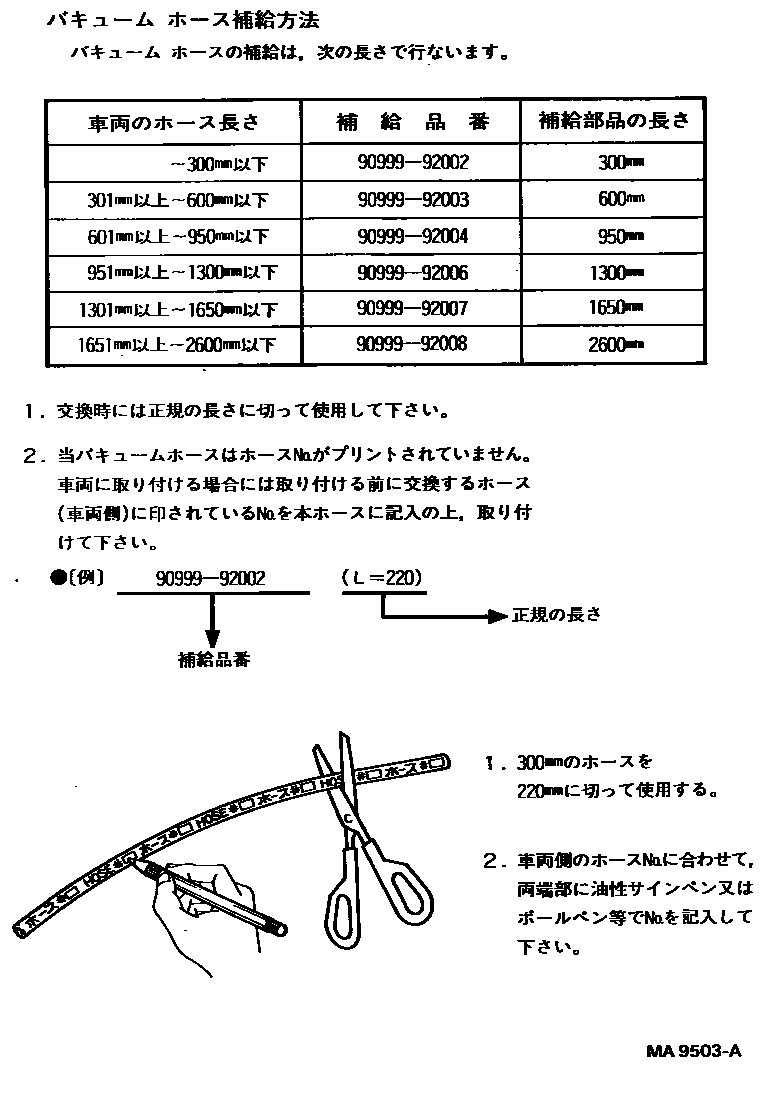

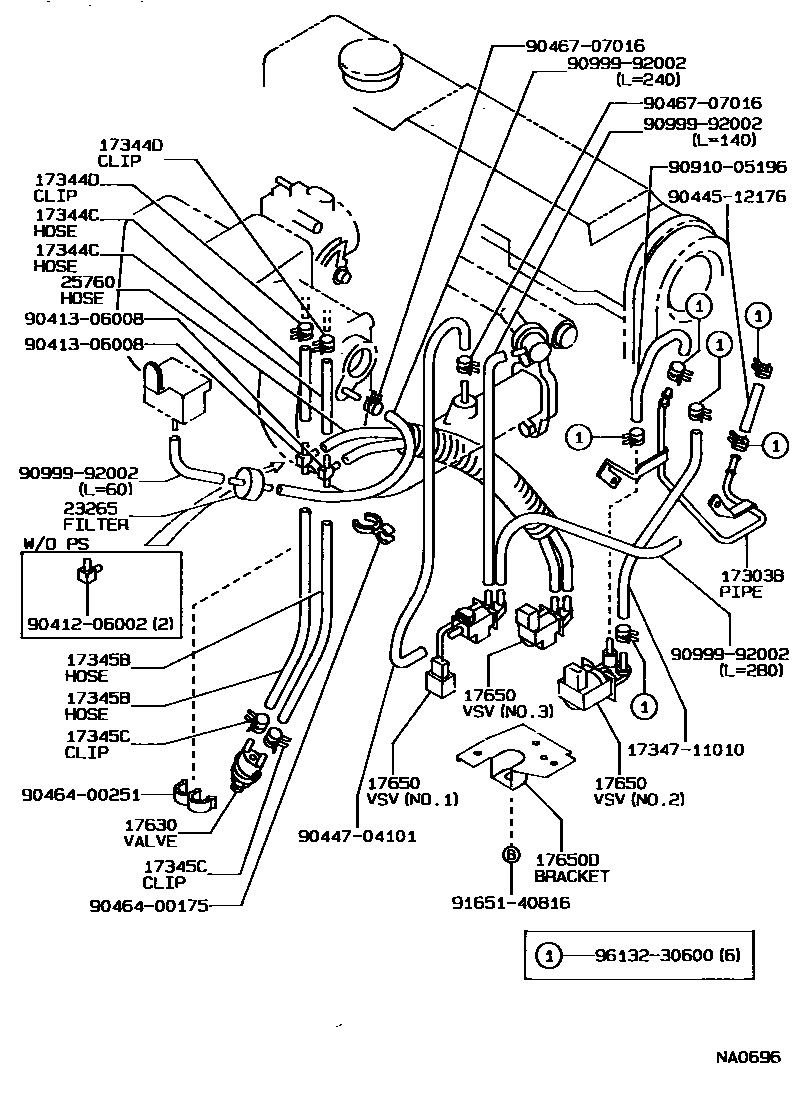

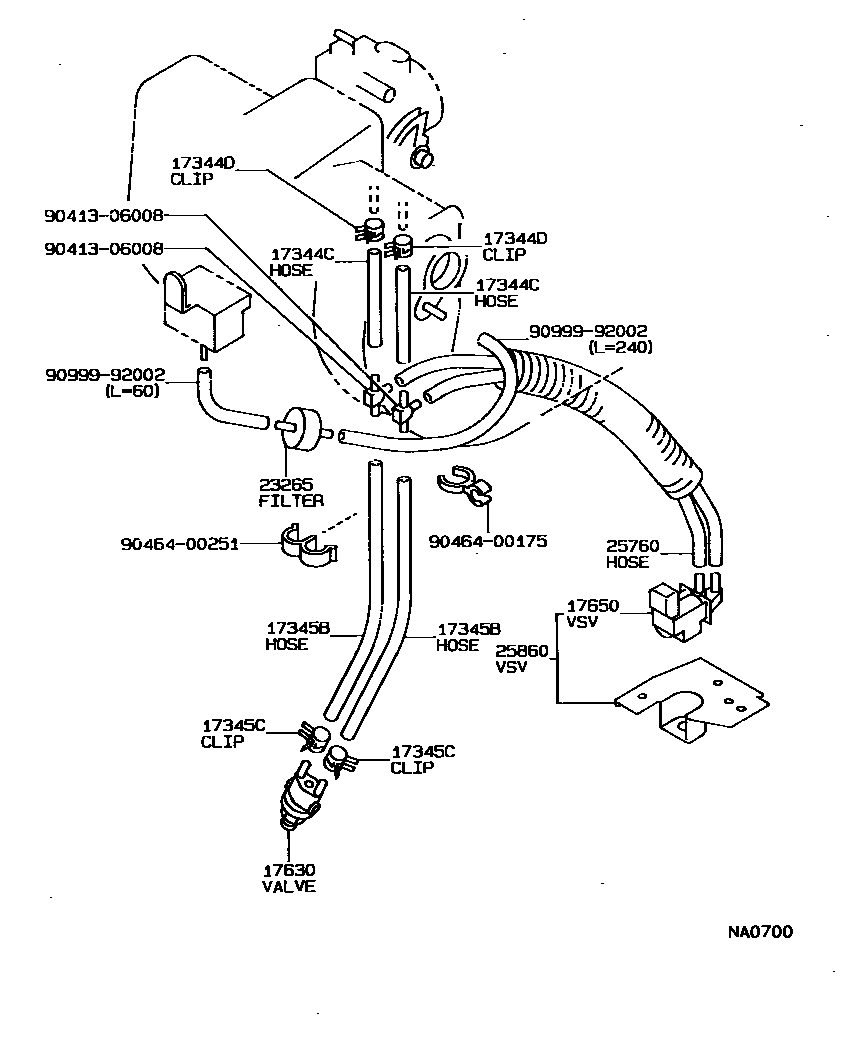

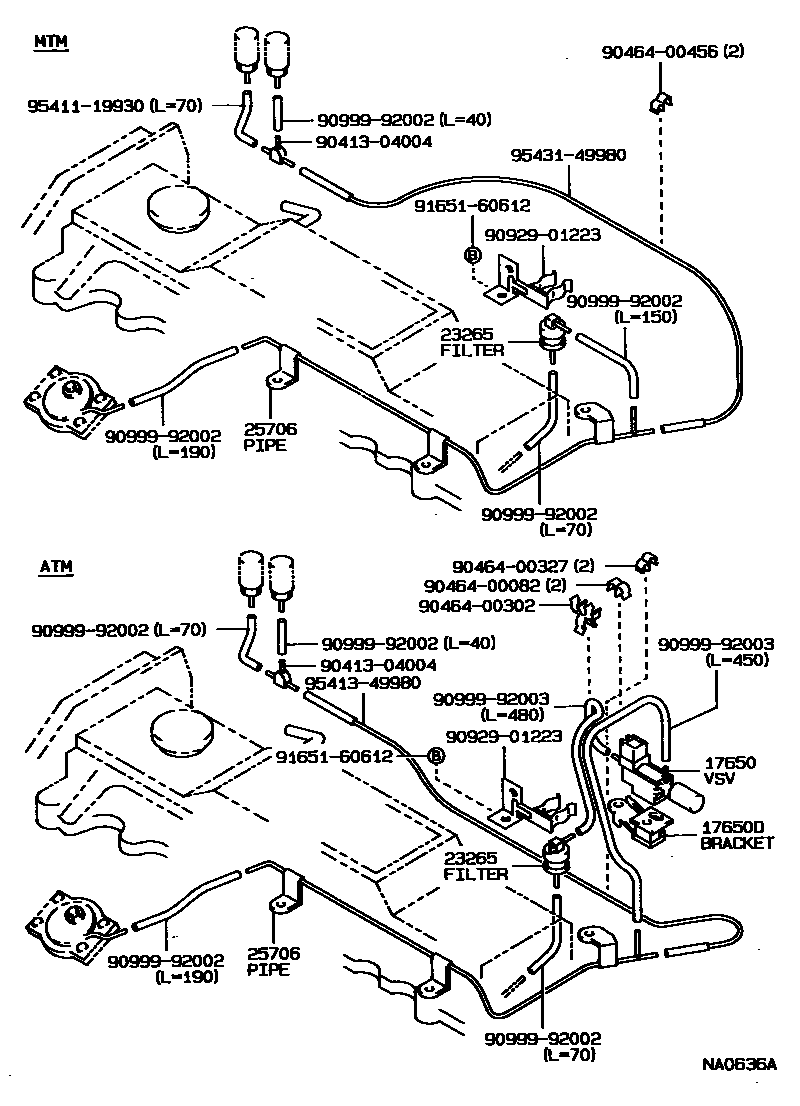

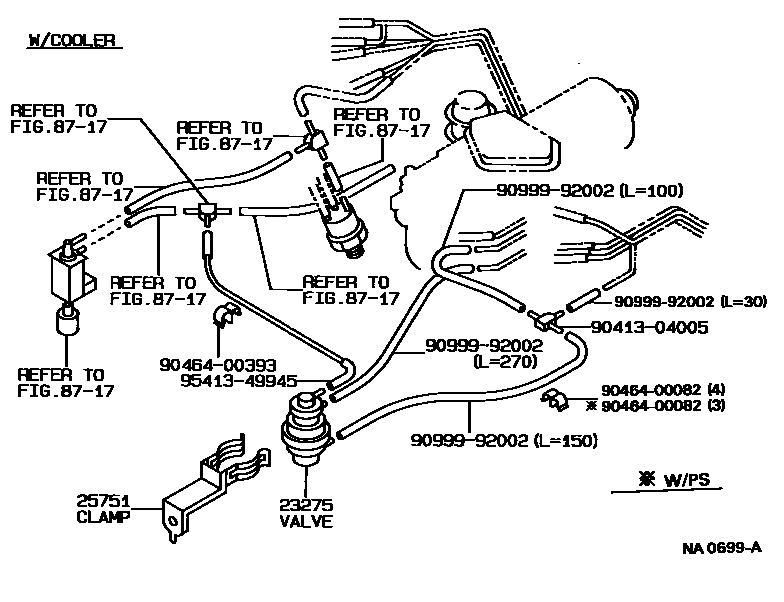

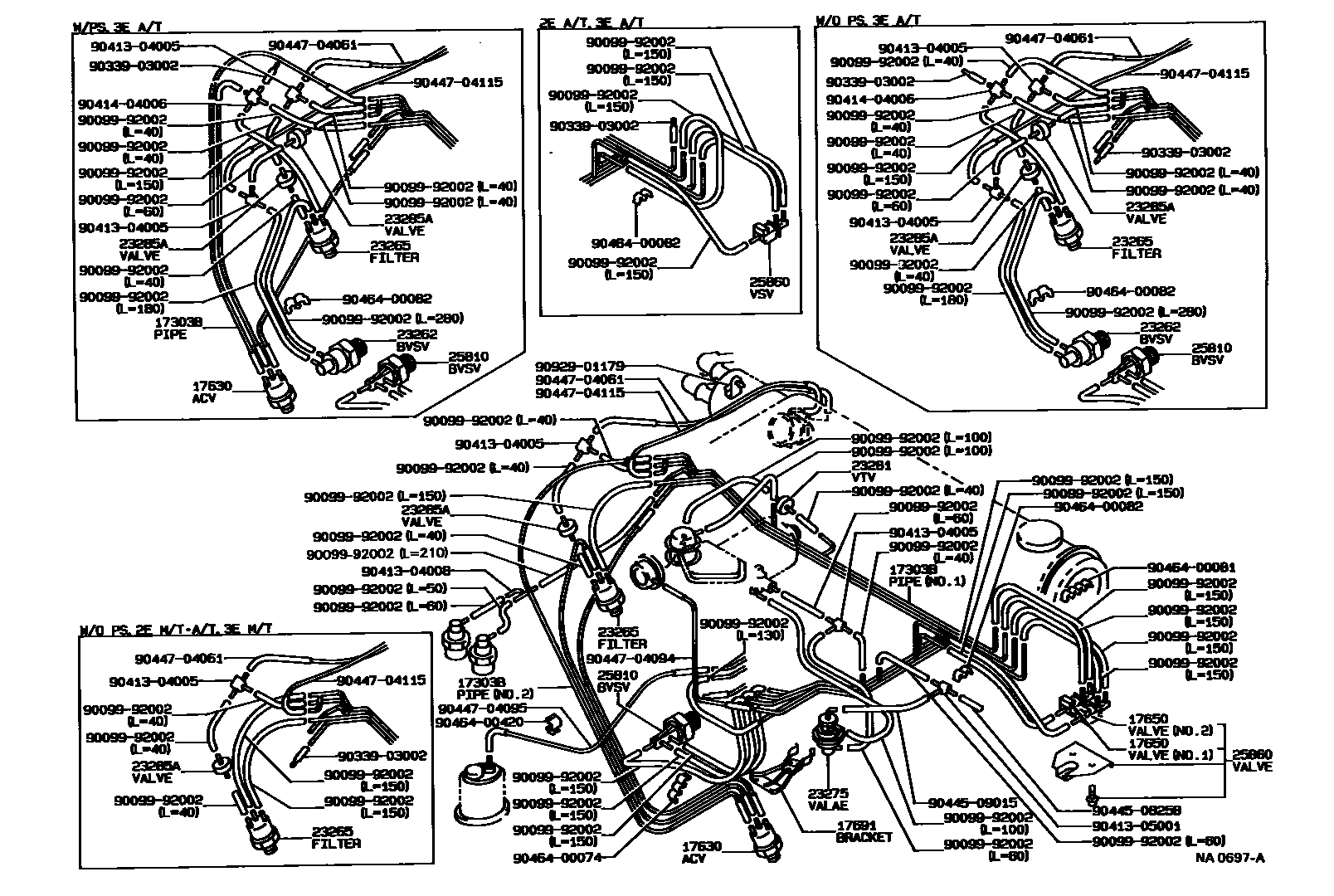

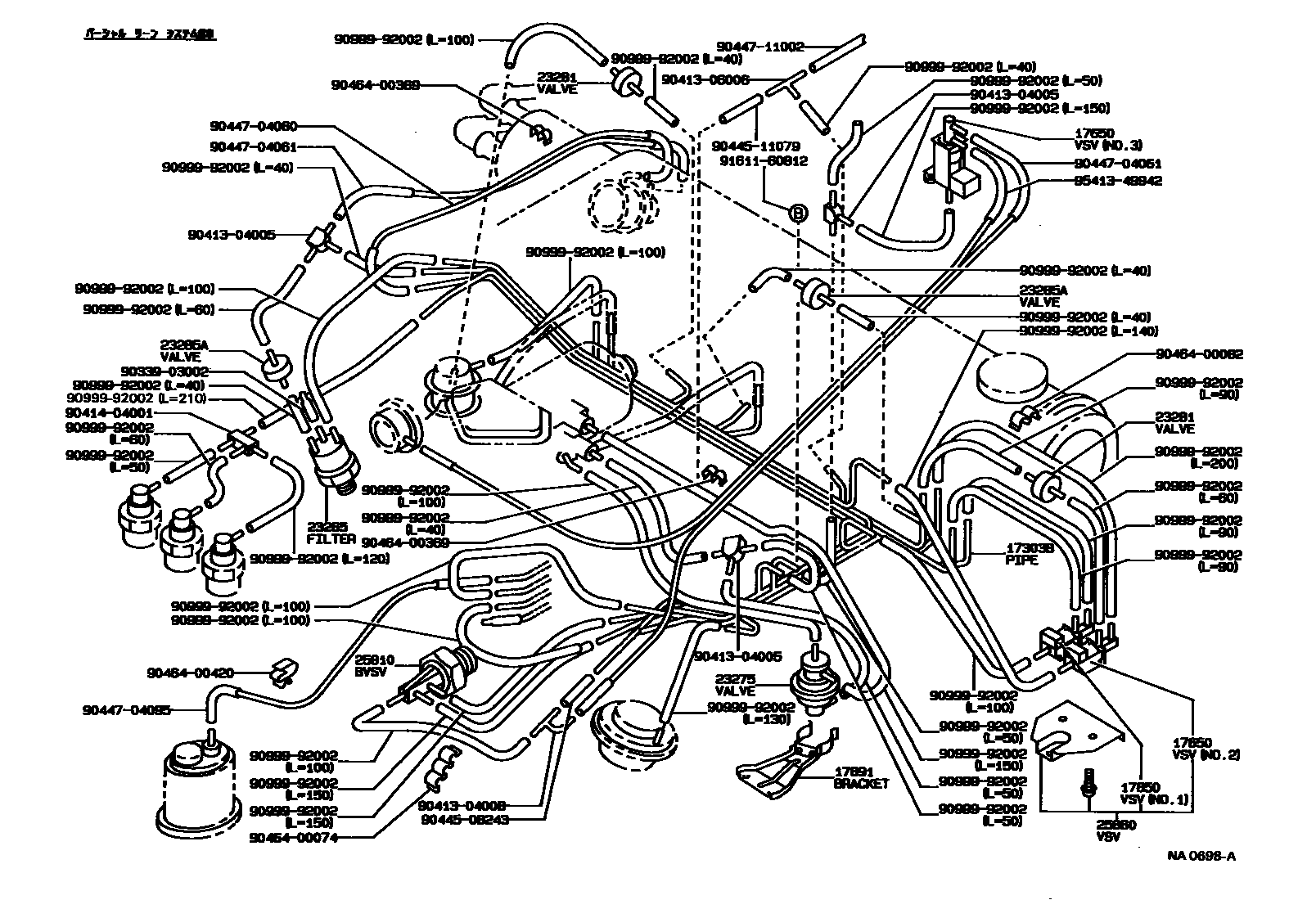

Toyota COROLLA EPC diagram 1708, vacuum tube, with 7 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-11020 · 17303-11100 · 17303-11170 · 17303-11240 · 17303-11280 |
| 17344C | No. 4 hose (for idle speed boost) | 17344-11010 |
| 17344D | No. 4 clip (for idle lifting hose) | 96132-30400 |
| 17345B | No. 5 hose (for idle speed boost) | 17345-11030 |
| 17345C | No. 5 clip (for idle lifting hose) | 96132-30400 |
| 17630 | Air control valve assembly | 17630-15050 · 17630-28020 · 17630-70020 |
| 17650 | Vacuum switch valve assembly | 89570-11020 · 90910-12008 · 90910-12009 · 90910-12029 · 90910-12030 · 90910-12031 · 90910-12041 · 90910-12042 · 90910-12043 |
| 17650D | Vacuum switch valve bracket | 21999-11020 · 25861-55010 |
| 17691 | No. 1 vacuum control valve bracket | 17691-11010 |
| 23262 | No. 1 bimetallic vacuum switch valve | 90925-05076 |
| 23265 | No. 1 gas filter | 90917-11009 · 90917-11024 · 90917-11027 · 90917-11030 |
| 23275 | Vacuum control valve No. 1 | 90925-03155 · 90925-03164 · 90925-03171 · 90925-03173 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01041 · 90925-01099 |
| 23285A | No. 1 one-way valve | 90917-10049 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-55010 |
| 25751 | No. 1 vacuum control valve clamp | 25751-11030 |
| 25760 | Vacuum transfer hose assembly | 25760-11021 · 25760-11030 |
| 25810 | Bimetal valve assembly | 25810-13010 · 25810-24010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-11040 · 25860-11060 · 25860-11090 |
