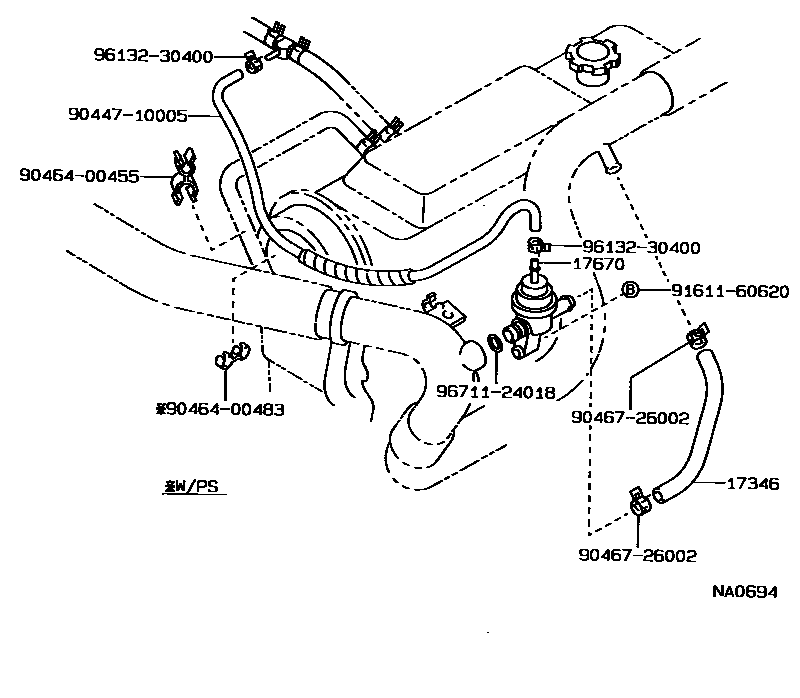

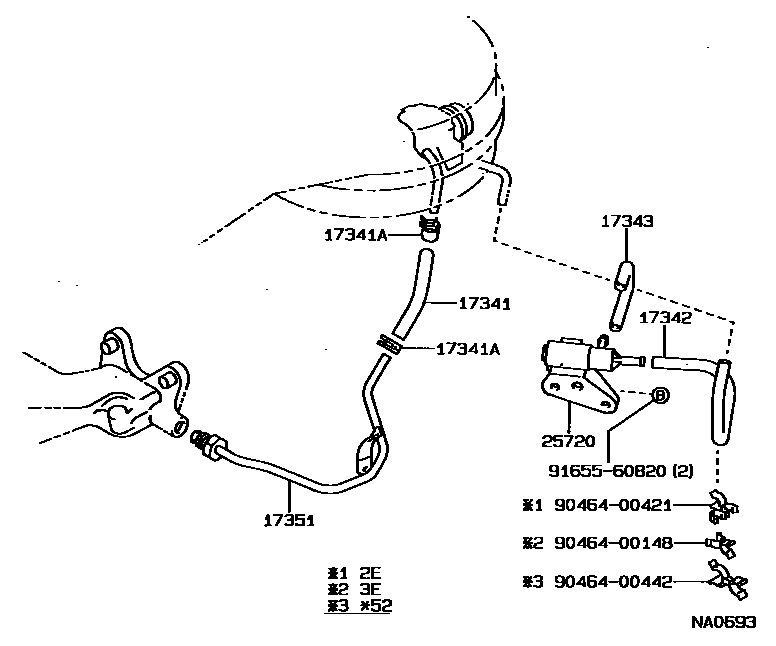

Toyota COROLLA 歧管喷气系统 — Figure 1706
Toyota COROLLA EPC diagram 1706, 歧管喷气系统, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341 | Hoses No. 1 (for air injection systems) | 17341-11020 · 17341-11021 |
| 17341A | No. 1 clip or clip (for No. 1 air injection system hose) | 90467-20005 |
| 17342 | Hoses No. 2 (for air injection systems) | 17342-11020 · 17342-11031 |
| 17343 | No. 3 hose (for air injection system) | 17343-11010 · 17343-11050 |
| 17346 | No. 6 hose (for air injection system) | 17346-11010 |
| 17351 | jet manifold | 17306-11010 · 17306-11020 |
| 17670 | Air bypass valve assembly | 17670-11010 |
| 25720 | Electronic air control valve assembly | 25720-11030 · 25720-11050 |
