Toyota COROLLA Air Cleaner — Figure 1703

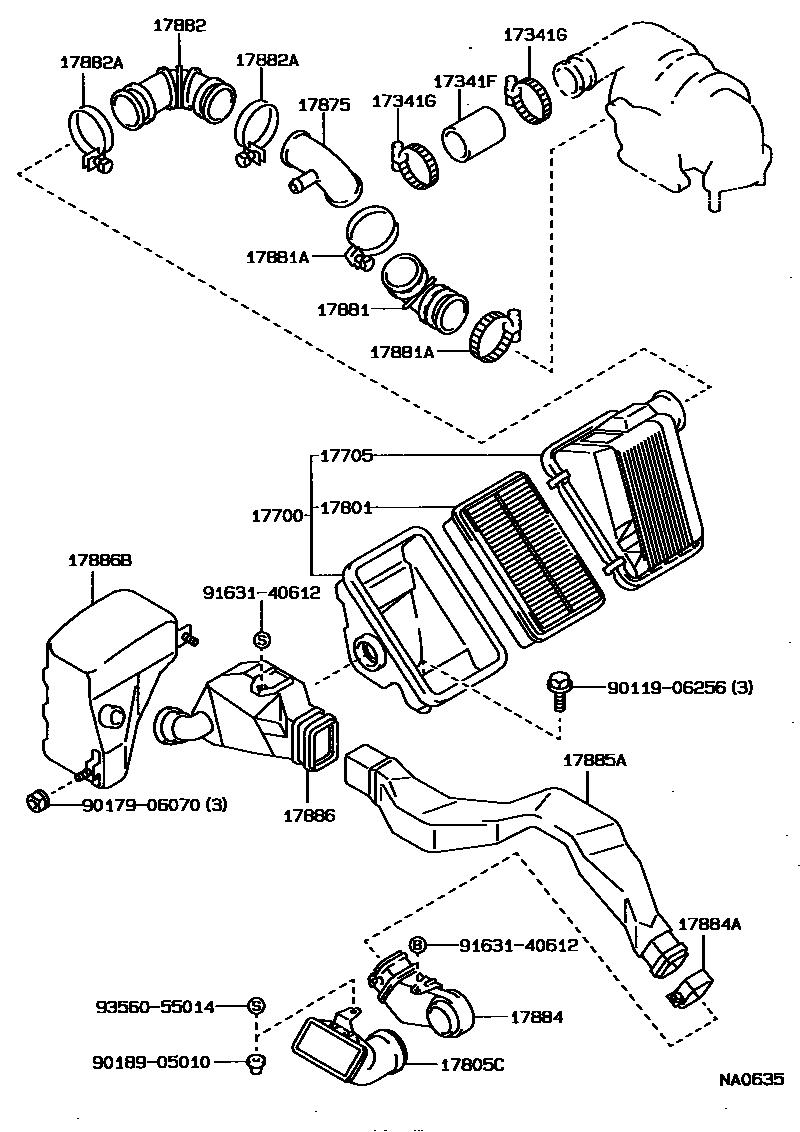

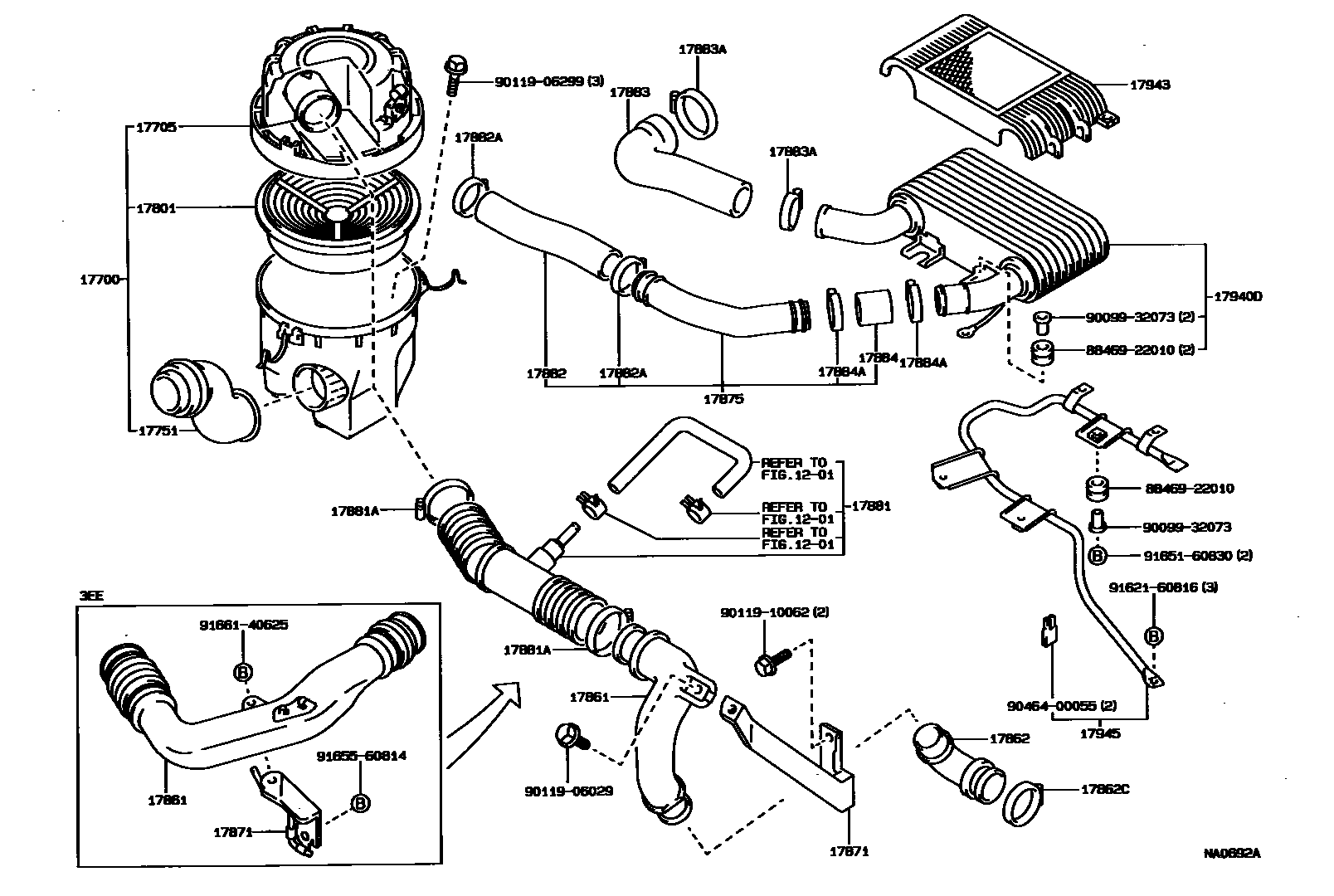

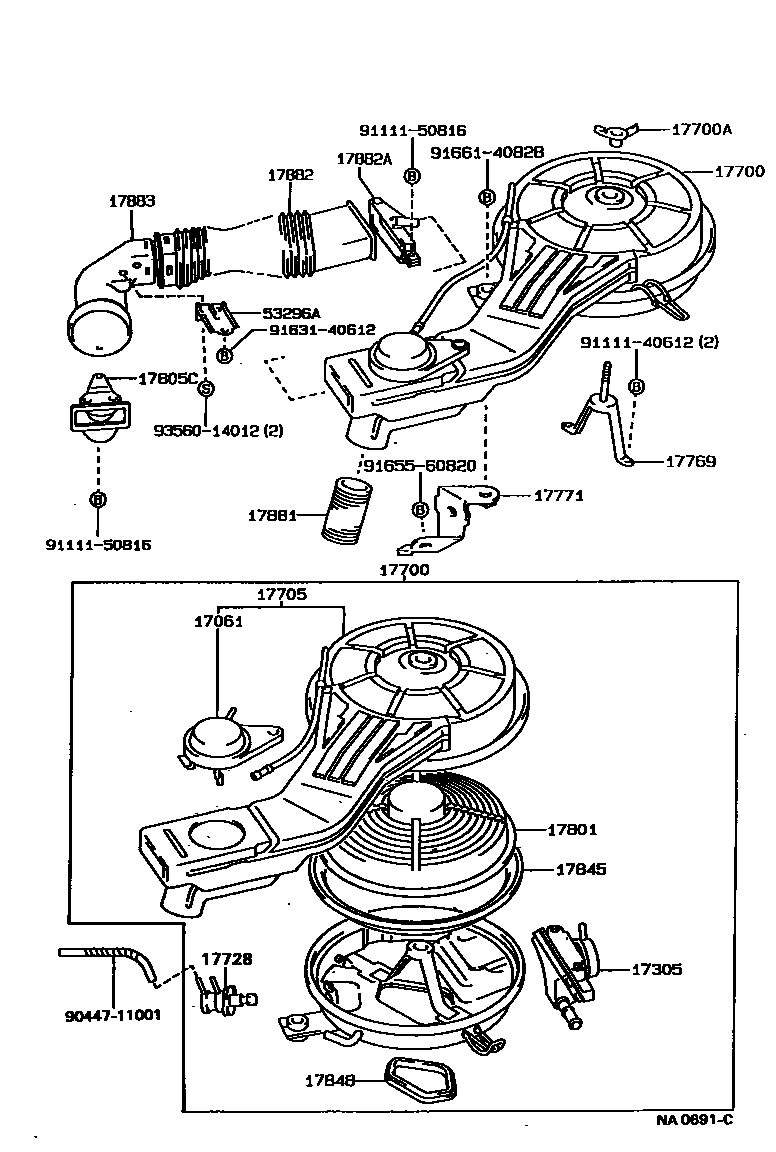

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-11030 |
| 17305 | Reed valve sub-assembly | 17350-11011 · 17350-11012 · 17350-11040 · 17350-11041 |
| 17341F | Air hose No. 1 | 17341-55010 |
| 17341G | Clip or clip (for No. 1 air hose) | 90460-50001 |
| 17700 | air filter assembly | 17700-11250 · 17700-11430 · 17700-11480 · 17700-11490 · 17700-11491 · 17700-11500 · 17700-11501 · 17700-55010 |
| 17700A | Wing nut (for air cleaner) | 90175-06009 |
| 17705 | Air filter cover sub-assembly | 17705-11220 · 17705-11320 · 17705-11330 · 17705-55010 |
| 17728 | thermostat valve | 17728-11030 · 17728-11050 |
| 17751 | No. 1 air filter air inlet | 17751-11040 |
| 17769 | air filter bracket | 17769-11020 |
| 17771 | Air filter inlet pipe bracket | 17771-11010 |
| 17801 | Air filter element sub-assembly | 17801-10030 · 17801-16010 · 17801-70010 |
| 17805C | No. 1 air filter pipe assembly | 17805-11050 |
| 17845 | air cleaner cover gasket | 17845-10020 |
| 17848 | Gasket from air cleaner to carburetor | 17848-15010 |
| 17861 | Intake connecting pipe | 17861-11060 · 17861-11080 · 17861-11090 |
| 17862 | No. 2 air intake connecting pipe | 17862-11051 |
| 17862C | Clamp (for No. 2 intake connecting pipe) | 90460-57002 |
| 17871 | Air intake connecting pipe stay | 17871-11010 · 17871-11030 |
| 17875 | Intake connecting pipe | 17875-11020 · 17875-55010 |
| 17881 | No. 1 air cleaner hose | 17881-11110 · 17881-11120 · 17881-11121 · 17882-55010 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-50001 · 90460-73001 · 90460-75001 · 96111-10600 |
| 17882 | No. 2 air cleaner hose | 17341-11040 · 17881-55010 · 17882-11030 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 78186-16040 · 90460-65004 · 96111-10600 · 96111-10690 |
| 17883 | No. 3 air cleaner hose | 17342-11050 · 17881-11180 |
| 17883A | Clamp (for No. 3 air cleaner hose) | 90460-65004 · 90460-75001 |
| 17884 | No. 4 air cleaner hose | 17343-11040 · 17881-55020 |
| 17884A | Clamp (for No. 4 air cleaner hose) | 90460-01043 · 90460-65004 |
| 17885A | No. 5 air cleaner hose | 17882-55020 |
| 17886 | No. 6 air cleaner hose | 17883-55010 |
| 17886B | No. 7 air cleaner hose | 17884-55010 |
| 17940D | Intercooler assembly | 17940-11020 |
| 17943 | Intercooler protection device | 17943-11020 |
| 17945 | intercooler bracket | 17945-11020 |
| 53296A | Cold air intake pipe fixing parts | 53296-16050 |
