Toyota COROLLA Exhaust Pipe — Figure 1702

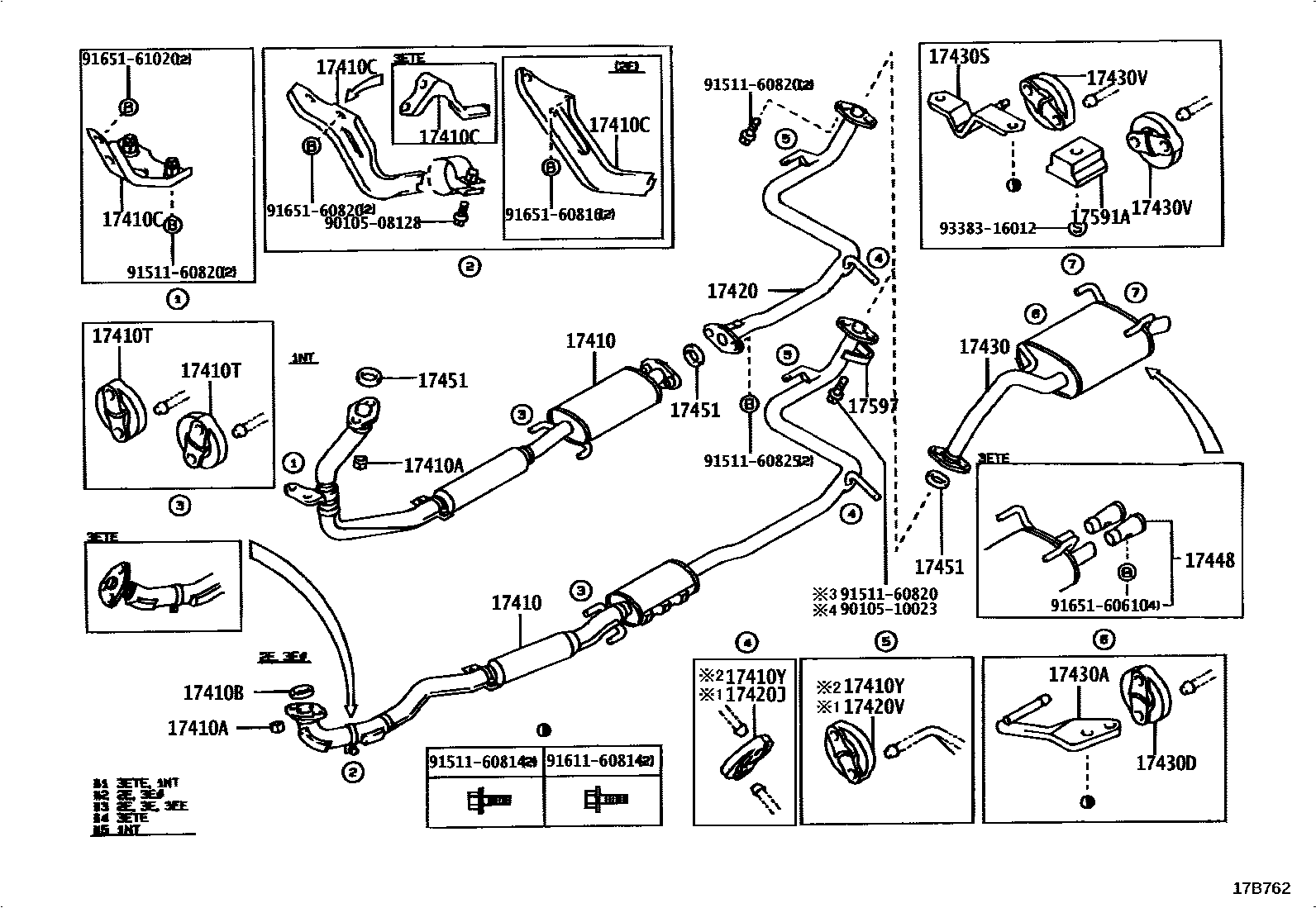

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-11190 · 17410-11200 · 17410-11240 · 17410-11350 · 17410-55010 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06004 · 90917-06012 |
| 17410C | Front exhaust pipe bracket (for front) | 17571-11020 · 17571-11090 · 17571-11100 · 17571-55010 |
| 17410T | Front exhaust pipe bolt or ring (for center) | 17565-55020 · 17565-55030 |
| 17410Y | Front exhaust pipe bolts or rings (for rear) | 17565-11100 |
| 17420 | Central exhaust pipe assembly | 17420-55010 |
| 17420J | Center exhaust pipe bolt or ring | 17565-55020 |
| 17420V | Center exhaust pipe rear bolt or ring | 17565-55020 |
| 17430 | Exhaust tailpipe assembly | 17430-11080 · 17430-11081 · 17430-11120 · 17430-11310 · 17430-11311 · 17430-55010 |
| 17430A | Exhaust tailpipe bracket (for front) | 17507-11010 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 17565-11100 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17508-11010 |
| 17430V | Exhaust tailpipe bolts or rings (for rear) | 17565-63030 |
| 17448 | Exhaust pipe tail throat | 17448-19015 |
| 17451 | Exhaust pipe gasket | 90917-06004 · 90917-06026 |
| 17591A | Exhaust pipe bracket block | 17591-11010 |
| 17597 | Exhaust pipe fender | 17597-74020 |
