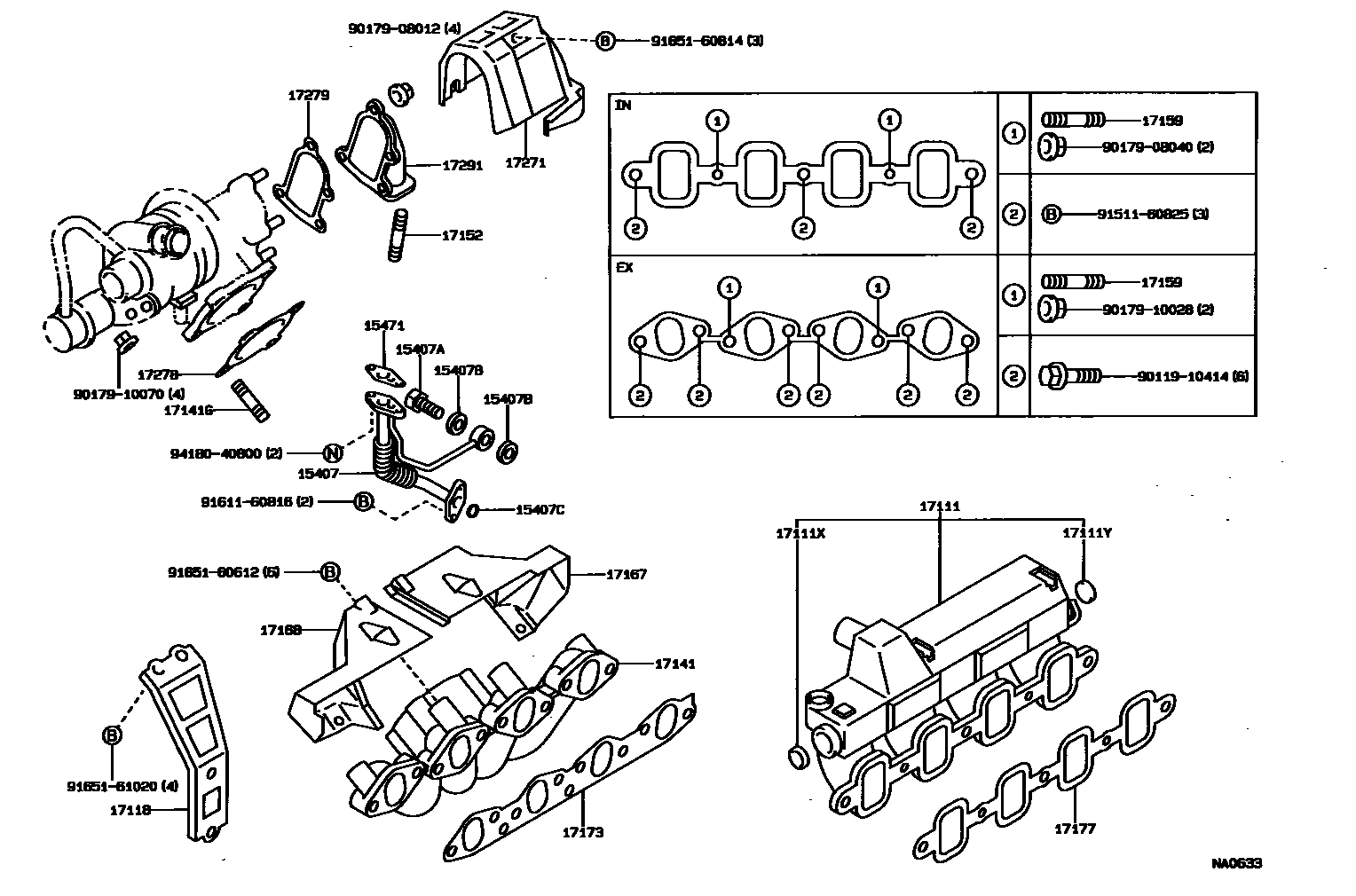

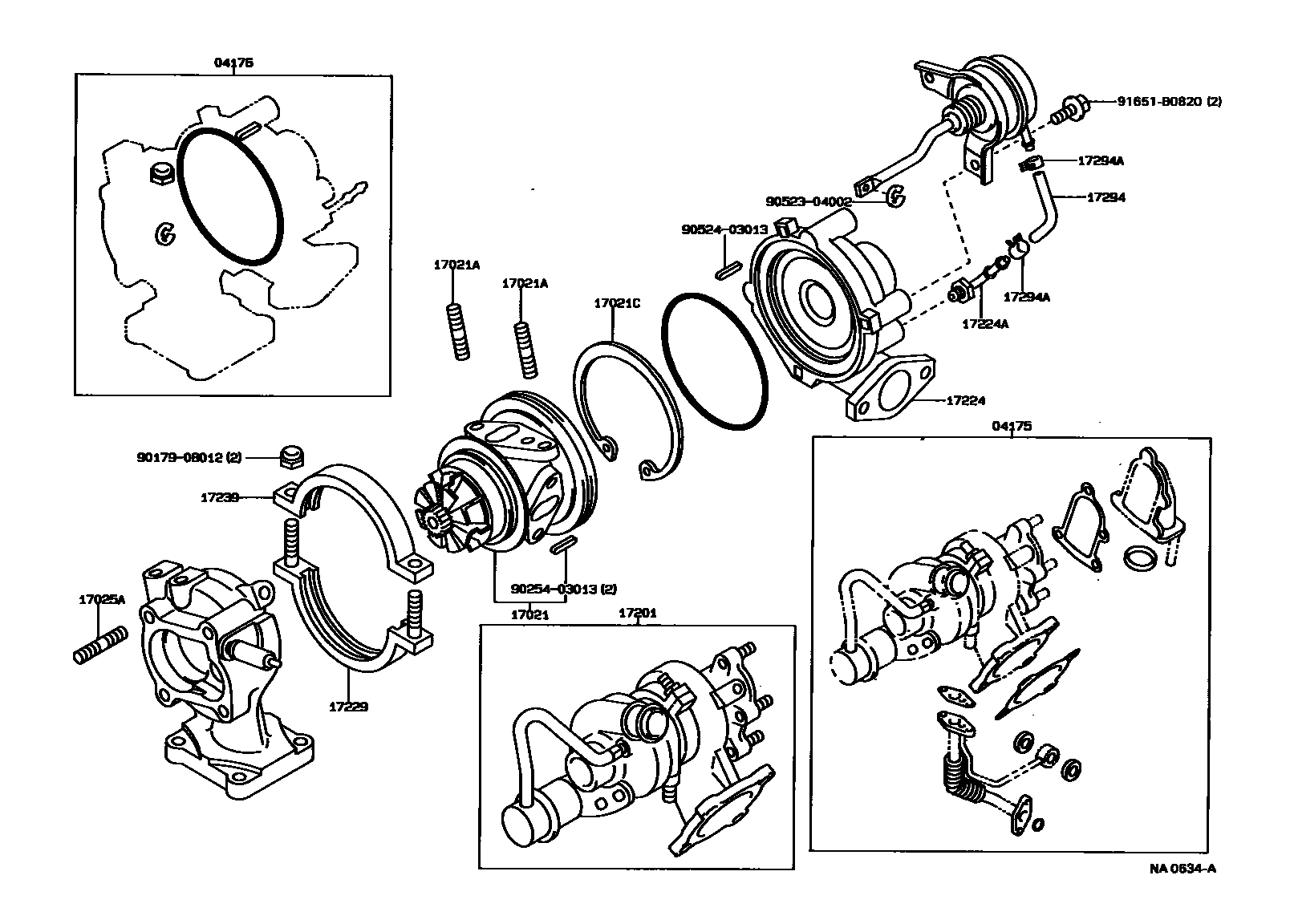

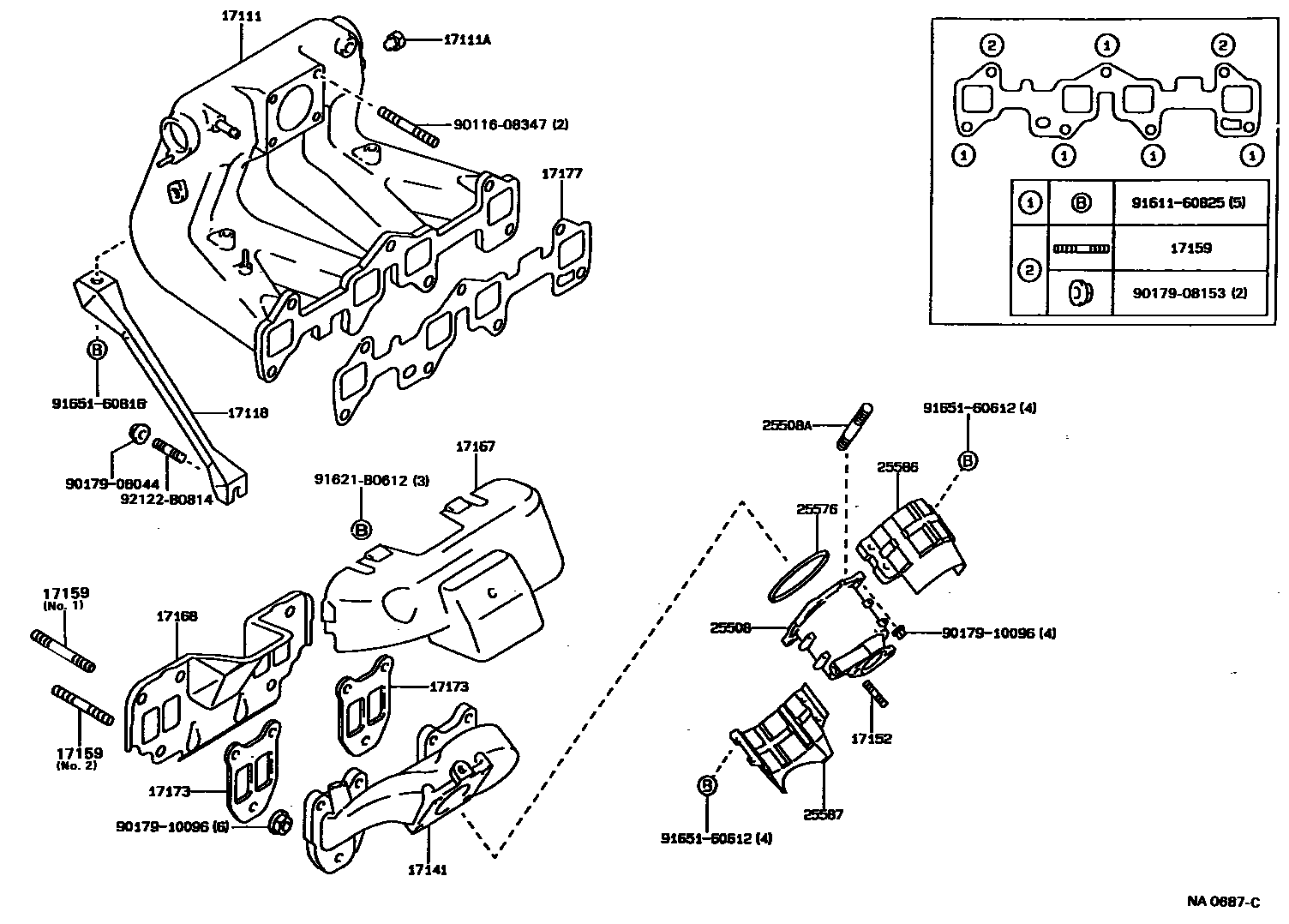

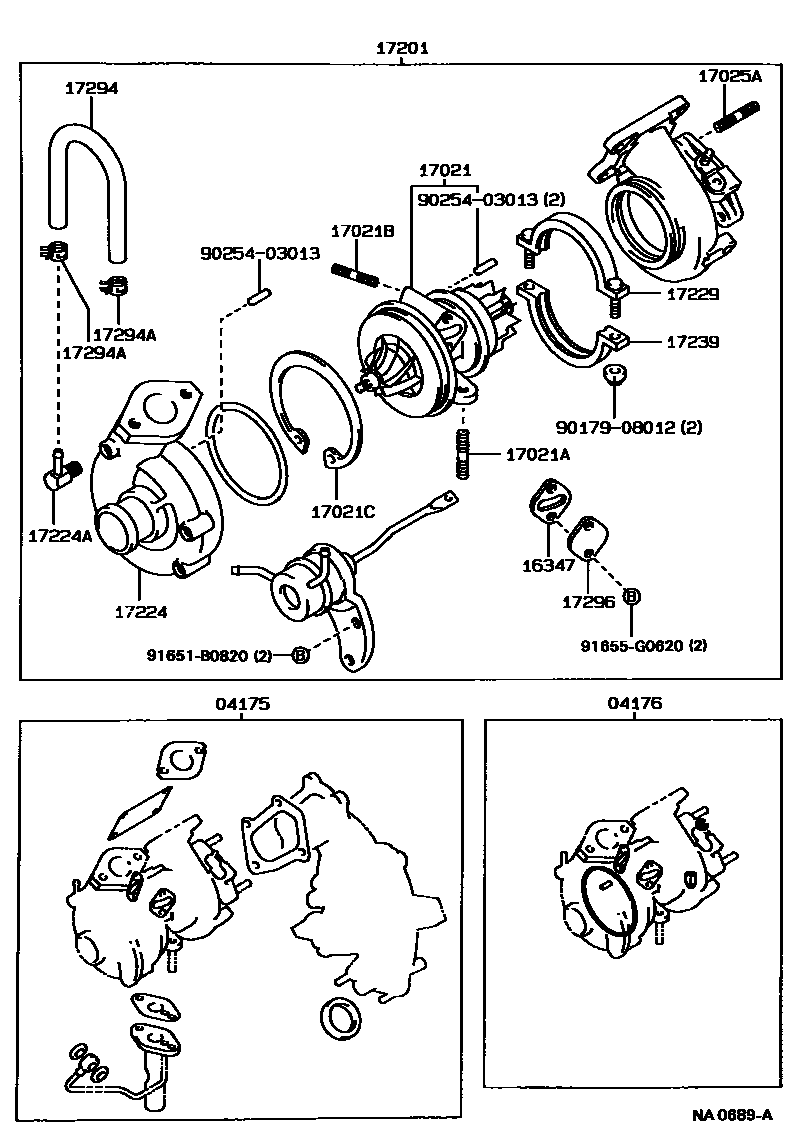

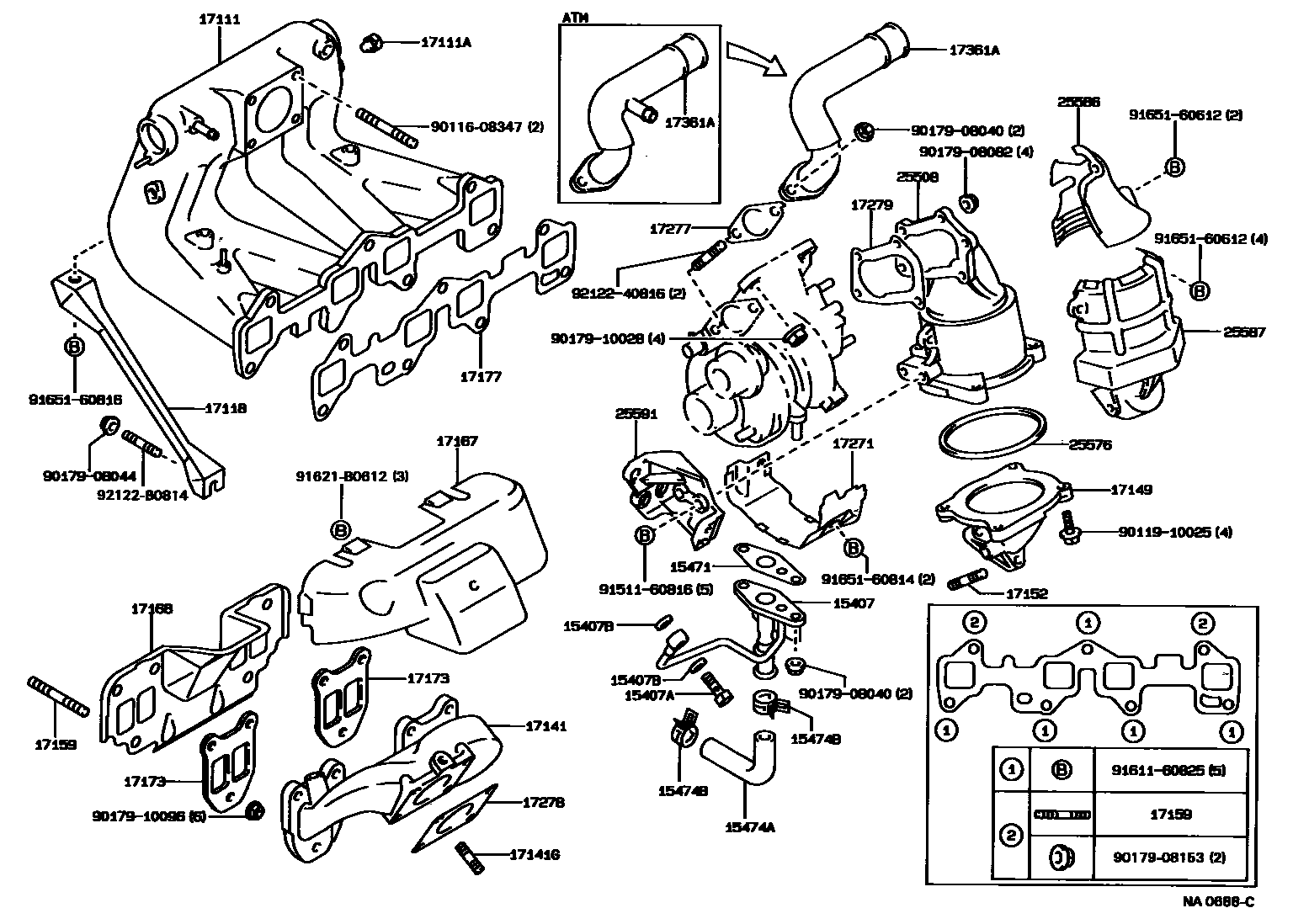

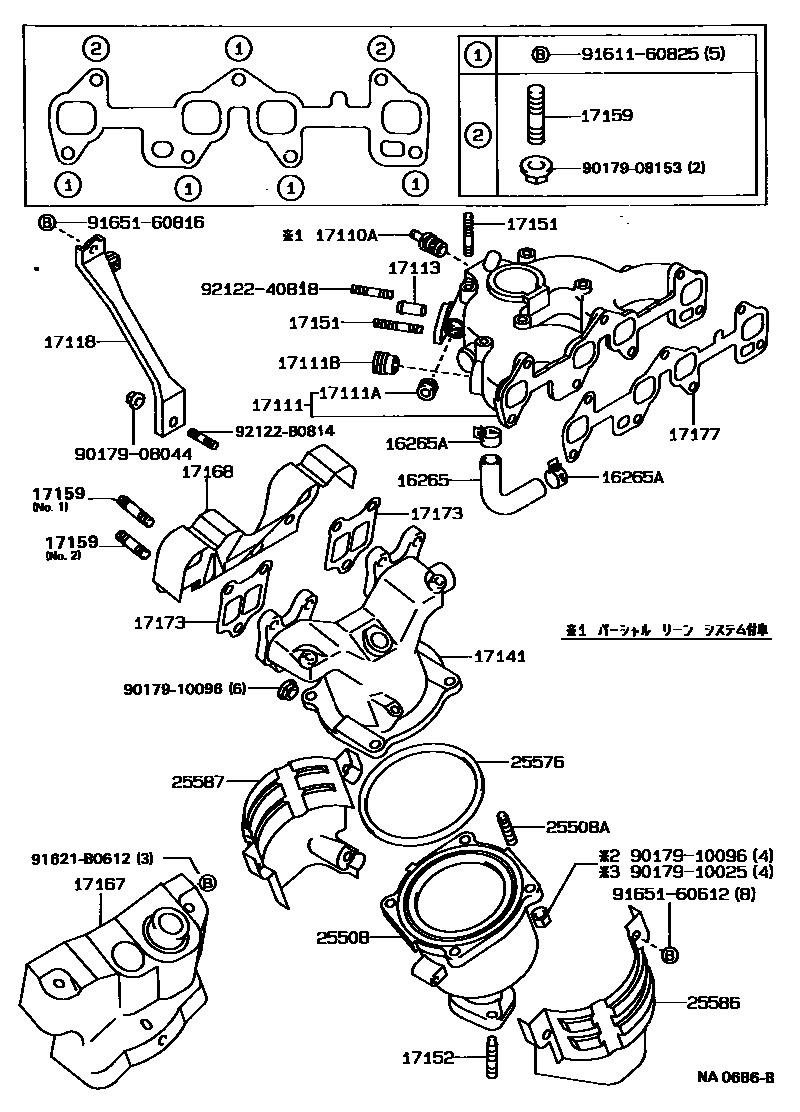

Toyota COROLLA Manifold — Figure 1701
Toyota COROLLA EPC diagram 1701, Manifold, with 6 images and 55 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04175 | Turbocharger gasket assembly | 04175-11020 · 04175-55010 |
| 04176 | Turbocharger seal assembly | 04176-70010 · 04176-70011 |
| 15407 | Turbine oil inlet pipe sub-assembly | 15407-11010 · 15407-55010 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 90401-10006 · 90401-14091 |
| 15407B | Gasket (for turbine oil inlet pipe) | 90430-10035 · 90430-14006 · 90430-14235 |
| 15407C | O-ring (for turbine oil pipe) | 90301-23007 · 96732-19023 |
| 15471 | Turbine oil inlet pipe gasket | 15471-35010 · 15471-54010 |
| 15474A | Turbine oil outlet hose | 90910-05188 |
| 15474B | Clamp or clip (for turbine oil outlet hose) | 90467-26003 |
| 16265 | Intake manifold water hose | 16265-11010 · 16265-11020 |
| 16265A | Hose clamp or clip (for intake manifold water hose) | 90467-21001 |
| 16347 | water bypass liner | 16347-28010 · 16347-42020 |
| 17021 | Bearing shell sub-assembly | 17021-55020 · 17021-70020 |
| 17021A | Stud bolts (for bearing housing) | 90116-08158 |
| 17021B | Stud bolt | 90116-06048 |
| 17021C | Hole snap ring (for bearing housing) | 90521-99035 |
| 17025A | Stud bolts (for turbine housing) | 90116-08200 |
| 17110A | Vacuum hose connector | 90404-53042 |
| 17111 | Intake Manifold | 17101-11093 · 17101-11100 · 17101-11160 · 17101-11170 · 17101-11180 · 17101-55010 |
| 17111A | No. 1 screw plug | 90344-53015 · 90345-51025 |
| 17111B | No. 2 screw plug | 90341-22006 |
| 17111X | No. 1 sealing plug (for intake manifold) | 96411-42500 |
| 17111Y | No. 2 sealing plug (for intake manifold) | 96411-42800 |
| 17113 | intake pipe | 25541-11010 |
| 17118 | Manifold stays | 17118-11080 · 17118-11090 · 17118-55010 |
| 17141 | exhaust manifold | 17141-11010 · 17141-11060 · 17141-11070 · 17141-11160 · 17141-55010 |
| 17141G | Stud bolts (for turbocharger) | 90116-10087 · 90116-10121 |
| 17149 | Exhaust manifold extension | 17149-11010 |
| 17151 | Studs (for manifold to carburetor) | 90116-08204 |
| 17152 | Studs (for manifold to exhaust) | 90116-10017 · 90116-10087 |
| 17159 | Studs (for manifold to cylinder head) | 90116-10131 · 90116-10132 · 92112-61040 · 92122-60822 · 92122-61028 · 92132-60825 |
| 17167 | Exhaust manifold No. 1 heat shield | 17107-11040 · 17107-11050 · 17167-11070 · 17167-11180 · 17167-55010 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-10011 · 17168-11020 · 17168-11031 · 17168-55010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-10020 · 17173-10021 · 17173-11020 · 17173-55010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-10010 · 17177-10011 · 17177-11010 · 17177-11011 · 17177-55010 · 17177-55011 · 17177-55012 |
| 17201 | Turbocharger sub-assembly | 17201-11020 · 17201-55020 |
| 17224 | compressor casing | 17224-11030 · 17224-55020 |
| 17224A | Connector (for compressor housing) | 90404-51040 · 90404-51057 |
| 17229 | V-Belt | 17229-70010 |
| 17239 | No. 2 V-shaped clamp | 17239-70010 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-11010 · 17271-55010 |
| 17277 | Compressor oil outlet gasket | 17277-11010 |
| 17278 | Gasket (turbo to exhaust manifold) | 17278-11020 · 17278-55010 |
| 17279 | Turbine outlet elbow gasket | 17279-11010 · 17279-55010 |
| 17291 | Turbine oil outlet elbow | 17291-55010 |
| 17294 | Actuator hose | 17294-11010 · 90445-12111 |
| 17294A | Clamp (for actuator hose) | 96132-30600 · 96132-41100 |
| 17296 | Bearing shell side plate | 17296-28010 |
| 17361A | Air tube (for EFI) | 17361-11040 · 17361-11050 |
| 25508 | Manifold three-way catalytic converter sub-assembly | 25508-11041 · 25508-11060 |
| 25508A | Stud bolts (for manifold three-way catalytic converter) | 90116-10087 |
| 25576 | Manifold three-way catalytic converter gasket | 25576-11020 · 25576-15010 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-11010 · 25586-11040 · 25586-11050 |
| 25587 | No. 2 manifold three-way catalytic converter vibration isolation pad | 25587-11010 · 25587-11030 · 25587-11050 |
| 25591 | Manifold bracket | 25591-11020 |
