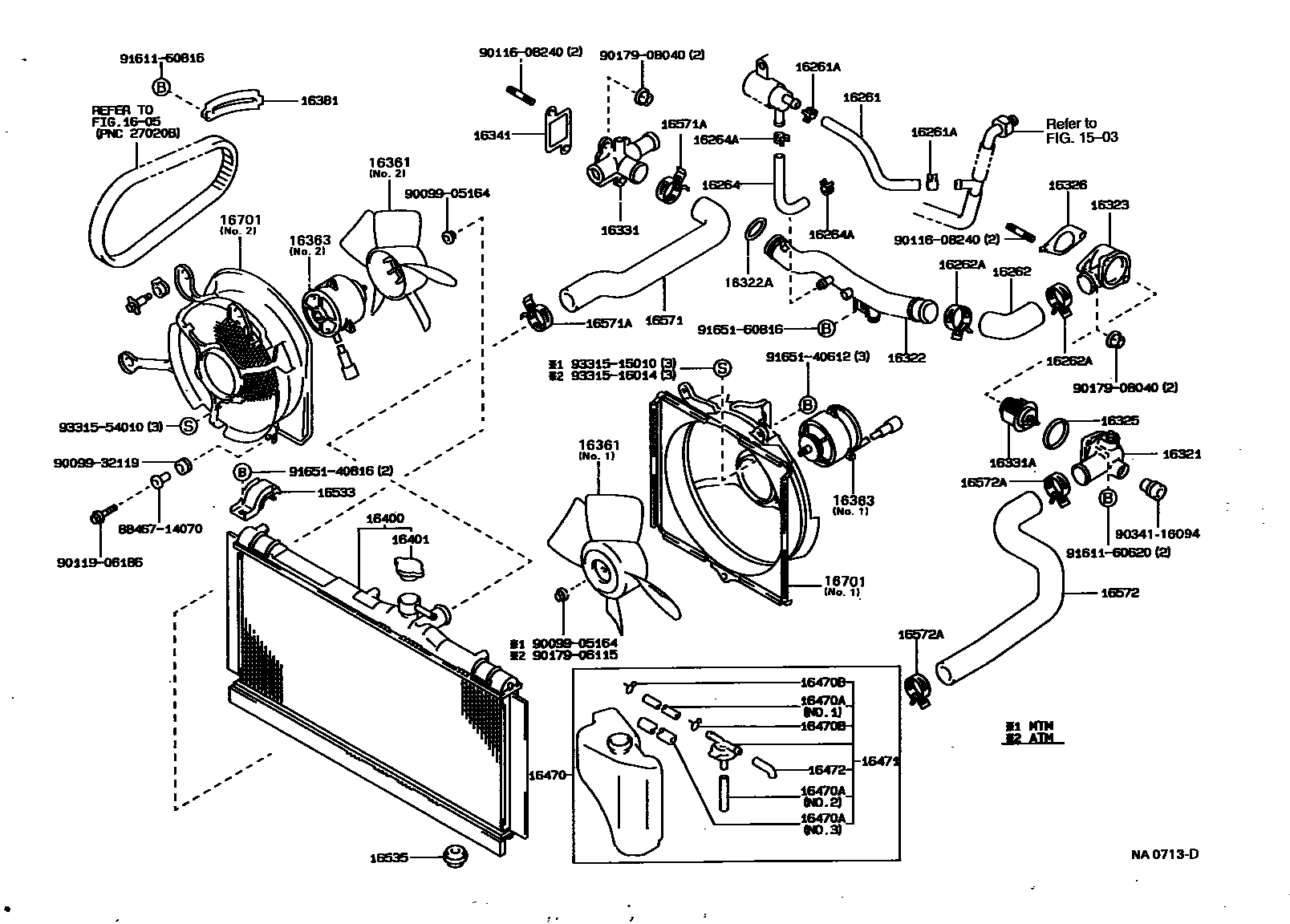

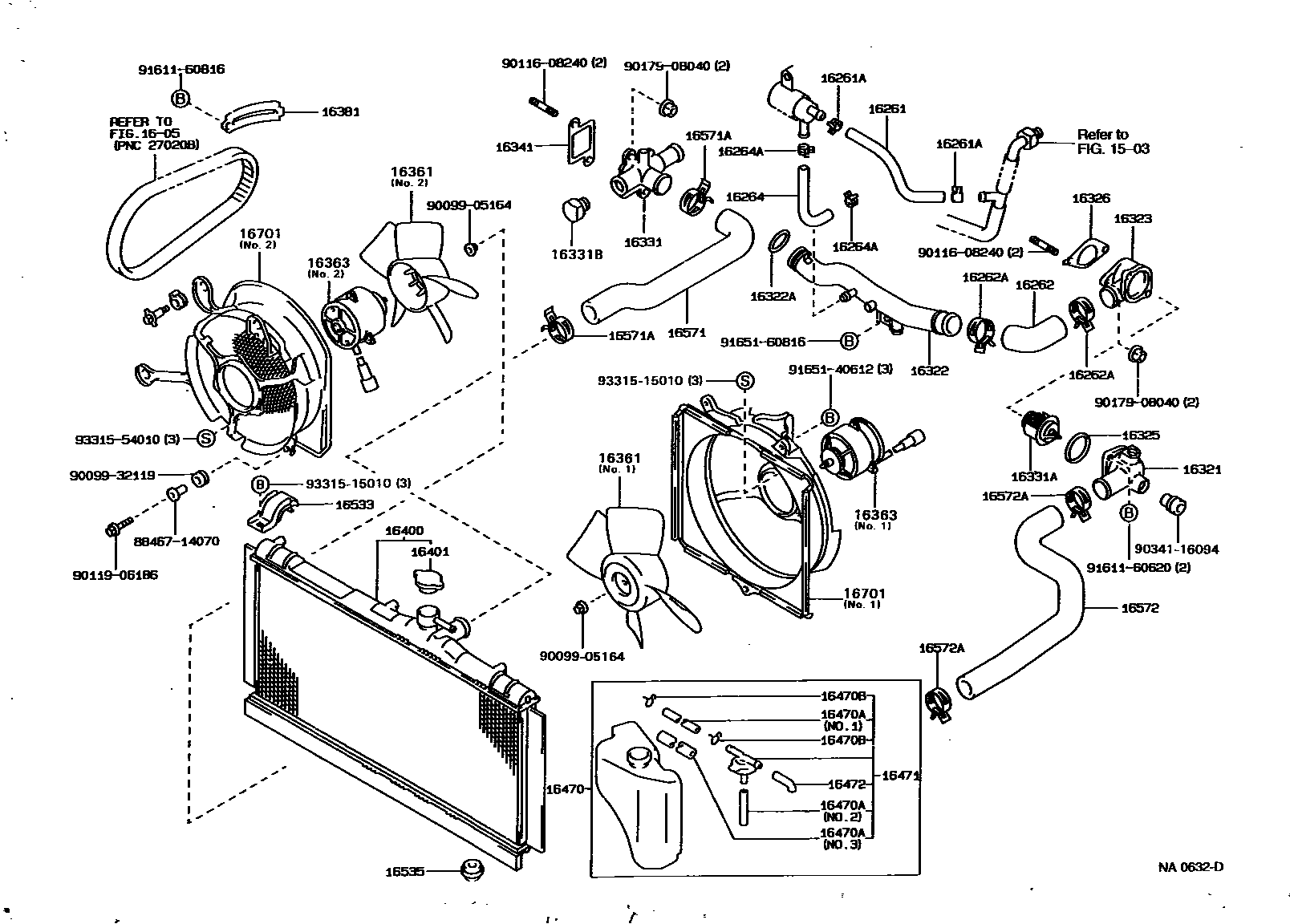

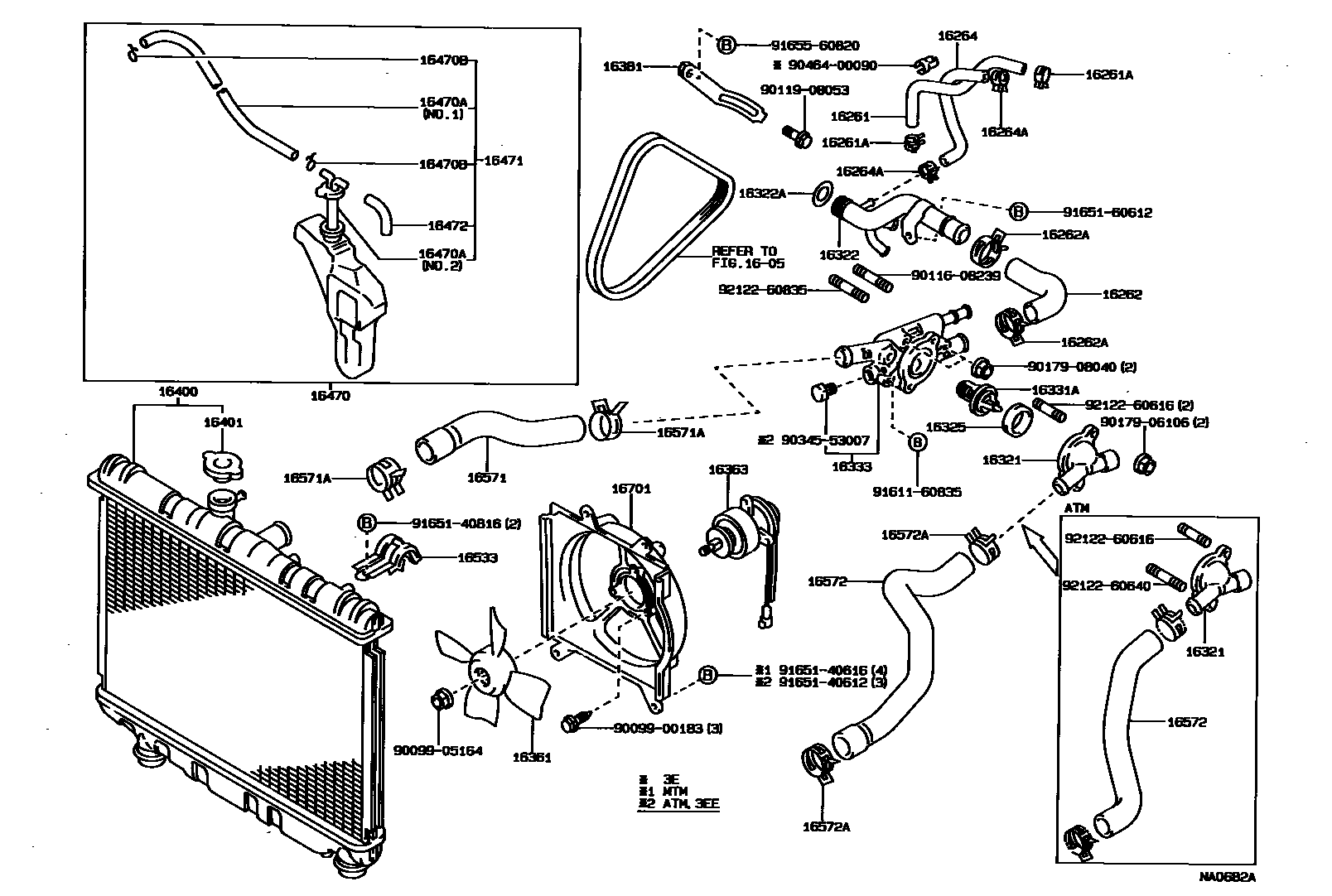

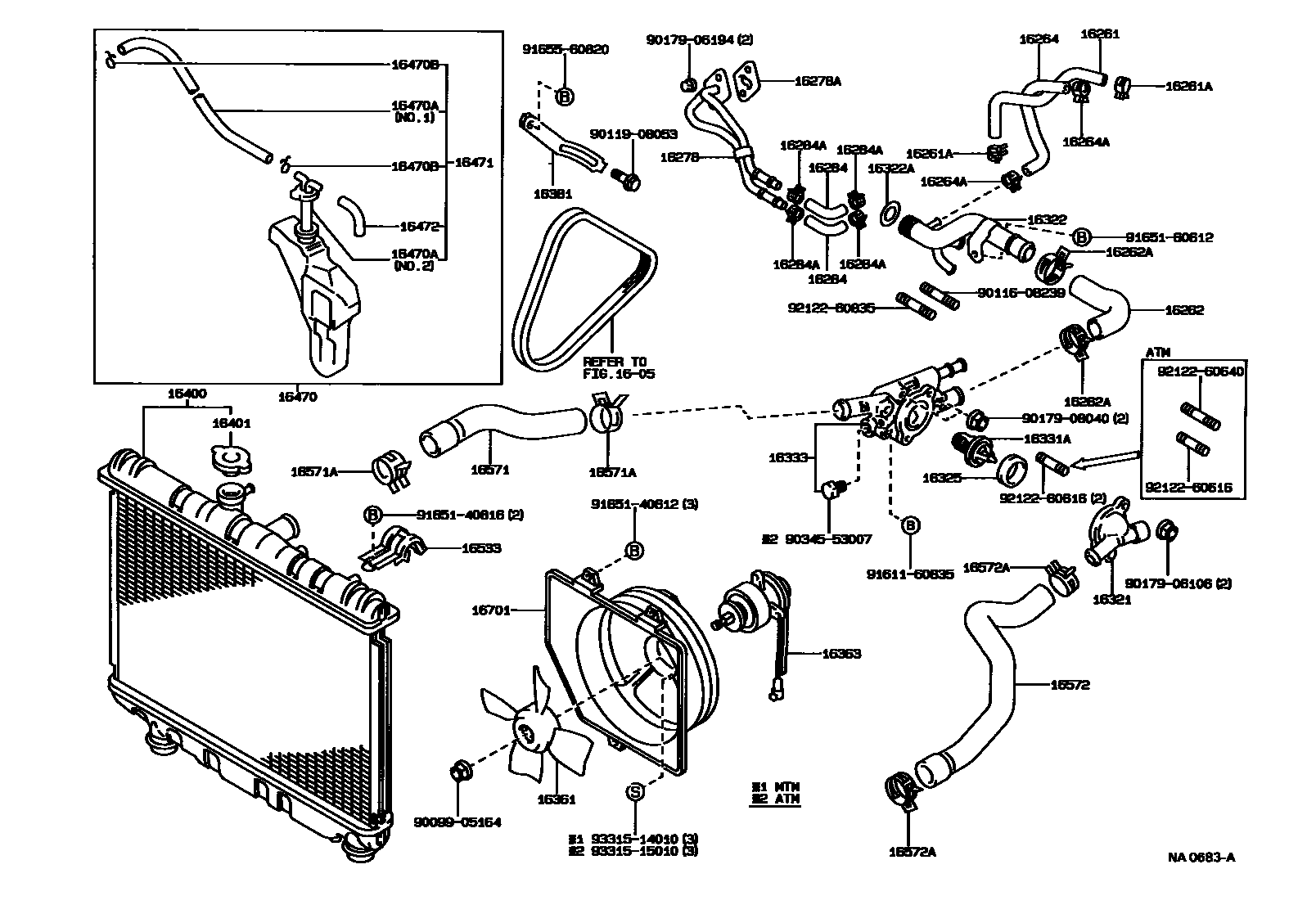

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 6 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 16261-11011 · 16261-11020 · 16261-11040 · 16261-55030 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-11009 · 90467-11049 · 90467-15004 |
| 16262 | water inlet hose | 16262-10010 · 16262-10020 · 16262-55010 |
| 16262A | Clamp (for water inlet hose) | 90467-34003 · 90467-37001 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-11010 · 16264-11031 · 16264-55010 · 99555-00200 · 99555-00270 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-11009 · 90467-11049 · 90467-15004 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-11020 |
| 16278A | water bypass liner | 16347-11010 |
| 16284 | Turbine Water Hose No. 1 | 16284-11010 |
| 16284A | Clamp (for No. 1 turbine water hose) | 90467-15004 |
| 16321 | water inlet | 16321-10011 · 16321-11011 · 16321-55010 |
| 16322 | PIPE, WATER INLET | 16322-11010 · 16322-11030 · 16322-11050 · 16322-55020 |
| 16322A | O-RING, WATER INLET | 96711-35028 · 96711-35031 |
| 16323 | HOUSING, WATER INLET | 16032-55010 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-63010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16325-55010 · 16325-55011 |
| 16331 | Water outlet | 16304-55010 |
| 16331A | thermostat | 90916-03046 |
| 16331B | Screw plug (for water outlet) | 90345-53001 |
| 16333 | Water outlet shell | 16303-10011 · 16303-11021 · 16303-11030 · 16303-11040 · 16303-11110 · 16303-11120 · 16303-11130 |
| 16341 | GASKET, WATER OUTLET | 16341-55010 · 16341-55011 |
| 16361 | Fan | 16361-55010 · 16361-55020 · 16361-55030 · 16361-63020 · 16361-63040 · 16361-64010 |
| 16363 | cooling fan motor | 16363-10010 · 16363-15080 · 16363-16010 · 16363-16020 · 16363-55010 · 16363-64051 |
| 16381 | Fan belt adjustment lever | 16381-11020 · 16381-11030 · 16381-55010 |

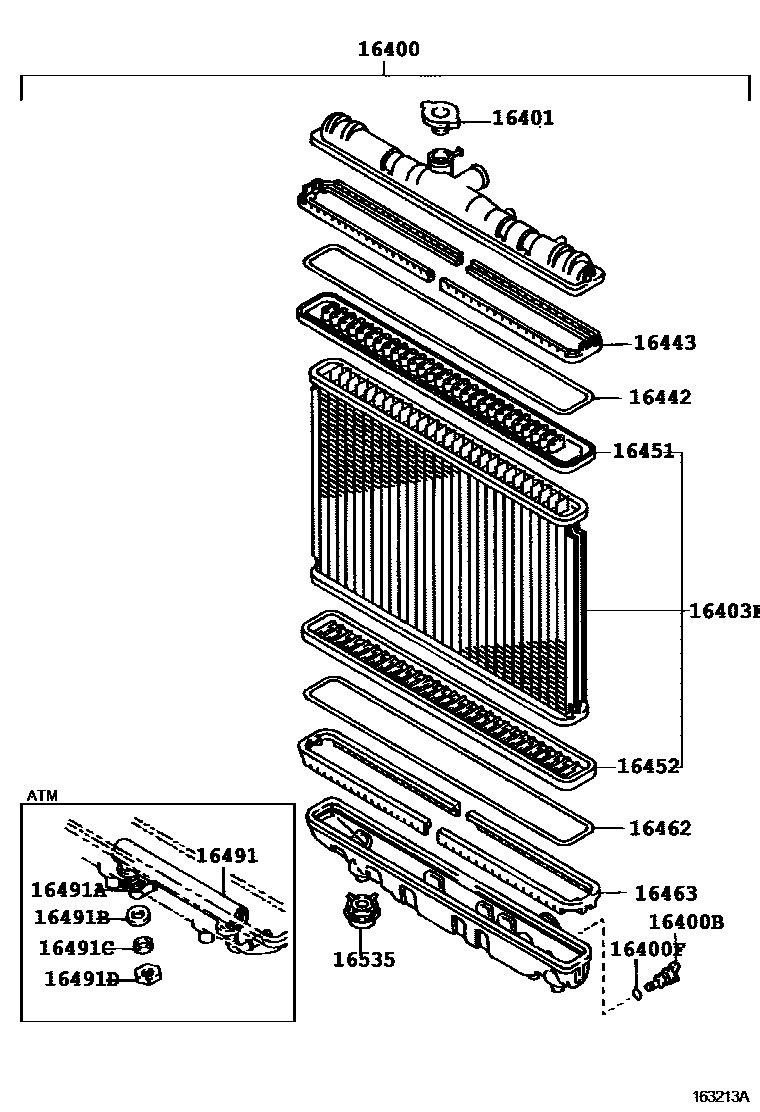

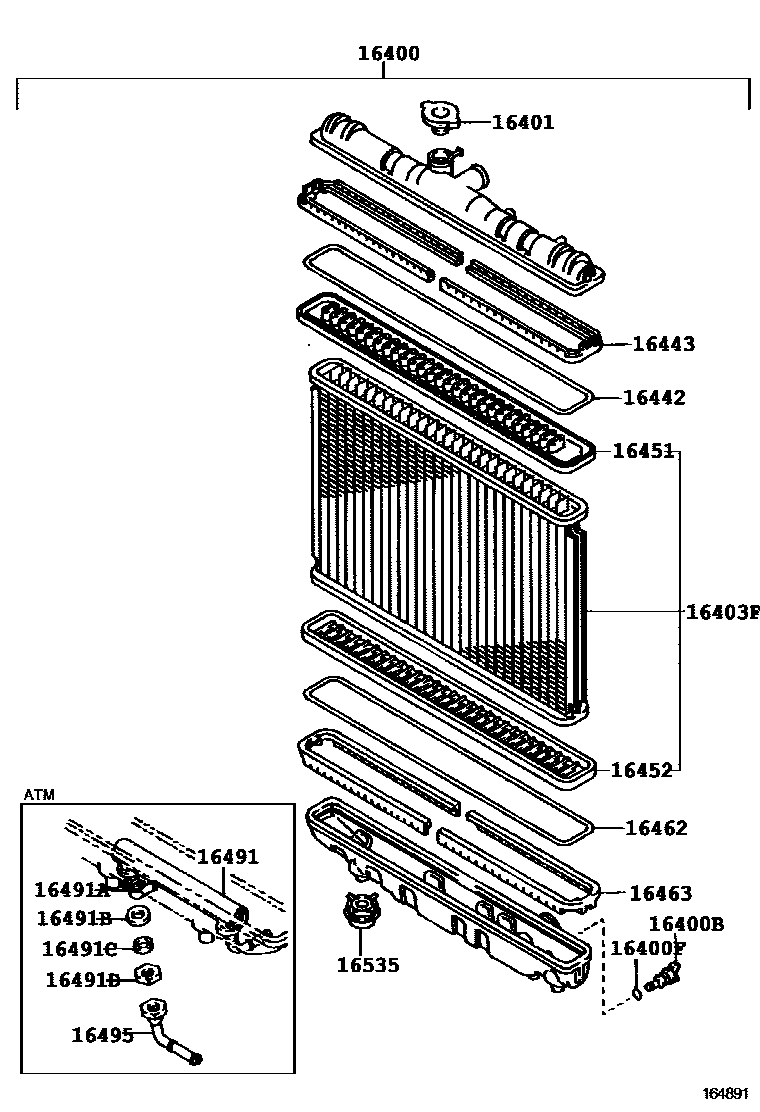

| 16400 | Radiator assembly | 16400-11140 · 16400-11160 · 16400-11260 · 16400-11270 · 16400-11280 · 16400-11290 · 16400-55050 · 16400-55060 |
| 16400B | Radiator drain switch screw plug | 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-63010 |
| 16403F | Radiator core sub-assembly | 16403-11120 · 16403-11250 · 16403-11260 · 16403-11290 · 16403-55010 |
| 16442 | O-ring (for radiator tank) | 16442-63030 · 16462-63030 |
| 16443 | Radiator upper tank locking plate | 16443-15321 · 16463-15320 |
| 16451 | Radiator core upper plate | 16451-63030 · 16452-11090 · 16452-64070 |
| 16452 | Radiator core lower plate | 16452-11090 · 16452-63030 · 16452-64070 |
| 16462 | O-ring (for radiator lower tank) | 16462-15120 · 16462-63030 |
| 16463 | Radiator lower tank locking plate | 16463-15270 · 16463-15320 |
| 16470 | Radiator reservoir assembly | 16470-11010 · 16470-55010 |
| 16470A | Hoses or tubes (for radiator reservoir) | 85338-70070 · 90445-12078 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-11010 · 16405-55010 |
| 16472 | Breather hose | 85338-12020 · 85338-74040 |
| 16491 | Oil cooler (for ATM) | 16491-11270 · 16491-55020 · 16491-74130 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-35080 · 16492-62060 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-15130 |
| 16491C | Spring washer (for automatic transmission oil cooler) | 16494-15130 |
| 16491D | Nut (for automatic transmission oil cooler) | 16496-15130 |
| 16495 | Oil line nut (for automatic transmission oil cooler) | 16495-15130 |
| 16533 | Radiator upper bracket | 16505-11041 · 16505-11060 · 16505-11070 · 16533-55011 |
| 16535 | Radiator lower support | 16535-11020 · 16535-55010 · 16535-55020 |
| 16571 | Radiator water inlet hose | 16571-11030 · 16571-11071 · 16571-55010 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-31001 · 90467-31003 · 90467-34001 |
| 16572 | Radiator outlet hose | 16572-11070 · 16572-11090 · 16572-11150 · 16572-11160 · 16572-55010 · 16572-55020 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-31003 · 90467-34001 · 90467-34003 |
| 16701 | Fan cover sub-assembly | 16711-11080 · 16711-11090 · 16711-11110 · 16711-11120 · 16711-11130 · 16711-11131 · 16711-55010 · 16711-55030 · 16711-55070 |
