Toyota COROLLA Water Pump — Figure 1601

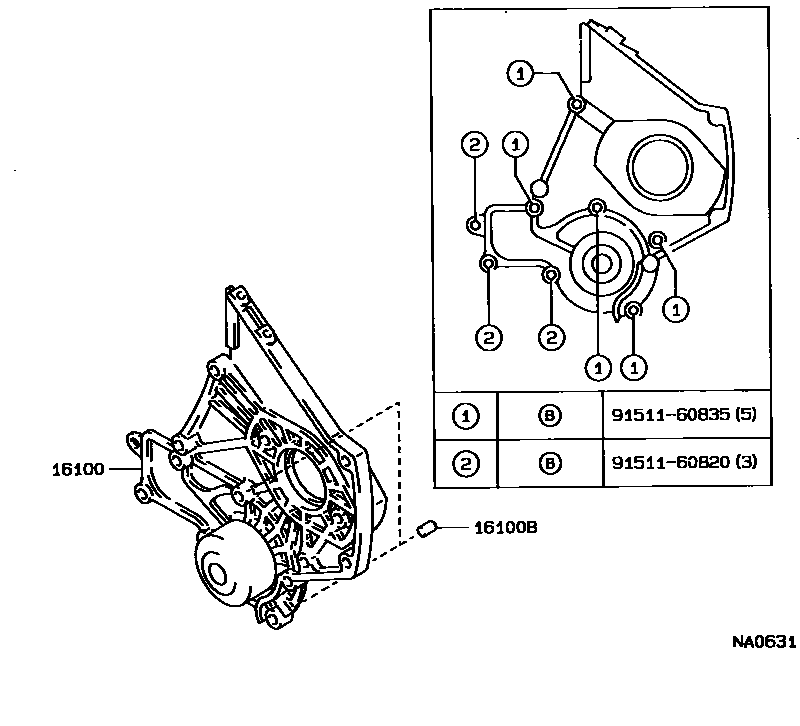

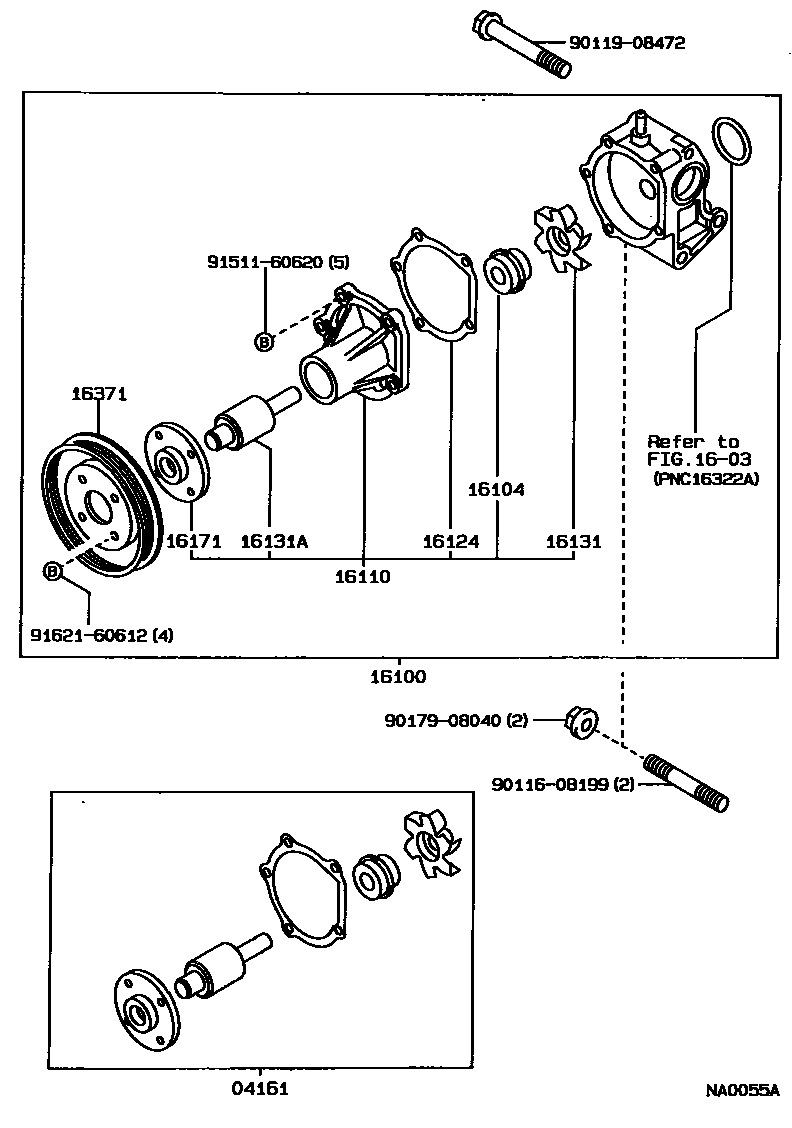

Toyota COROLLA EPC diagram 1601, Water Pump, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04161 | Water pump components | 04161-10010 · 04161-10020 |
| 16100 | Engine water pump assembly | 16100-19126 · 16100-19195 · 16100-19225 · 16100-55011 |
| 16100B | Ring pin (for water pump assembly) | 90253-11021 |
| 16104 | Water pump seal components | 16104-15020 · 16104-70010 |
| 16110 | Water pump assembly without coupling | 16110-19065 · 16110-19095 · 16110-19105 |
| 16124 | water pump cover gasket | 16124-10010 · 16124-10012 |
| 16131 | water pump rotor | 16131-15050 · 16131-15080 |
| 16131A | water pump bearings | 90369-30064 |
| 16171 | water pump pulley seat | 16171-10012 · 16171-15050 |
| 16371 | fan pulley | 16173-10011 · 16173-10012 |
