Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 3 images and 7 PNC and OE references.

Toyota COROLLA Oil Filter EPC diagram — 150460
Oil Filter — 150460 (198805 – 999999)
Toyota COROLLA Oil Filter EPC diagram — NA0629
Oil Filter — NA0629 (198805 – 999999)

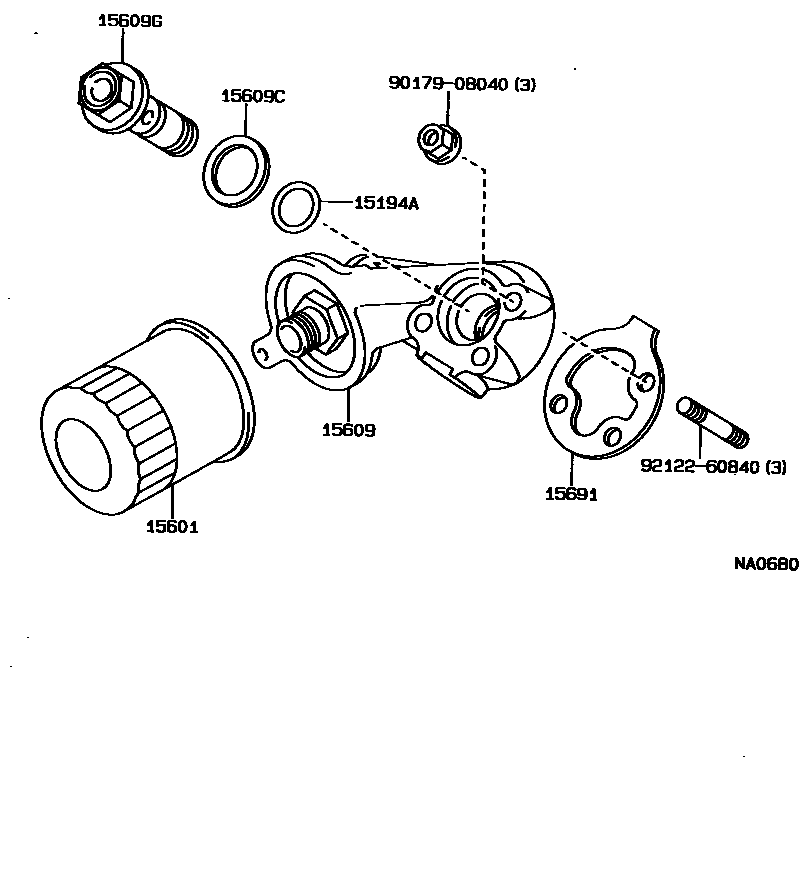

Toyota COROLLA Oil Filter EPC diagram — NA0680
Oil Filter — NA0680 (198805 – 999999)

PNC and OE references

PNCPart nameOE numbers
15194AO-ring96721-24015
15600AConnector (for oil filter)90404-19007
15601Oil filter sub-assembly15600-25010 · 90915-03001
15609Oil filter bracket sub-assembly15677-11011
15609CGasket (for oil filter holder connector)90430-24004 · 90430-24008
15609GConnector bolt (for oil filter bracket)90401-19001
15691oil filter gasket15692-11010 · 15692-11011
