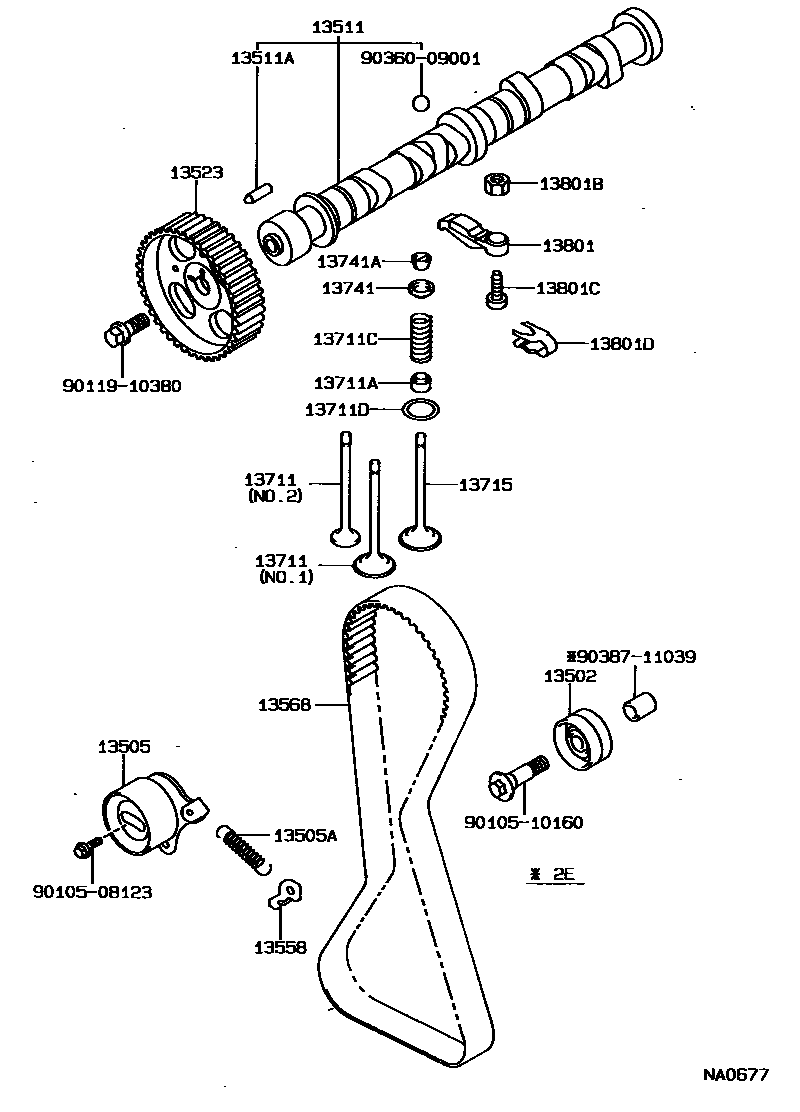

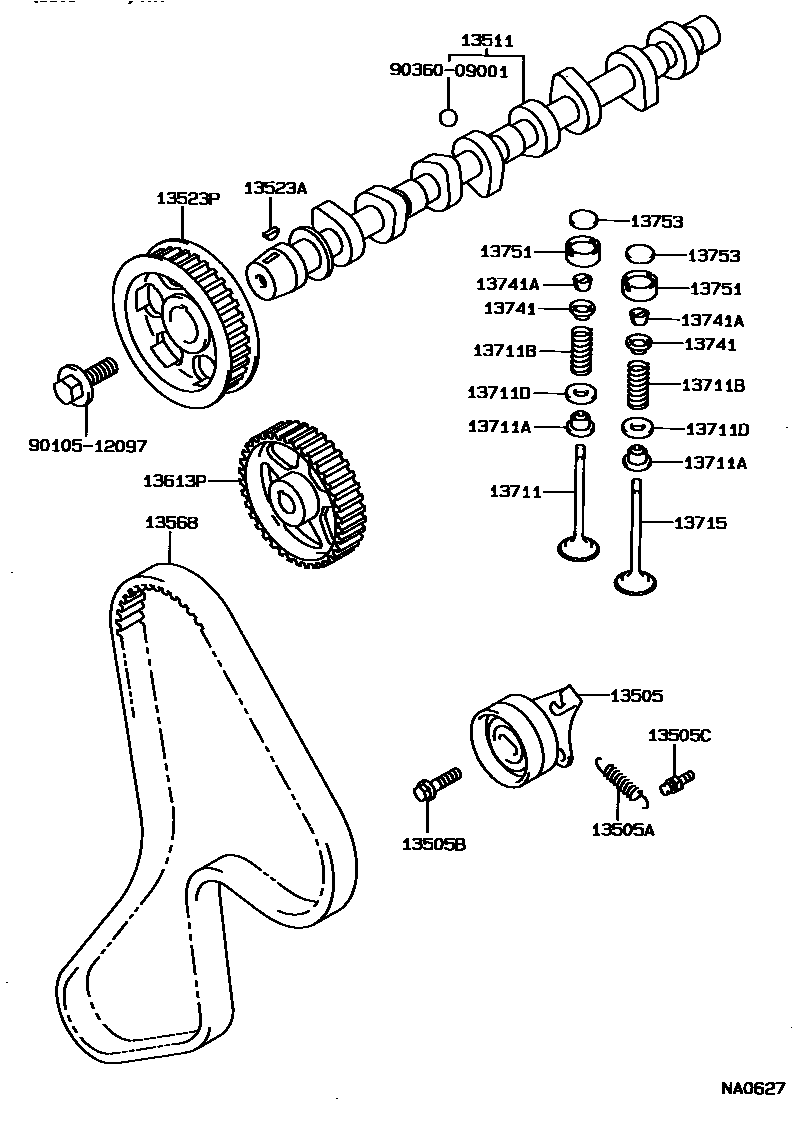

Toyota COROLLA Camshaft & Valve — Figure 1302
Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13502 | No. 2 timing belt idler pulley sub-assembly | 13503-10011 · 13503-11010 |
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-11010 · 13505-55020 |
| 13505A | Tension spring (for idler pulley) | 90506-16050 · 90506-18059 · 90506-19002 |
| 13505B | Flange bolts (for idler gear) | 90119-08449 |
| 13505C | Pin (for idler tension spring) | 13575-55010 |
| 13511 | camshaft | 13501-10010 · 13501-11010 · 13501-55020 |
| 13511A | Direct pin (for camshaft locking pin) | 90250-05121 |
| 13523 | Camshaft timing gear or sprocket | 13523-10040 · 13523-11010 |
| 13523A | Half-moon pin (for timing gear) | 90280-05004 |
| 13523P | Camshaft timing pulley | 13051-64011 |
| 13558 | Spring bracket (for idler pulley) | 13558-11010 |
| 13568 | timing belt | 13568-11031 · 13568-11032 · 13568-11051 · 13568-11052 · 13568-55010 |
| 13613P | Fuel injection pump drive pulley | 13613-64011 |
| 13711 | intake valve | 13711-10020 · 13711-55010 · 13712-10010 · 13712-11020 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02062 · 90913-02071 |
| 13711B | Compression spring (for inner side) | 90501-35014 |
| 13711C | Compression spring (for outside) | 90501-35011 |
| 13711D | Flat washer (for valve spring seat) | 90201-19008 |
| 13715 | exhaust valve | 13715-10030 · 13715-55010 |
| 13741 | Valve spring seat ring | 13741-10020 |
| 13741A | Valve spring seat lock plate | 90913-03021 |
| 13751 | valve lifter | 13751-55010 |
| 13753 | valve adjustment gasket | 13753-55010 · 13753-55030 · 13753-55050 · 13753-55070 · 13753-55090 · 13753-55110 · 13753-55130 · 13753-55150 · 13753-55170 · 13753-55190 · 13753-55210 · 13753-55230 · 13753-55250 · 13753-55270 · 13753-55290 · 13753-55310 · 13753-55330 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13811-10021 |
| 13801B | Hex nut (for valve adjustment) | 90170-07004 |
| 13801C | valve adjustment screw | 13788-10013 |
| 13801D | Compression spring (for rocker arm) | 13935-10010 |
