Toyota COROLLA Cylinder Block — Figure 1105

Toyota COROLLA EPC diagram 1105, Cylinder Block, with 2 images and 22 PNC and OE references.

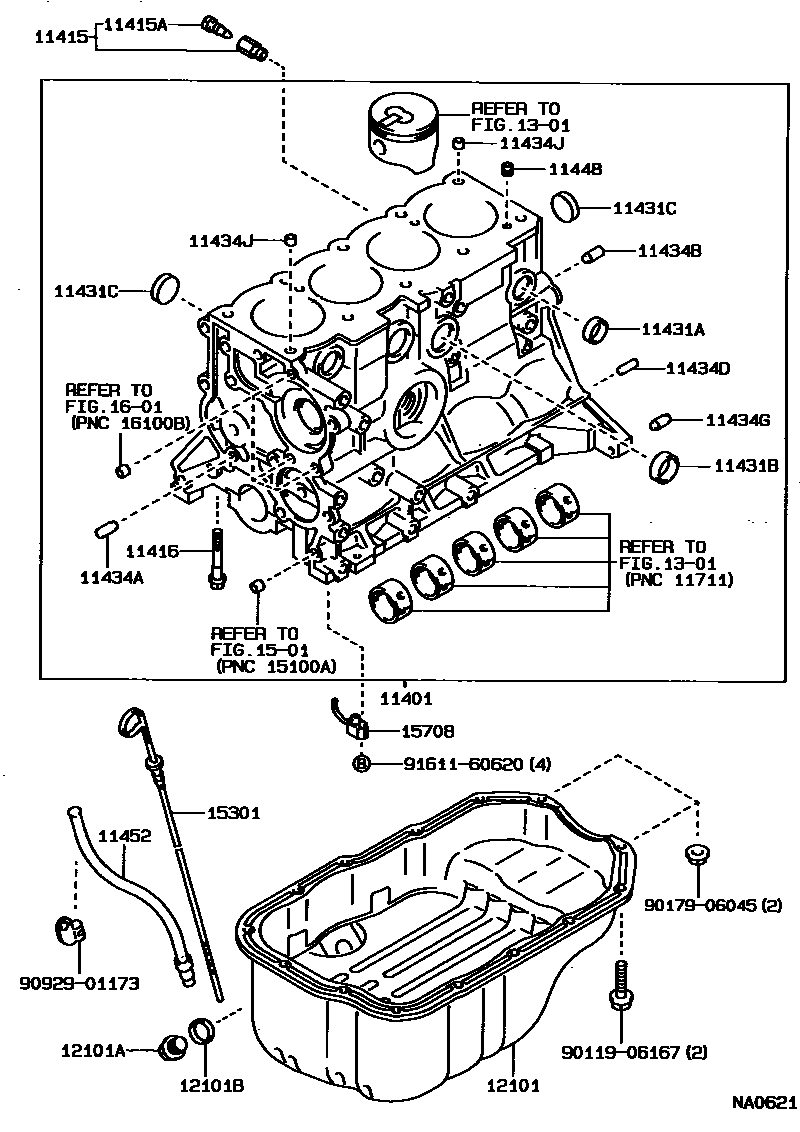

Toyota COROLLA Cylinder Block EPC diagram — NA0621
Cylinder Block — NA0621 (198805 – 999999)

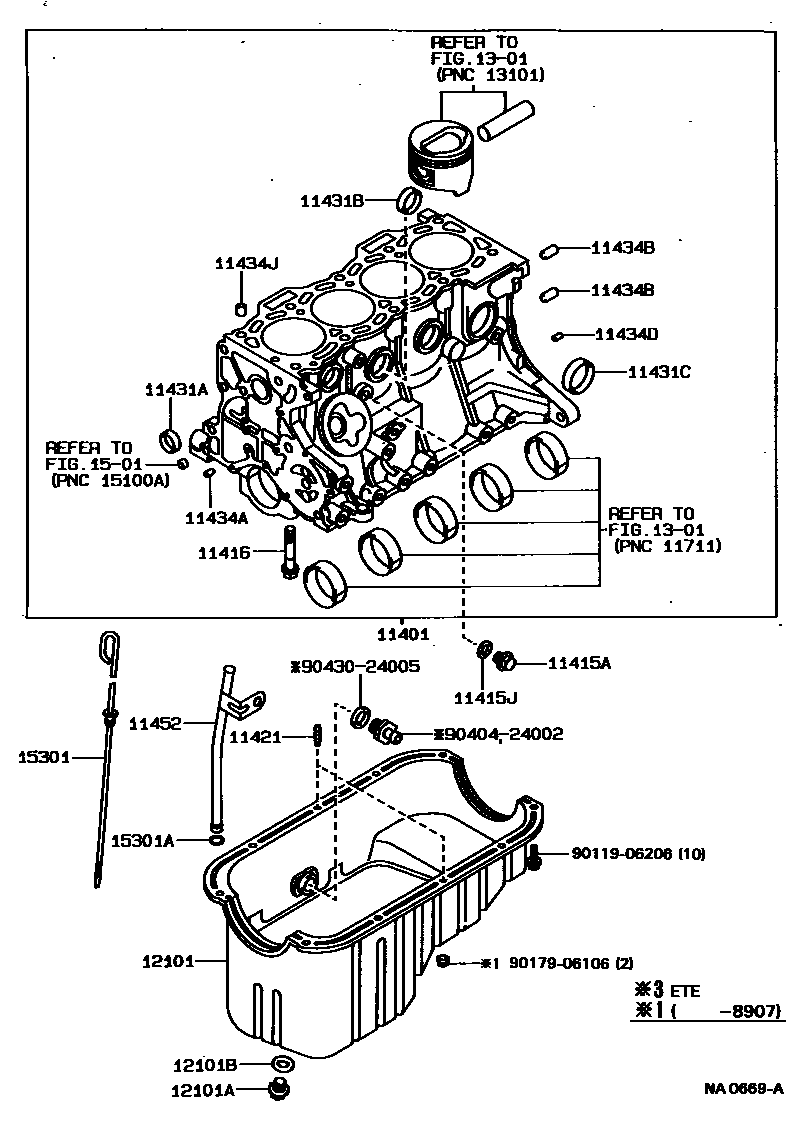

Toyota COROLLA Cylinder Block EPC diagram — NA0669A
Cylinder Block — NA0669A (198805 – 999999)

PNC and OE references

PNCPart nameOE numbers
11401Cylinder block sub-assembly11401-19298 · 11401-19299 · 11401-19308 · 11401-19309 · 11401-19365 · 11401-19366 · 11401-19367 · 11401-19375 · 11401-19376 · 11401-19377 · 11401-19535 · 11401-19545 · 11401-59326 · 11401-59327
11415Water release switch sub-assembly (for cylinder block)90910-09088
11415AWater drain switch screw plug (for cylinder block)90341-12012 · 90910-09087
11415JGasket (for drain switch)90430-13002
11416Bolts (for crankshaft bearing cap assembly)90105-10007 · 90105-10153 · 90910-02019
11421Stud bolts (for oil pan)90116-06014
11431ANo. 1 sealing plug (for cylinder block)96411-42000 · 96411-42500
11431BNo. 2 sealing plug (for cylinder block)96411-43000
11431CNo. 3 sealing plug (for cylinder block)96411-43500
11434ADirect sales (for timing gear cover assembly)90250-06003 · 90250-06068
11434BDirect sales (for clutch housing assembly)90250-10017 · 90253-15003
11434DDirect sales (for engine rear oil seal)90250-06068 · 90253-10005
11434GDirect sales (for end plates)90253-15001
11434JRing pin (for cylinder head assembly)90253-12001 · 90253-14001
11448Cylinder block oil orifice11448-55010
11452Engine oil level gauge guide11452-10010 · 11452-11050 · 11452-55010
12101Oil pan sub-assembly12101-10010 · 12101-11030 · 12101-11040 · 12101-55010
12101AScrew plug (for draining oil from the oil pan)90341-12012
12101BGasket (for oil pan drain plug)90430-12019 · 90430-12027
15301Engine oil level scoring assembly15301-10021 · 15301-10022 · 15301-11010 · 15301-11020 · 15301-11021 · 15301-11030 · 15301-55010
15301AO-ring (for engine oil level gauge)96711-19010
15708No. 1 oil nozzle sub-assembly15790-55010
