Toyota COROLLA Cylinder Head — Figure 1104

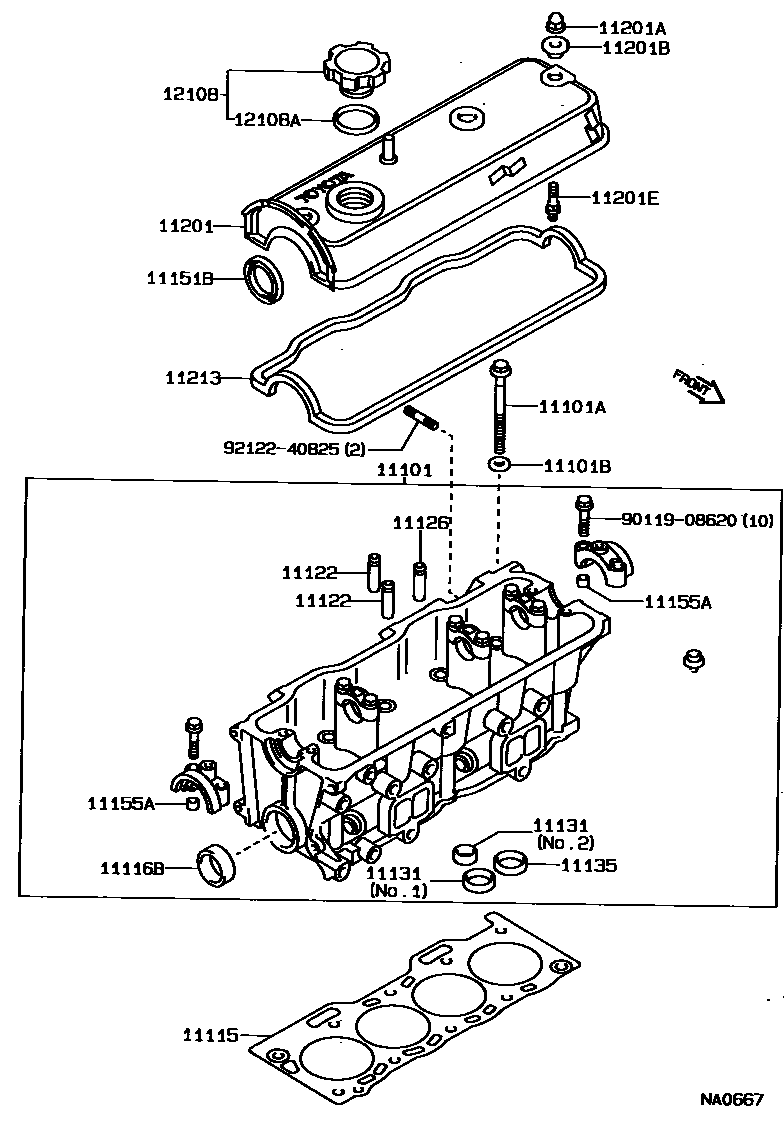

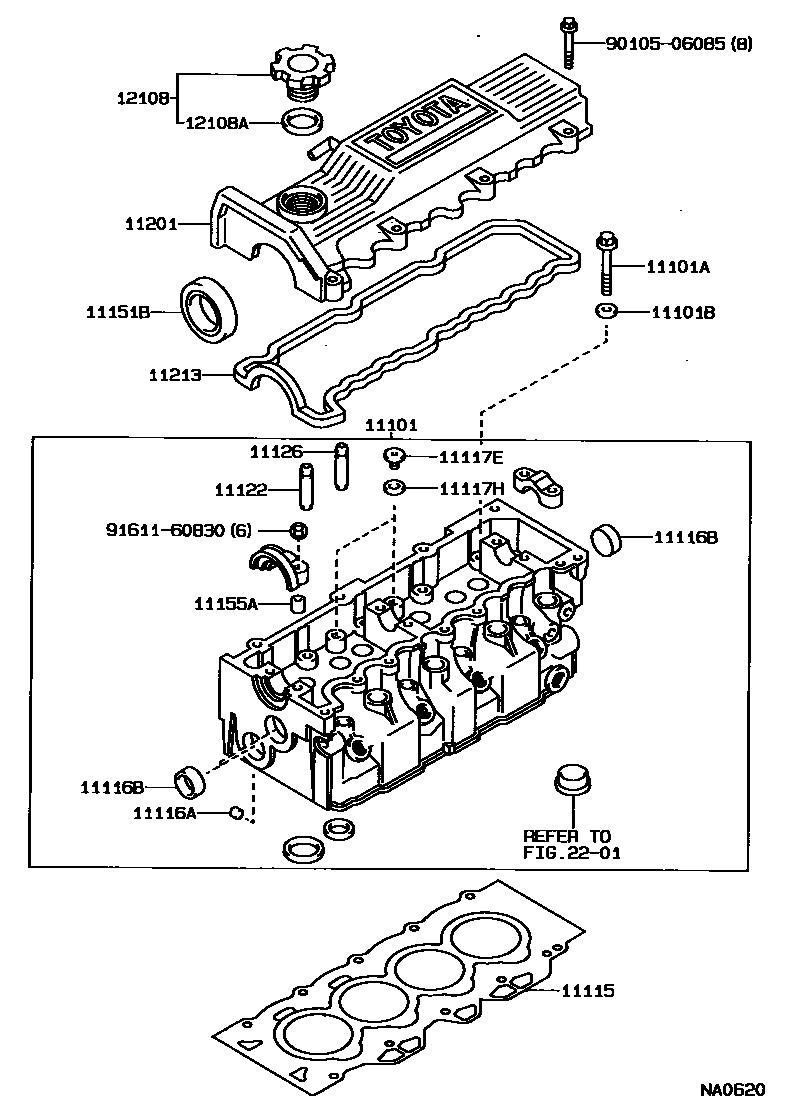

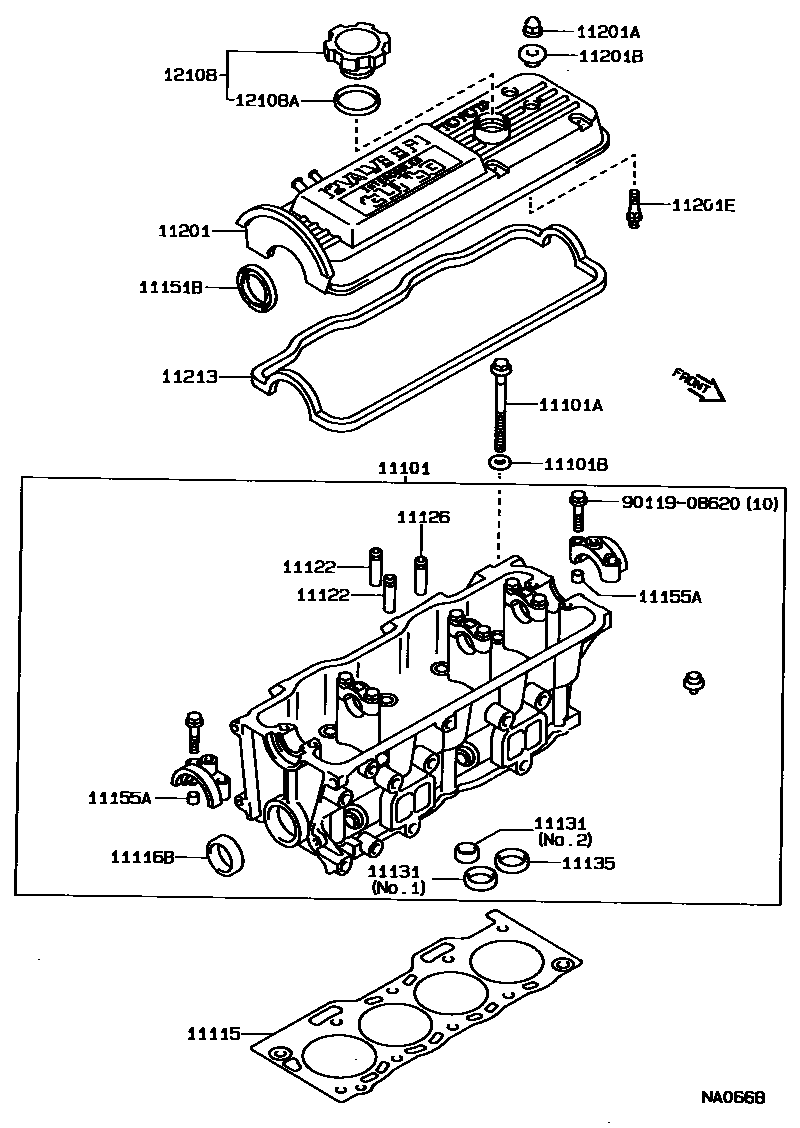

Toyota COROLLA EPC diagram 1104, Cylinder Head, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-19146 · 11101-19156 · 11101-19185 · 11101-19195 · 11101-19295 · 11101-55010 · 11101-55040 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90105-09002 · 90105-11022 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-09015 · 90201-11016 |
| 11115 | GASKET, CYLINDER HEAD | 11115-11010 · 11115-11030 |
| 11116A | No. 1 sealing plug | 90331-08004 |
| 11116B | No. 2 sealing plug | 96411-12800 · 96411-44000 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-18023 |
| 11117H | Gasket (for coolant hole) | 90430-18008 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-10040 · 11122-16020 · 11123-10040 · 11123-16020 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-10040 · 11122-16020 · 11123-10040 · 11123-16020 |
| 11131 | intake valve seat | 11131-10020 · 11131-11010 · 11132-10020 · 11132-11010 · 11137-10010 · 11137-11020 · 11138-10010 · 11138-11020 |
| 11135 | Exhaust valve seat | 11135-10020 · 11135-11010 · 11136-10020 · 11136-11010 |
| 11151B | OIL SEAL (FOR CAMSHAFT SETTING) | 90311-35013 · 90311-35017 · 90311-38025 · 90311-38041 |
| 11155A | PIN, RING W/HEAD | 90253-11021 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-10010 · 11201-11010 · 11201-55010 |
| 11201A | Cap nut (for cylinder head cover) | 90176-06012 · 90176-08007 |
| 11201B | Gasket (for cylinder head cover) | 90210-06008 · 90210-09001 |
| 11201E | Studs (for cylinder head cover assembly) | 90109-08139 · 90116-08190 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-10010 · 11213-11020 · 11213-55010 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-11020 · 12180-13030 · 12180-55010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 12195-71020 · 90430-37004 · 90430-37140 |
