Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

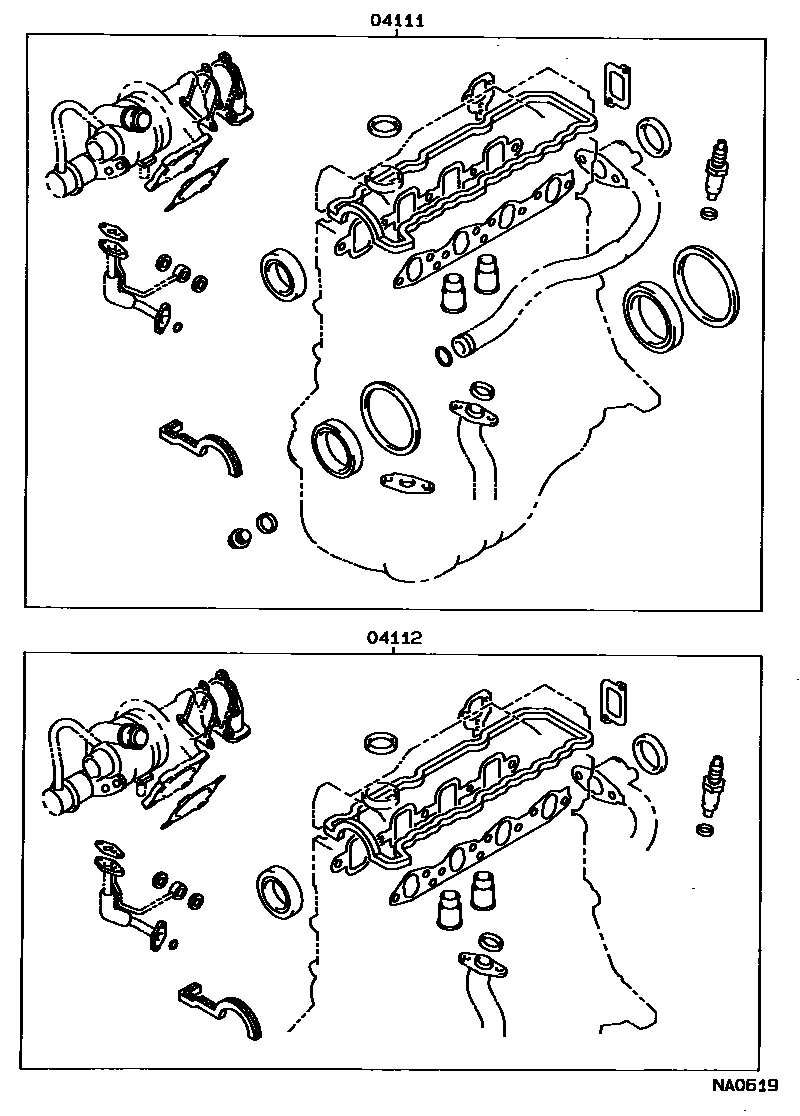

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — NA0619
Engine Overhaul Gasket Kit — NA0619 (198805 – 999999)

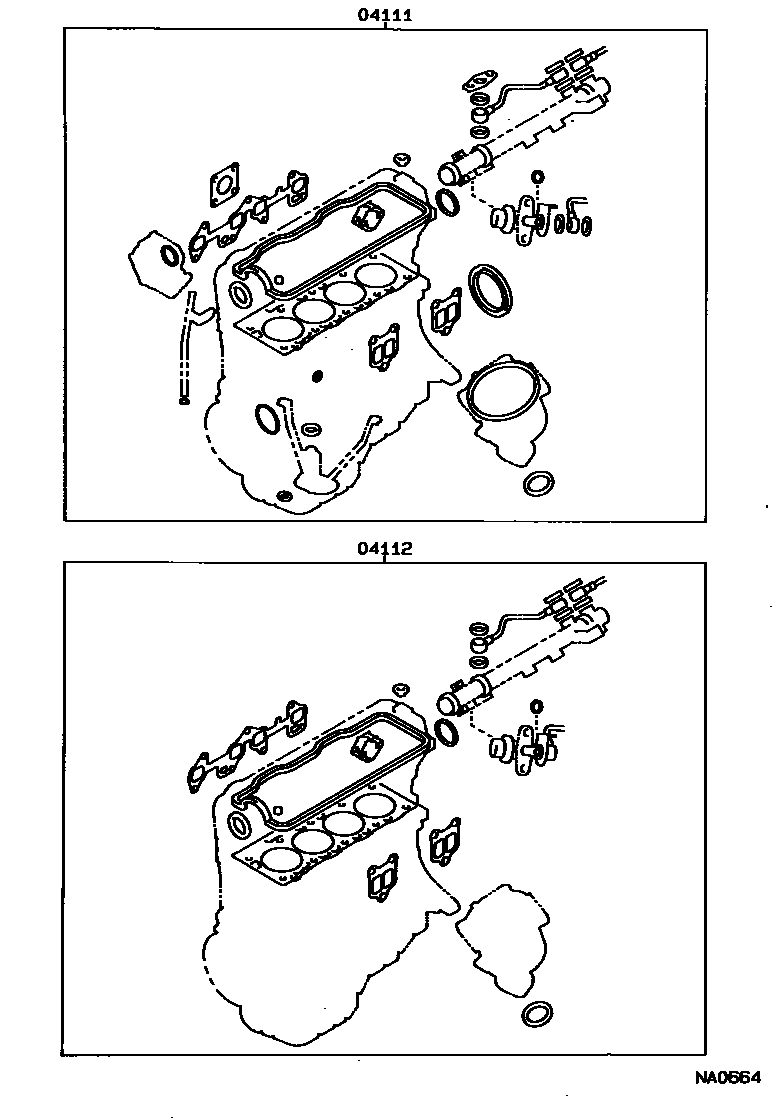

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — NA0664
Engine Overhaul Gasket Kit — NA0664 (198805 – 999999)

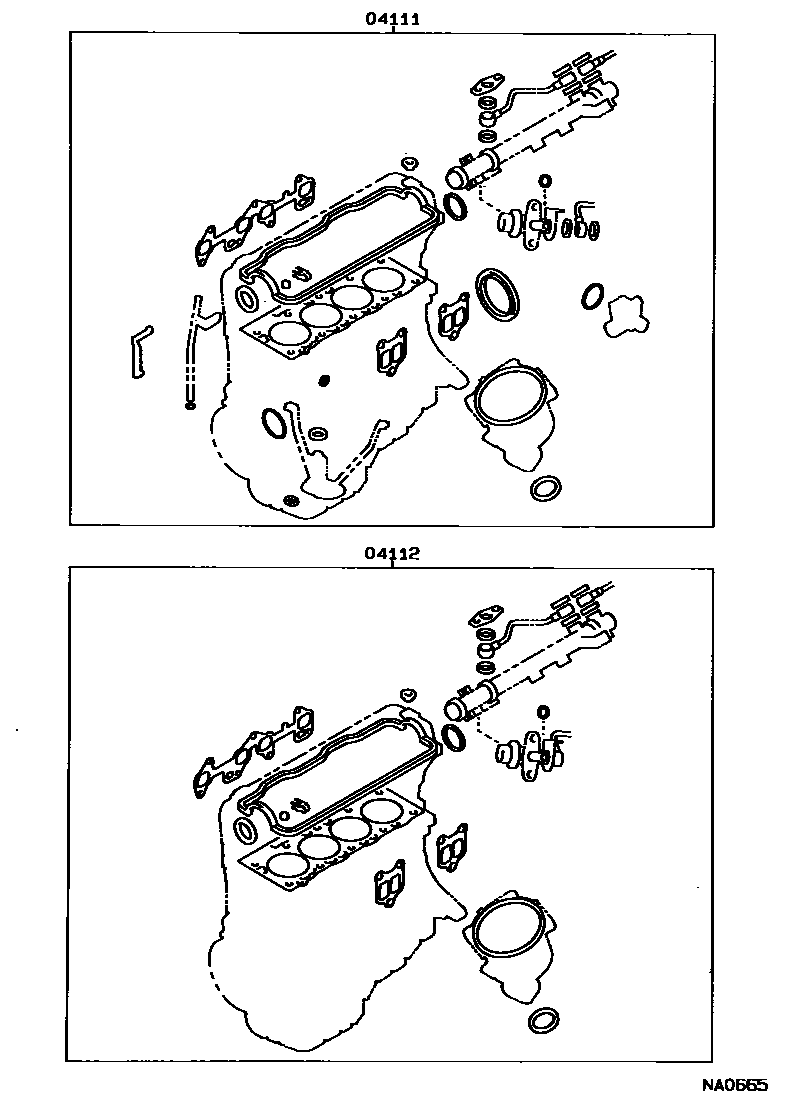

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — NA0665
Engine Overhaul Gasket Kit — NA0665 (198805 – 999999)

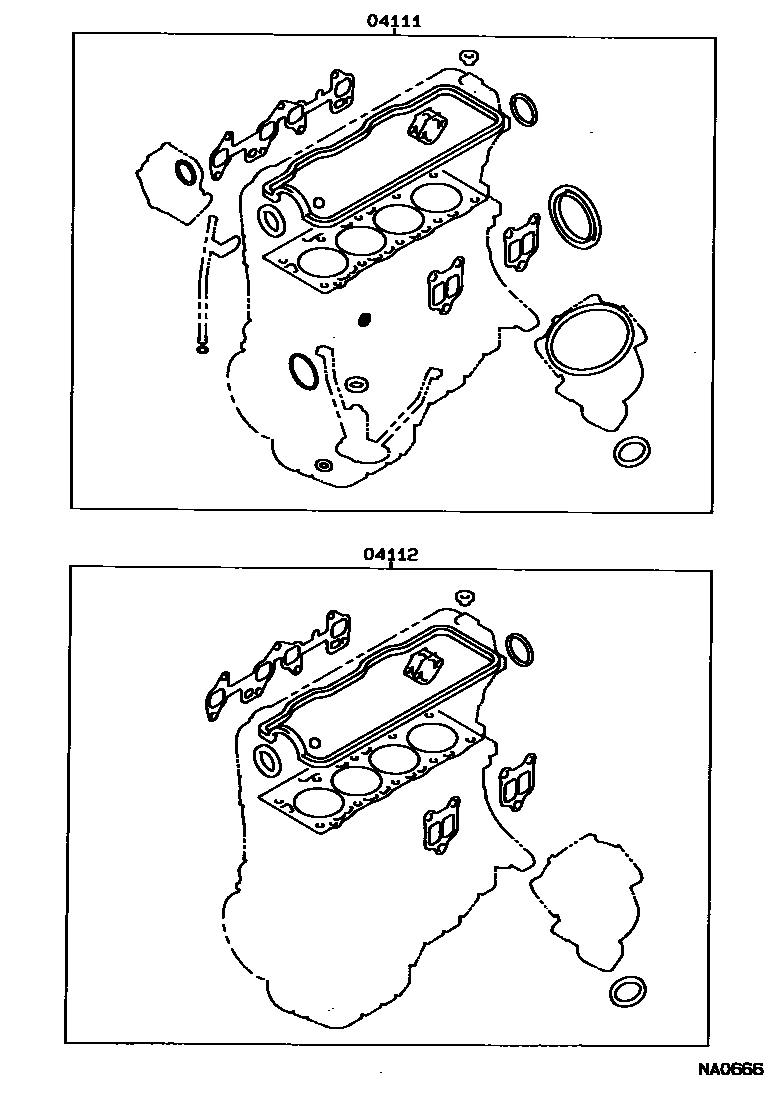

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — NA0666
Engine Overhaul Gasket Kit — NA0666 (198805 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-11021 · 04111-11022 · 04111-11023 · 04111-11051 · 04111-11052 · 04111-11060 · 04111-11061 · 04111-11070 · 04111-11071 · 04111-55010 · 04111-55011
04112Engine valve grinding pad assembly04112-11010 · 04112-11011 · 04112-11040 · 04112-11041 · 04112-11050 · 04112-11060 · 04112-55010 · 04112-55011
