Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719

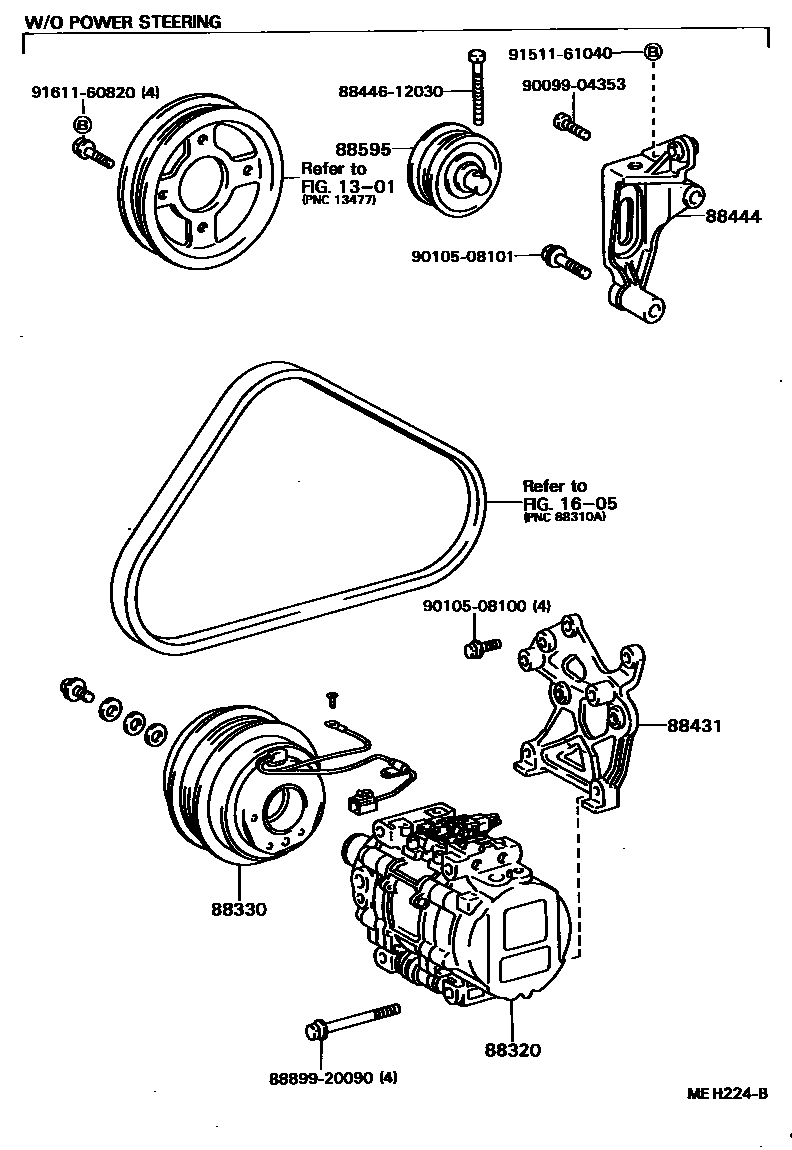

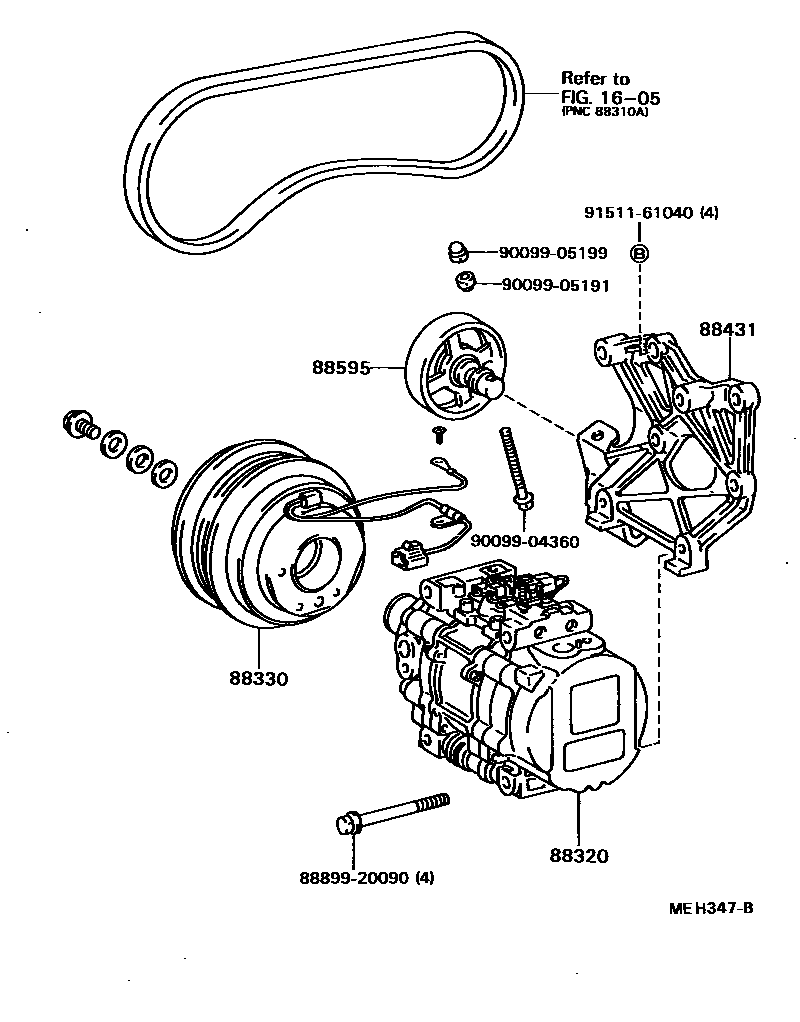

Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88320 | Cooler Compressor Assembly | 88320-16050 · 88320-16051 · 88320-16060 · 88320-16061 · 88320-16070 · 88320-16071 · 88320-16080 · 88320-16081 |
| 88330 | Magnetic Clutch Assembly | 88410-16020 · 88410-16021 · 88410-16030 · 88410-16031 · 88410-16040 · 88410-16050 |
| 88431 | Compressor No. 1 mounting bracket | 88431-16040 · 88431-16050 |
| 88444 | Idler gear bracket | 88444-10031 · 88444-16030 |
| 88595 | Cooler compressor idler pulley | 88440-12170 · 88440-16040 |
