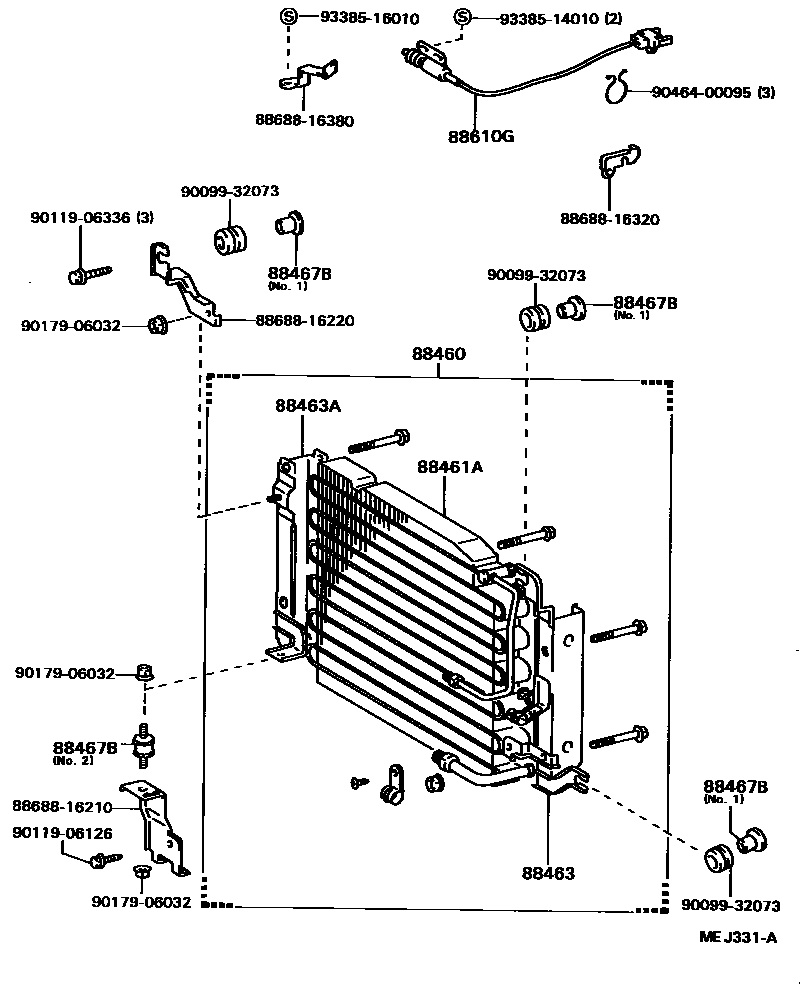

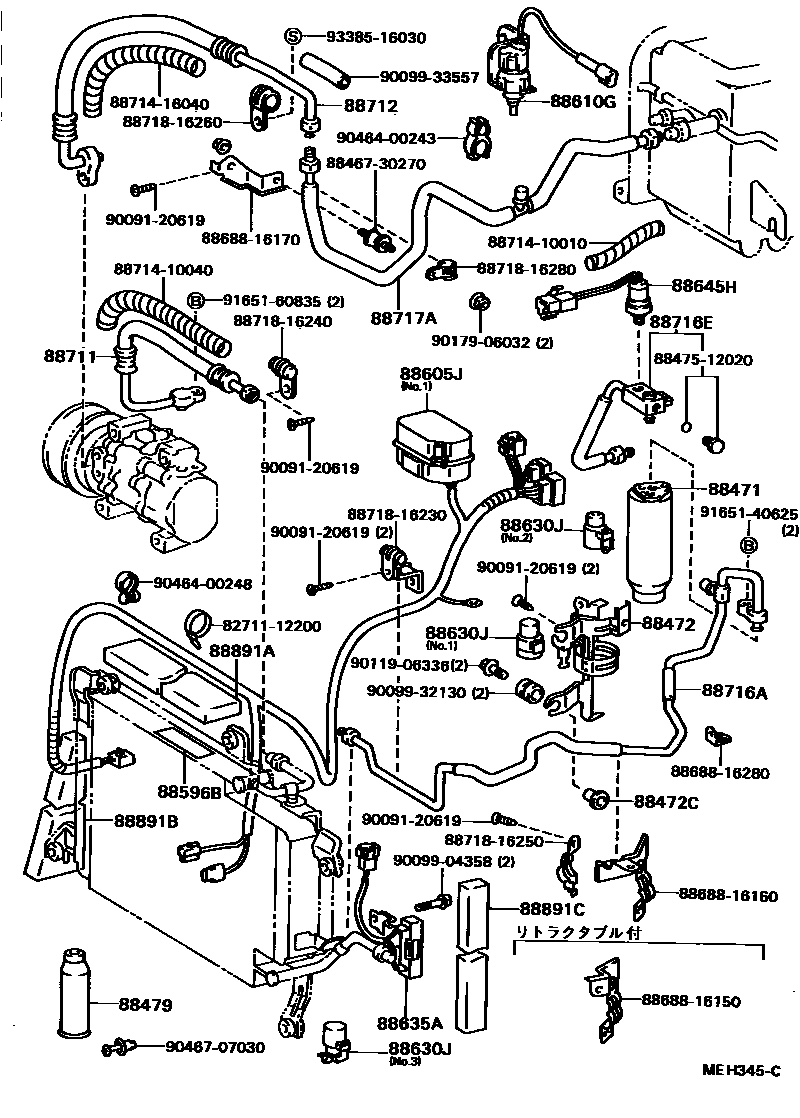

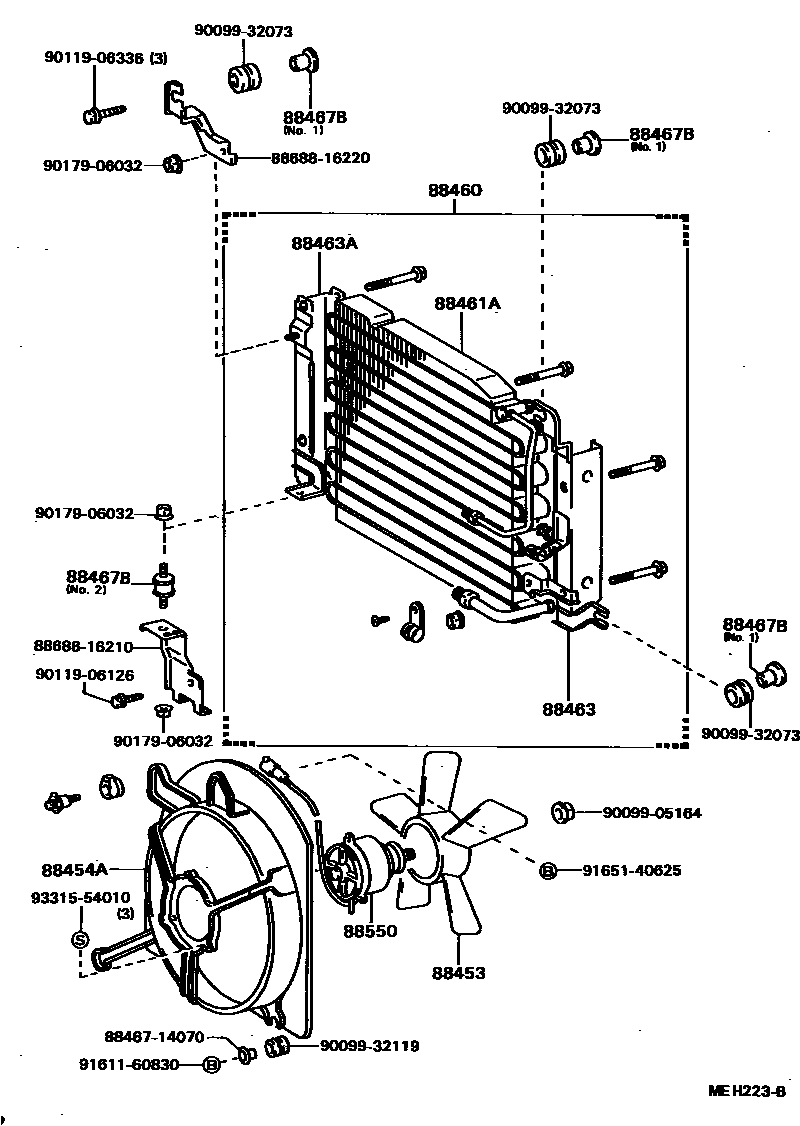

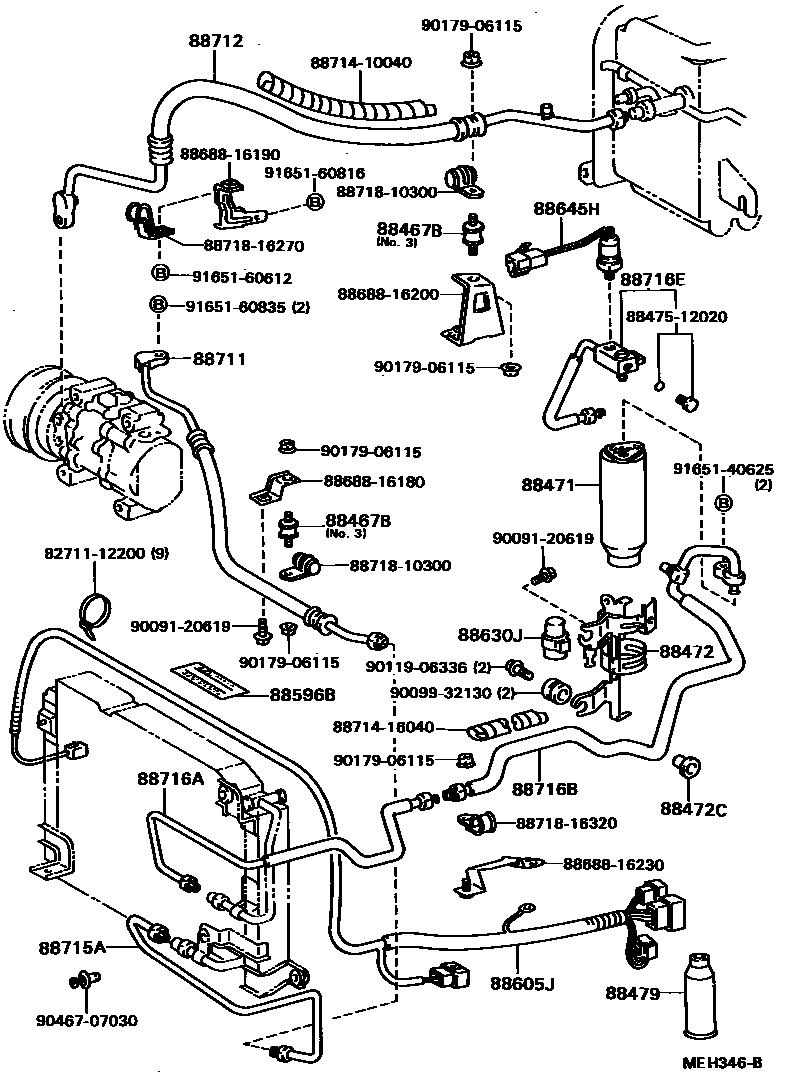

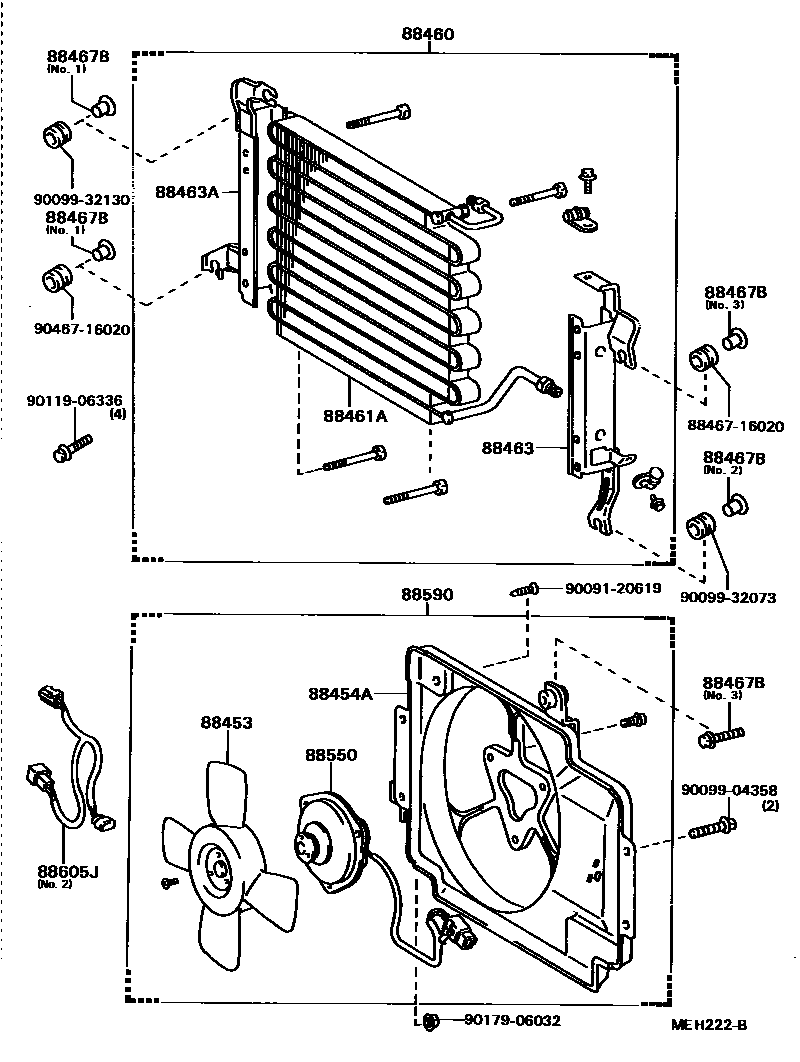

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88453 | Cooling fan (for condenser) | 16361-55020 · 88453-10010 |
| 88454A | fan cover | 16711-55020 · 88454-16060 |
| 88460 | Air conditioning condenser assembly | 88460-16160 · 88460-16170 |
| 88461A | Air conditioning condenser core | 88461-16070 · 88461-16080 |
| 88463 | No. 1 air conditioner condenser bracket | 88463-16150 · 88463-16170 |
| 88463A | No. 2 air conditioner condenser bracket | 88463-16160 · 88463-16180 |
| 88467B | Air conditioning condenser fixed vibration isolation pad | 88467-14040 · 88467-14070 · 88467-16040 · 88469-16020 · 88469-16040 |
| 88471 | Air conditioning fluid storage tank | 88471-10030 |
| 88472 | No. 1 liquid storage tank bracket | 88472-16070 · 88472-16080 |
| 88472C | Liquid storage tank bracket vibration isolation pad | 88467-14070 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02001 |
| 88550 | Blower motor assembly (for condenser) | 16363-15080 · 88550-16090 |
| 88590 | Blower assembly with hood | 88454-16070 |
| 88596B | No. 1 warning nameplate | 88596-24010 |
| 88605J | Air conditioning wiring harness sub-assembly | 88605-16420 · 88605-16430 · 88605-16440 · 88605-16450 · 88605-16460 · 88605-16470 · 88605-16480 · 88605-16490 · 88605-16500 · 88605-16510 · 88605-16550 · 88605-16570 · 88605-16620 · 88605-16630 · 88605-16640 · 88605-16690 · 88605-16720 · 88605-16730 · 88605-16740 · 88605-16750 · 88605-16760 · 88605-16770 |
| 88610G | Control switch assembly | 83390-16110 · 88610-16040 |
| 88630J | Relay assembly (for condenser motor) | 88630-14030 · 88630-16030 · 88630-16050 · 88630-95702 |
| 88635A | Blower resistor (for air conditioner condenser motor) | 88635-16040 |
| 88645H | No. 1 pressure switch | 88645-16010 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-16060 · 88711-16070 · 88711-16090 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-16100 · 88712-16110 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-16010 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-16320 · 88716-16330 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-16340 · 88716-16360 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-16310 |
| 88717A | Cooler refrigerant suction pipe A | 88717-16080 |
| 88891A | Seal A (for cooler) | 88578-16080 |
| 88891B | Seal B (for cooler) | 88578-16070 |
| 88891C | Seal C (for cooler) | 88578-16120 |
