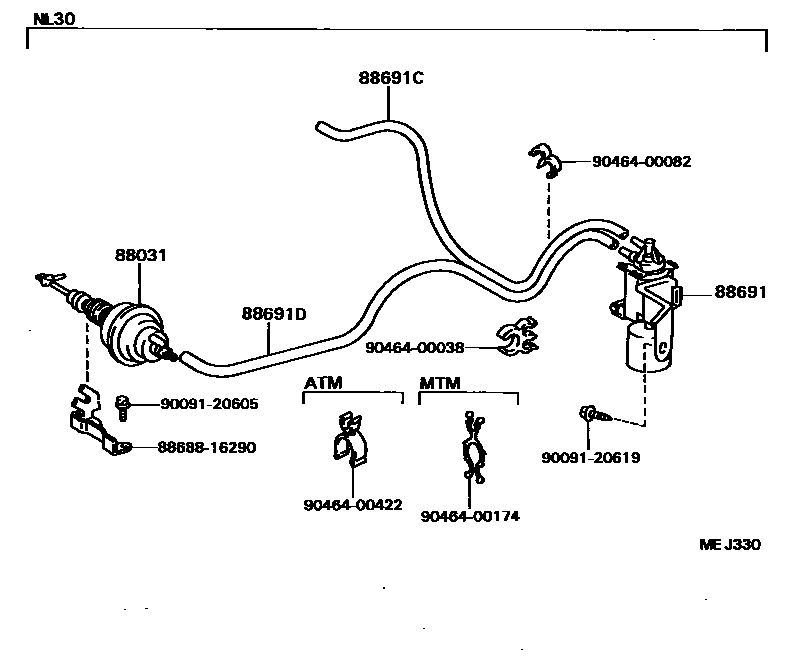

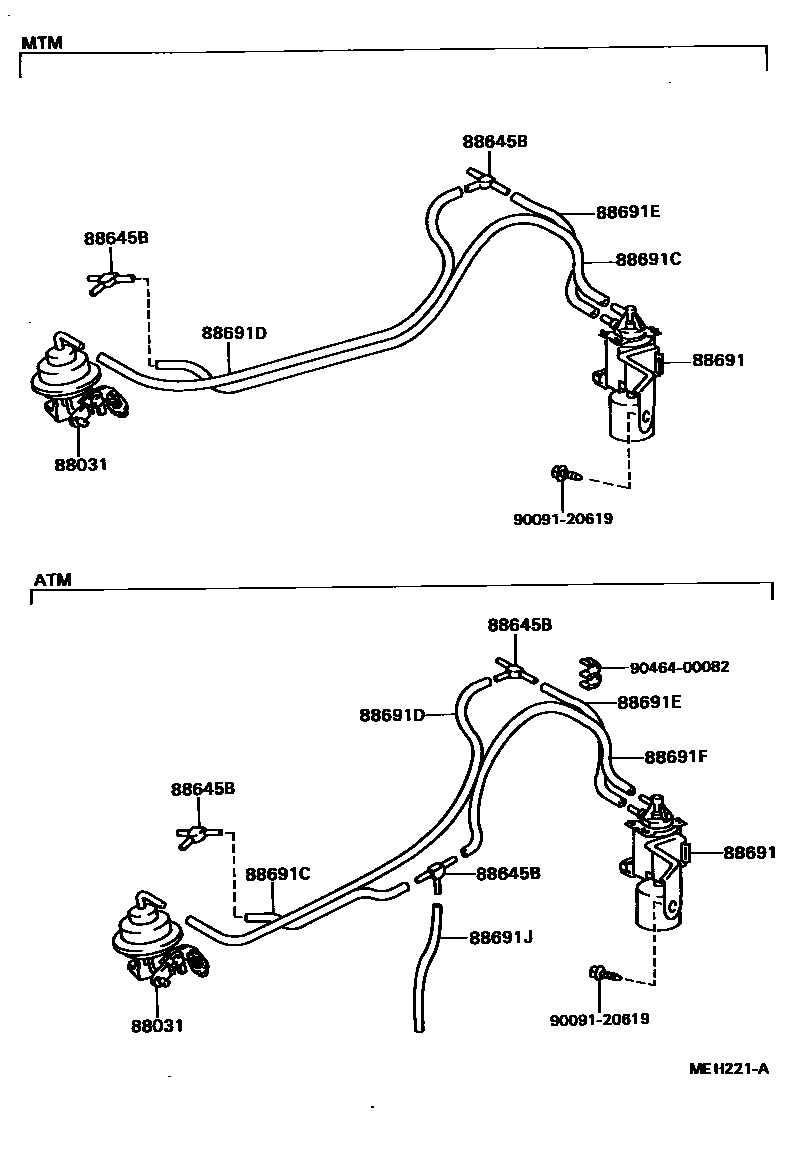

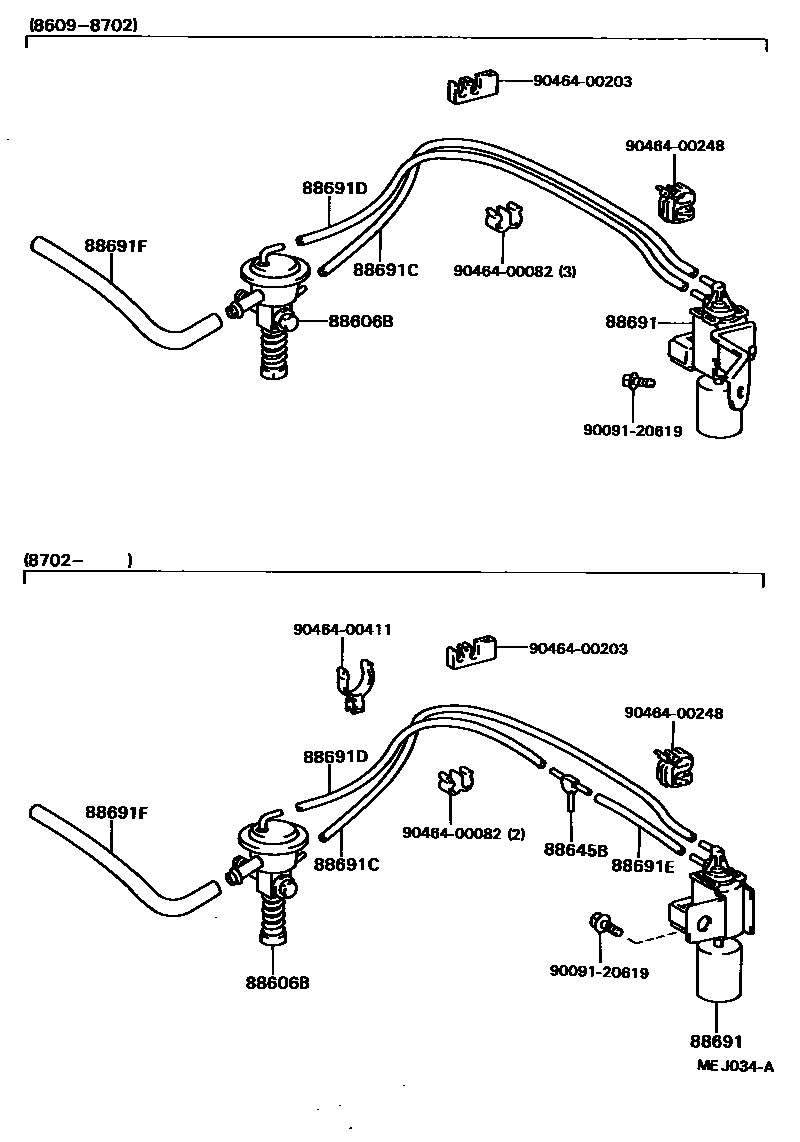

Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717
Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88031 | Idle speed lift actuator assembly | 88031-10021 · 88031-16060 · 88031-16070 · 88031-16080 |
| 88606B | Cooler diaphragm sub-assembly | 88606-24020 |
| 88645B | Connector No. 1 (for idle speed lifting device) | 90413-04001 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88691-10010 · 88691-16050 · 88691-90K02 |
| 88691F | No. 4 vacuum hose (for idle lift device) | 88689-10030 · 95411-10030 |
