Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715

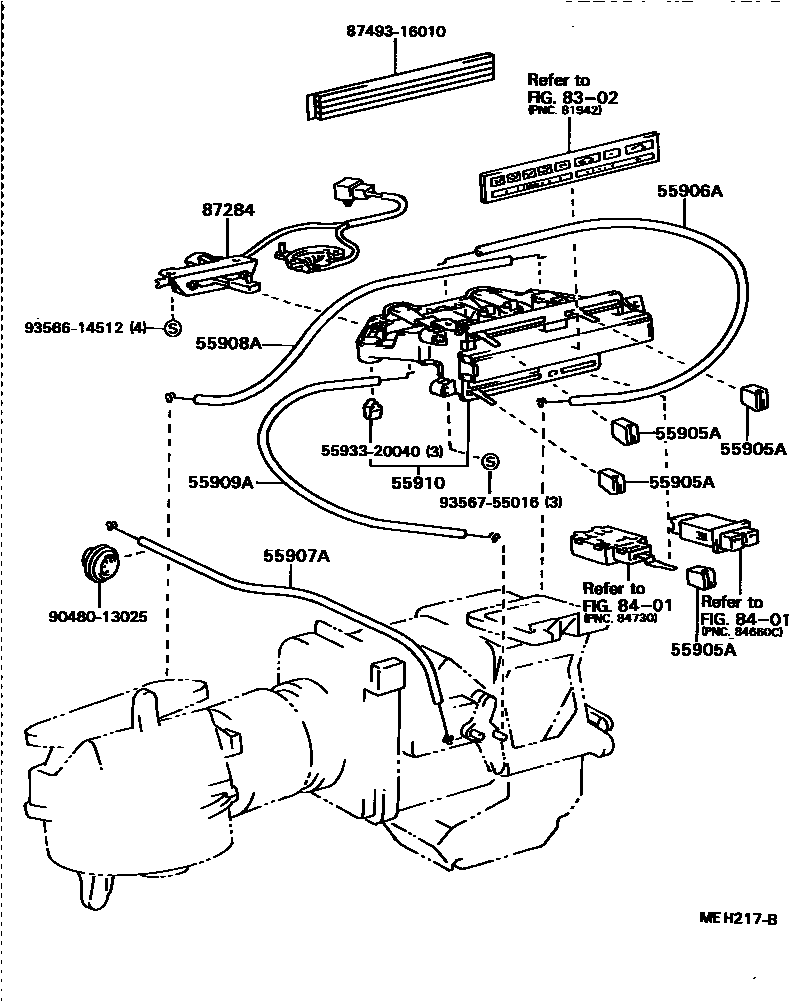

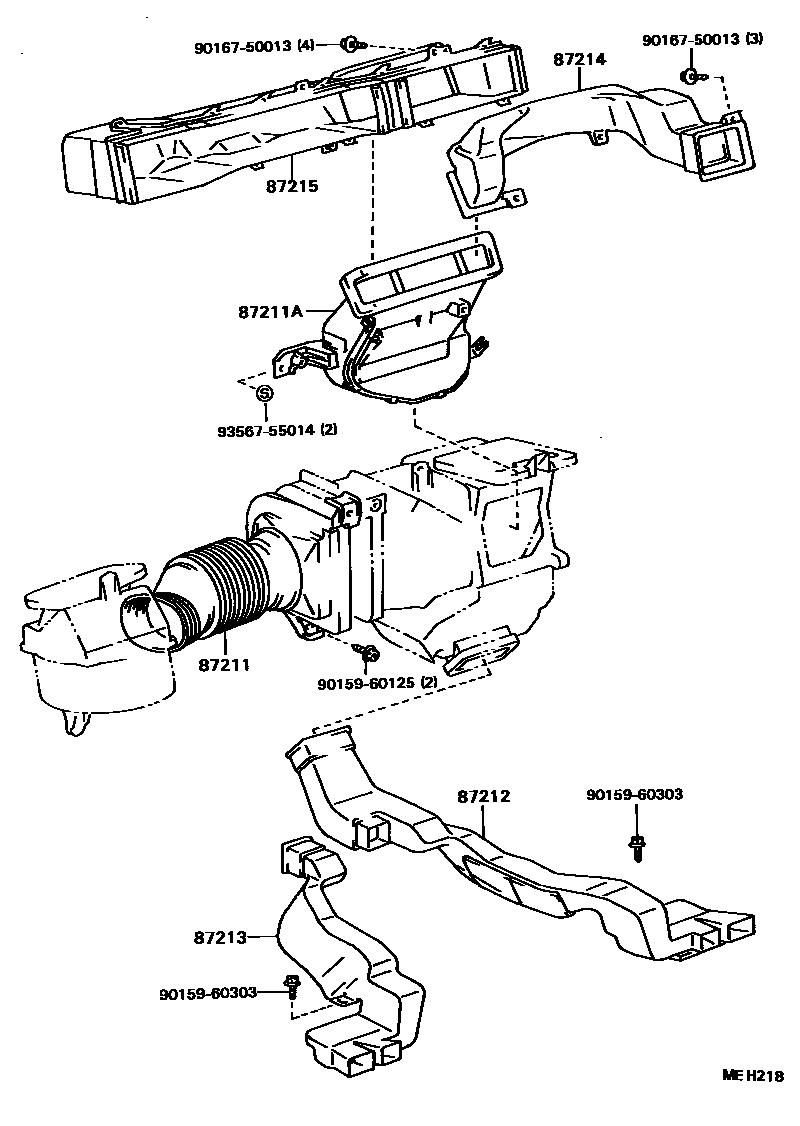

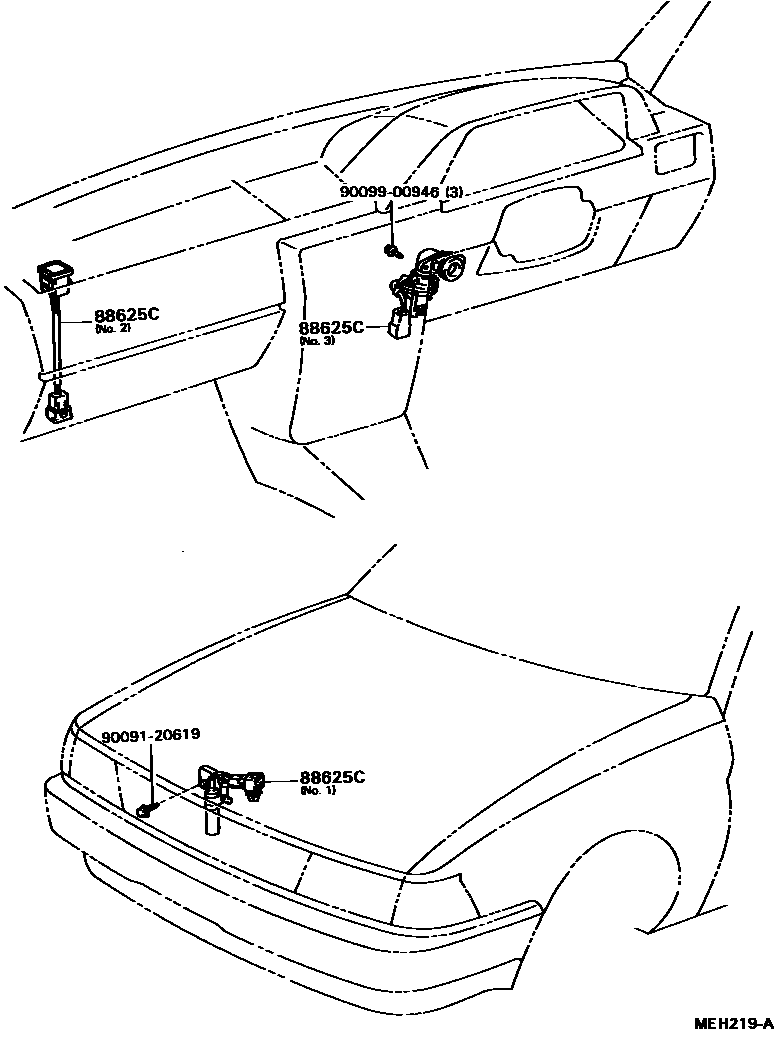

Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55905A | Heater control button | 55905-16020 |
| 55906A | Defroster damper control cable sub-assembly | 55906-16050 |
| 55907A | Water valve control cable sub-assembly | 55907-16080 |
| 55908A | Intake air valve control cable sub-assembly | 55908-16050 |
| 55909A | Air mix damper control cable sub-assembly | 55909-16040 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-16100 |
| 87211 | No. 1 air duct | 87201-16070 |
| 87211A | Duct No. 2 | 87201-16090 · 87201-16091 |
| 87212 | No. 1 rear air duct | 87202-16040 |
| 87213 | No. 2 rear air duct | 87203-16040 |
| 87214 | Air duct No. 1 on the right | 55843-16080 |
| 87215 | Air duct No. 1 on the left | 55086-16070 |
| 87284 | Variable resistor sub-assembly | 88032-16050 |
| 88625C | Cooler thermistor | 88625-16090 · 88625-16100 · 88625-16110 |
