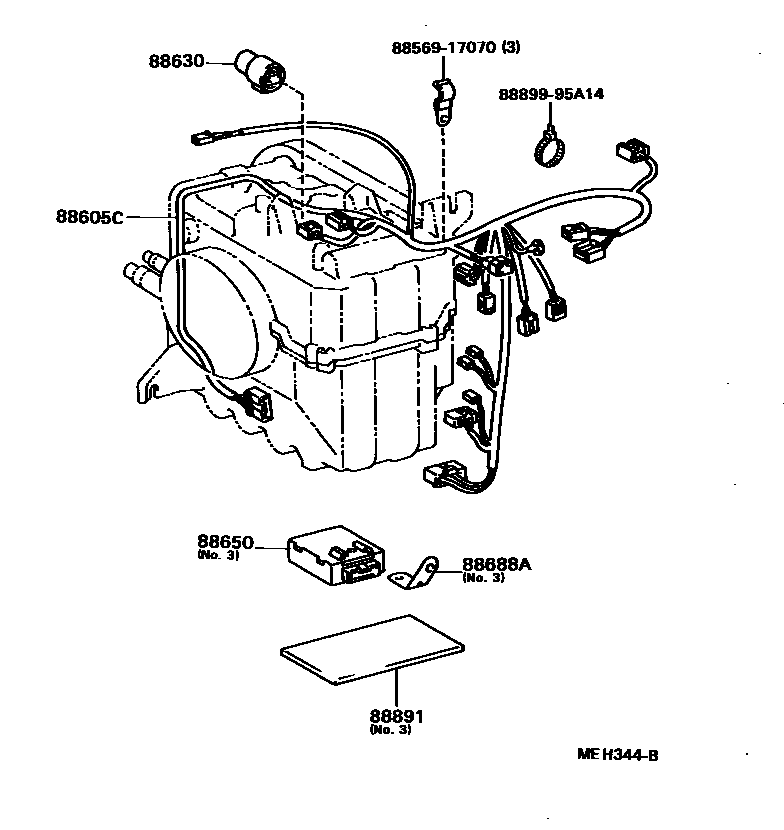

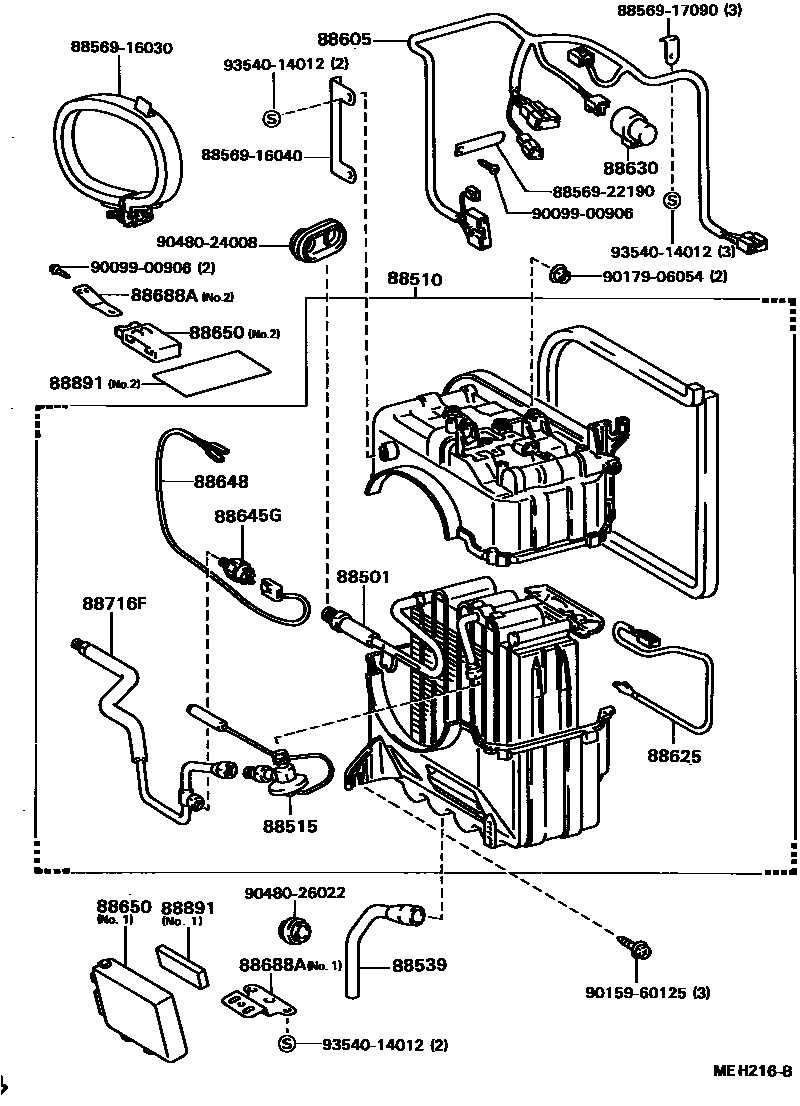

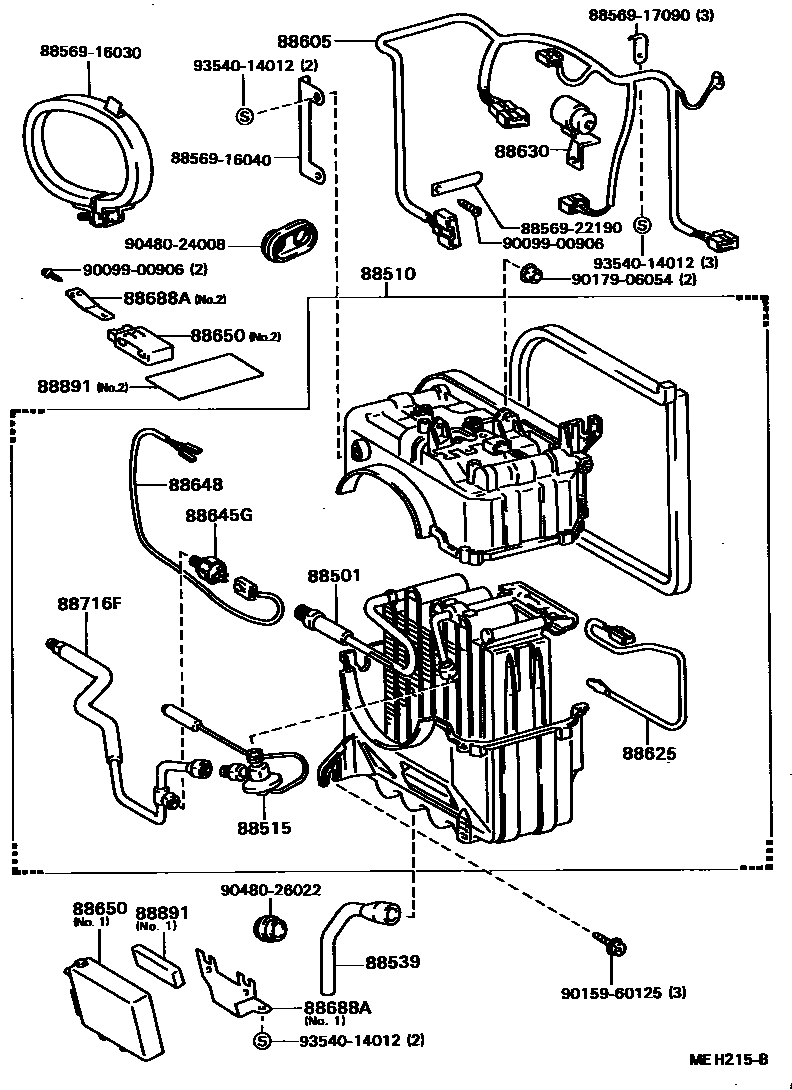

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-16080 |
| 88510 | Cooler device assembly | 88510-16170 |
| 88515 | Cooler expansion valve | 88515-16040 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-16030 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-16240 · 88605-16250 · 88605-16260 · 88605-16270 · 88605-16280 · 88605-16290 · 88605-16300 · 88605-16310 · 88605-16360 · 88605-16380 · 88605-16400 · 88605-16410 · 88605-16540 · 88605-16560 · 88605-16580 · 88605-16600 · 88605-16650 · 88605-16670 · 88605-16700 |
| 88605C | No. 2 cooler wiring harness sub-assembly | 88605-16320 · 88605-16330 · 88605-16340 · 88605-16350 · 88605-16370 · 88605-16390 · 88605-16590 · 88605-16610 · 88605-16660 · 88605-16680 · 88605-16710 |
| 88625 | Cooler No. 1 Thermistor | 88625-16080 |
| 88630 | Cooler relay assembly | 88630-14030 · 88630-16030 · 88630-16060 · 88630-16070 · 88630-95702 |
| 88645G | pressure switch | 88645-16020 |
| 88648 | No. 1 cooler wiring harness | 88648-16120 |
| 88650 | Cooler stabilized amplifier assembly | 88650-16160 · 88650-16170 · 88650-16200 · 88650-16210 · 88650-16220 · 88650-16230 · 88650-16240 · 88650-16250 · 88650-16260 · 88650-16270 · 88650-16280 · 88650-16281 · 88650-16290 · 88650-16300 · 88650-16310 · 88650-16340 · 88650-16350 · 88650-16360 · 88650-16370 |
| 88688A | Cooler stabilized amplifier stand | 88688-10100 · 88688-16260 · 88688-16270 · 88688-16280 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-16290 |
| 88891 | Seals (for coolers) | 88578-10090 · 88578-16110 |
