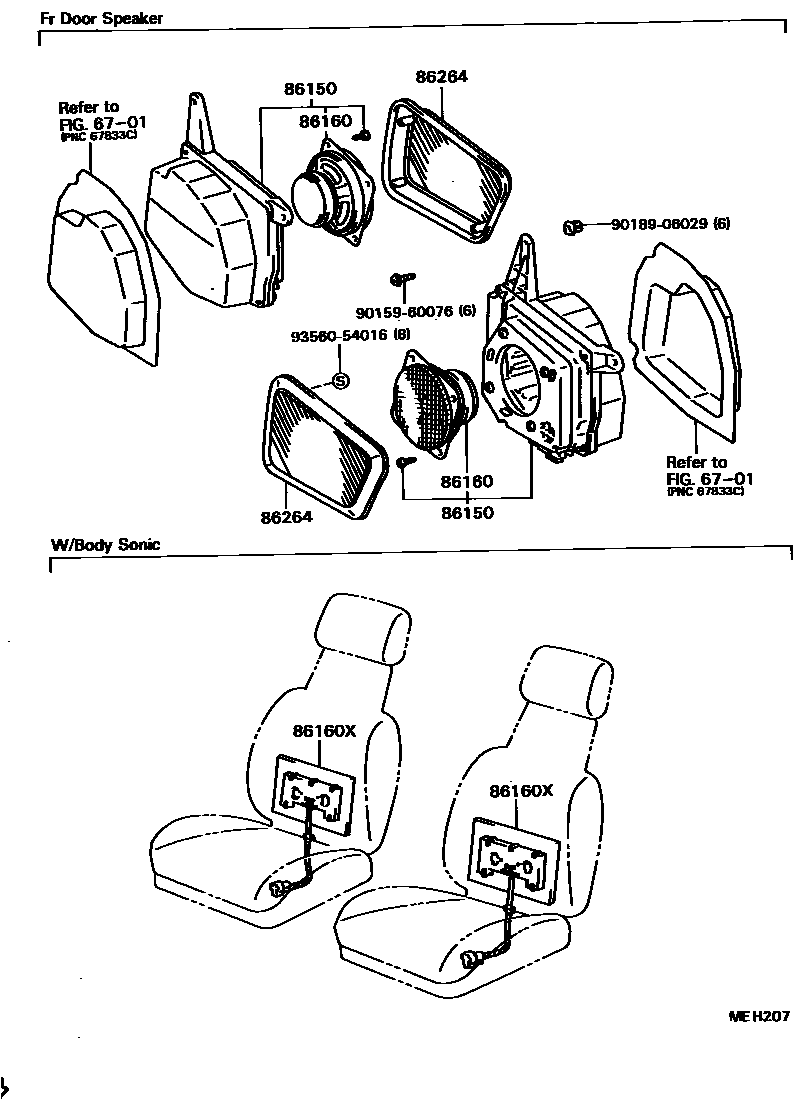

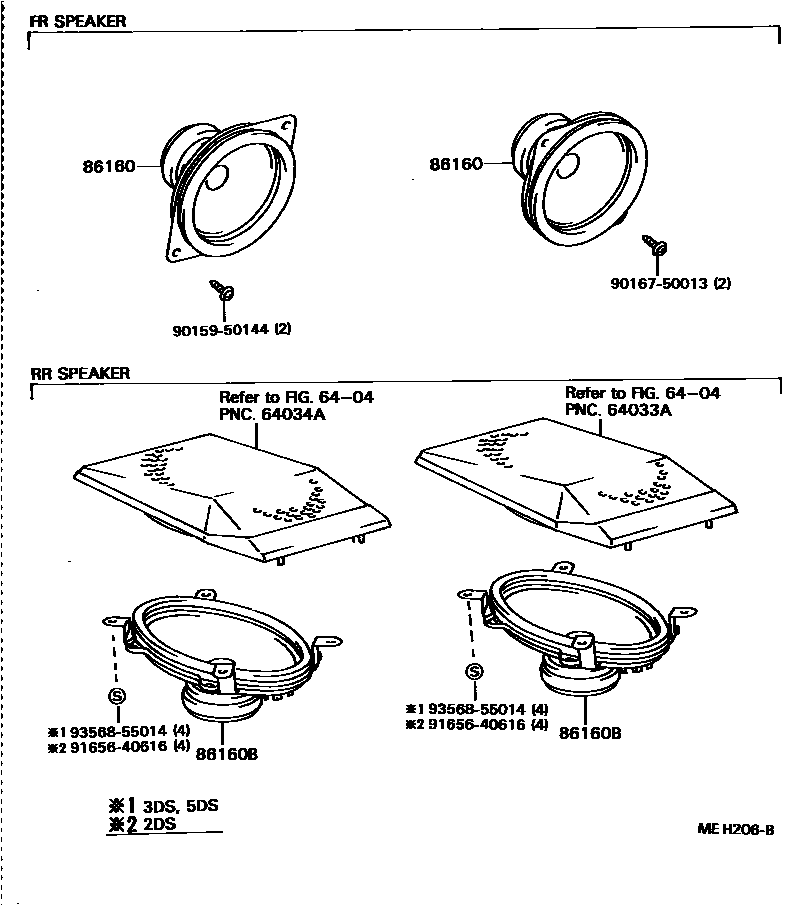

Toyota COROLLA 扬声器 — Figure 8602
Toyota COROLLA EPC diagram 8602, 扬声器, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86150 | No. 1 loudspeaker assembly with box | 86150-16090 · 86150-16100 |
| 86160 | No. 1 front speaker assembly | 86160-16120 · 86160-16130 · 86160-16140 · 86160-16150 |
| 86160B | Rear speaker assembly | 86160-16160 |
| 86160X | Car body sound wave converter | 86160-16170 |
| 86264 | front speaker grille | 67651-16010 · 67651-16020 |
