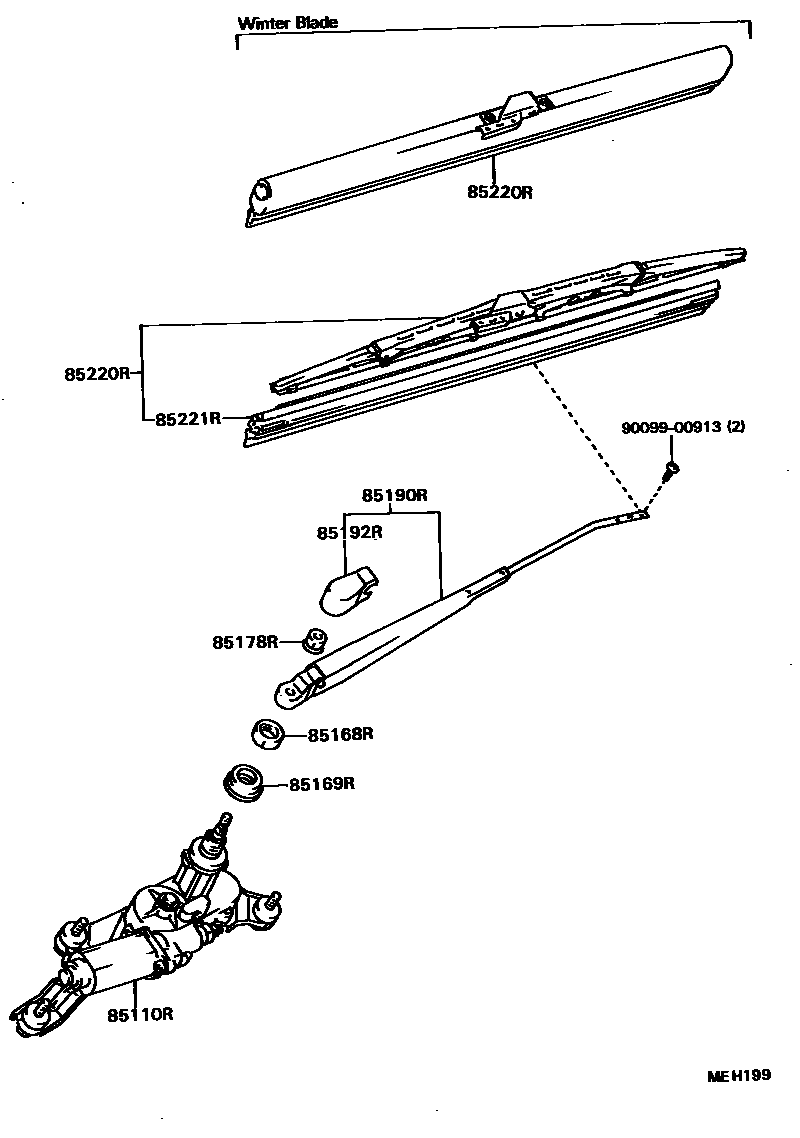

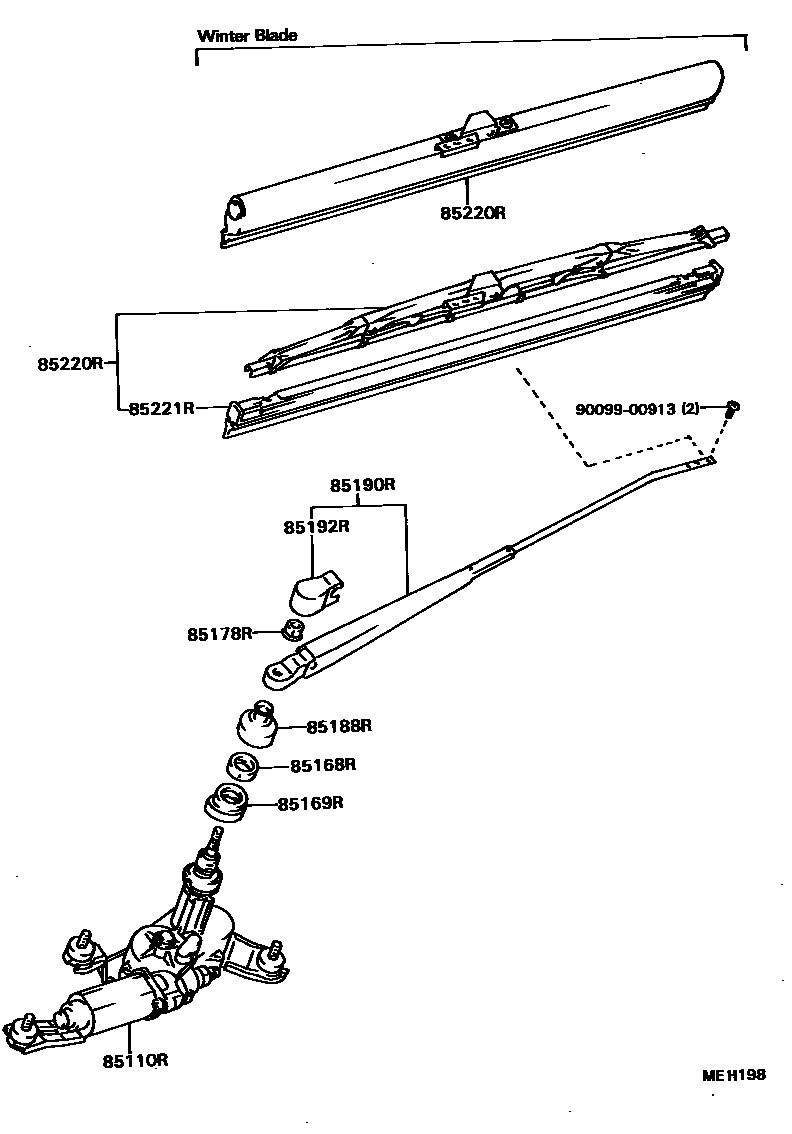

Toyota COROLLA 后刮水器 — Figure 8502
Toyota COROLLA EPC diagram 8502, 后刮水器, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85110-16270 · 85110-16300 |
| 85168R | No. 1 rear wiper link pivot nut | 90099-05157 · 90099-05222 |
| 85169R | No. 1 rear wiper link pivot washer | 85179-16270 · 85179-16300 |
| 85178R | Nut (for securing rear wiper arm) | 90179-06158 |
| 85188R | No. 1 rear wiper pivot cover | 85178-16270 |
| 85190R | Rear wiper arm assembly | 85190-16180 · 85190-16210 |
| 85192R | Rear wiper arm cover | 85192-14020 |
| 85220R | Rear wiper blade assembly | 85220-12610 · 85220-12620 · 85220-14170 · 85220-16440 · 85220-16580 |
| 85221R | Rear wiper blade | 85221-16080 · 85221-16090 |
