Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

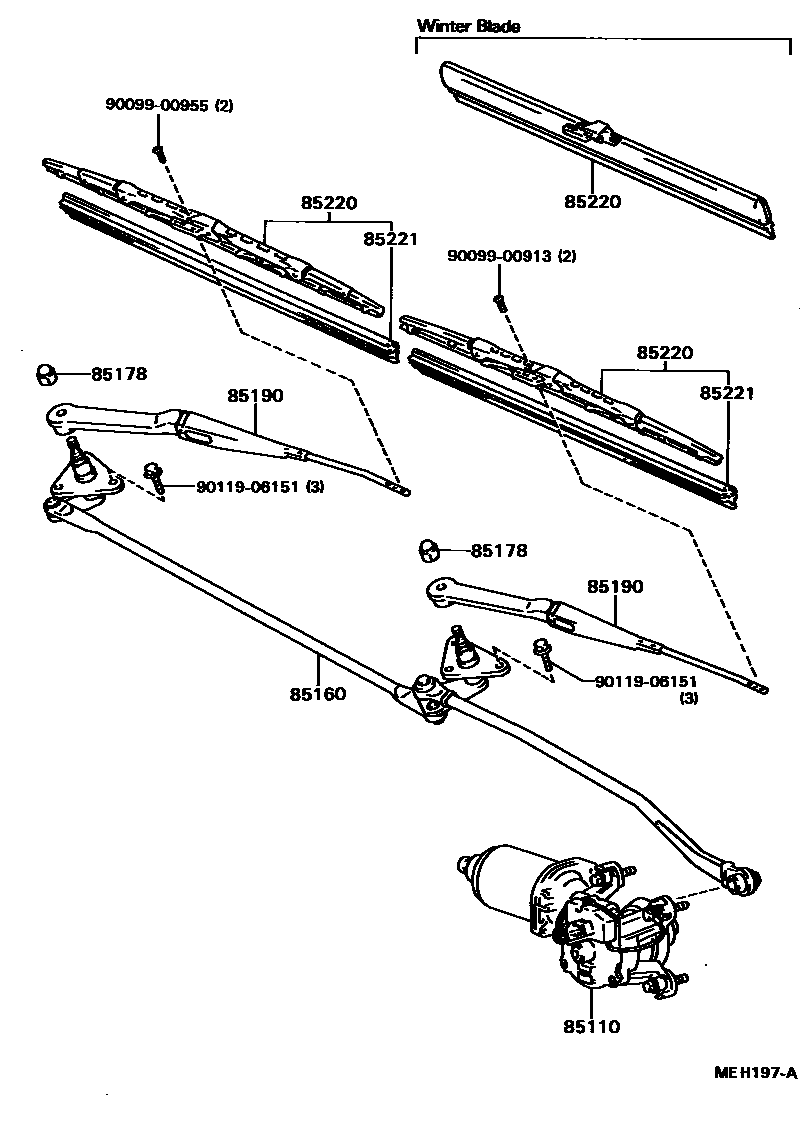

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-16230 · 85110-16231 · 85110-16240 · 85110-16241 · 85110-16310 · 85110-16311 · 85110-16320 · 85110-16321 |
| 85160 | Windshield wiper connecting rod assembly | 85160-16180 · 85160-16210 |
| 85178 | Nut (for securing front wiper arm) | 90176-08033 |
| 85190 | Windshield wiper arm assembly | 85190-16160 · 85210-16030 |
| 85220 | Windshield wiper blade assembly | 85220-16320 · 85220-16580 · 85220-32310 · 85220-32560 |
| 85221 | Windshield wiper blade | 85221-30110 · 85221-30120 |
