Toyota COROLLA 电子燃油喷射系统 — Figure 8404

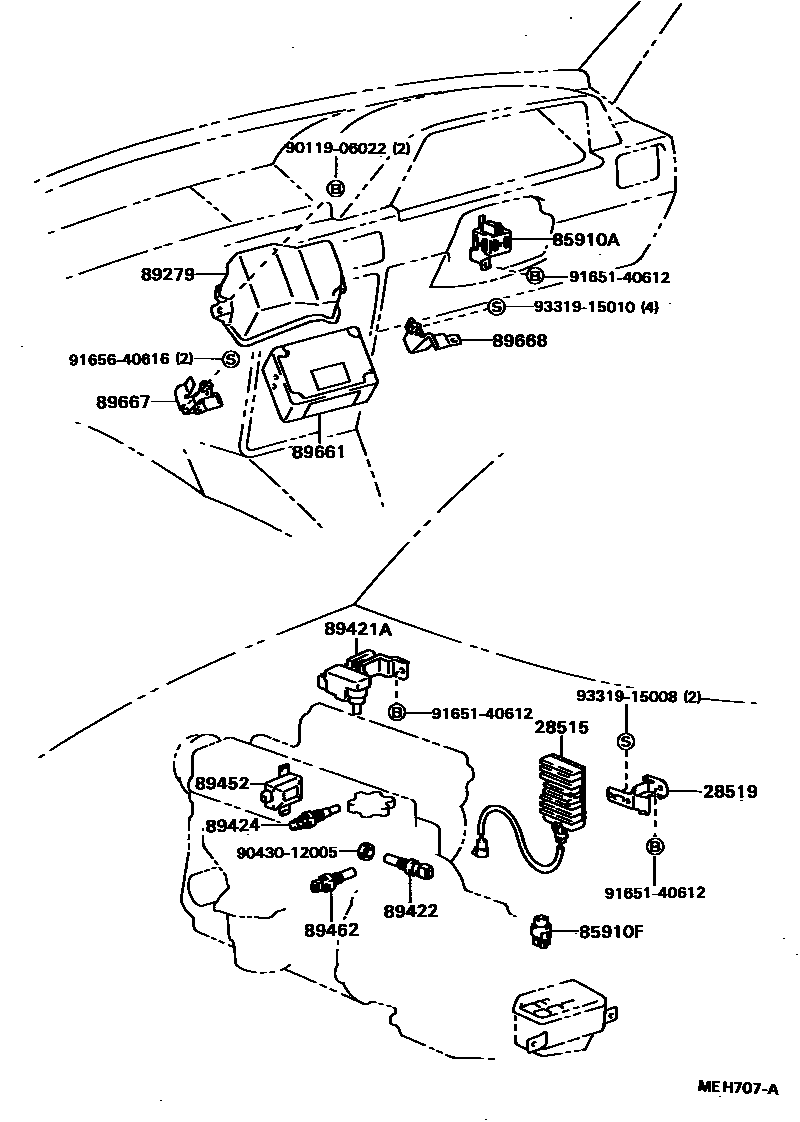

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28515 | Solenoid valve resistor | 28515-11010 |
| 28519 | Solenoid valve resistor bracket | 28519-11010 |
| 85910A | Circuit breaking relay assembly (for EFI) | 85910-16010 · 85910-30050 |
| 85910F | ECU relay (for EFI) | 90987-02004 |
| 89279 | Engine control ECU cover | 89279-16040 |
| 89421A | turbo pressure sensor | 89421-10020 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-30020 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-28010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-12010 |
| 89462 | Start injector timing switch | 89462-30011 |
| 89661 | Engine control ECU | 89661-16010 · 89661-16011 |
| 89667 | Engine control ECU bracket | 89667-10010 |
| 89668 | No. 2 engine control ECU bracket | 89668-10010 |
