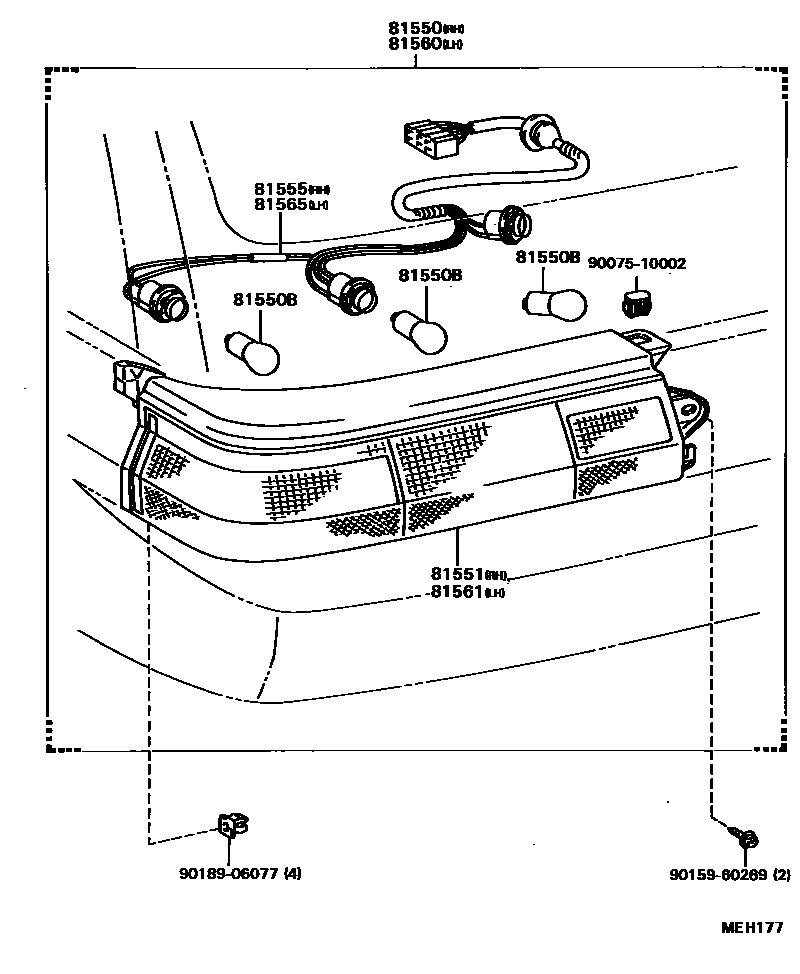

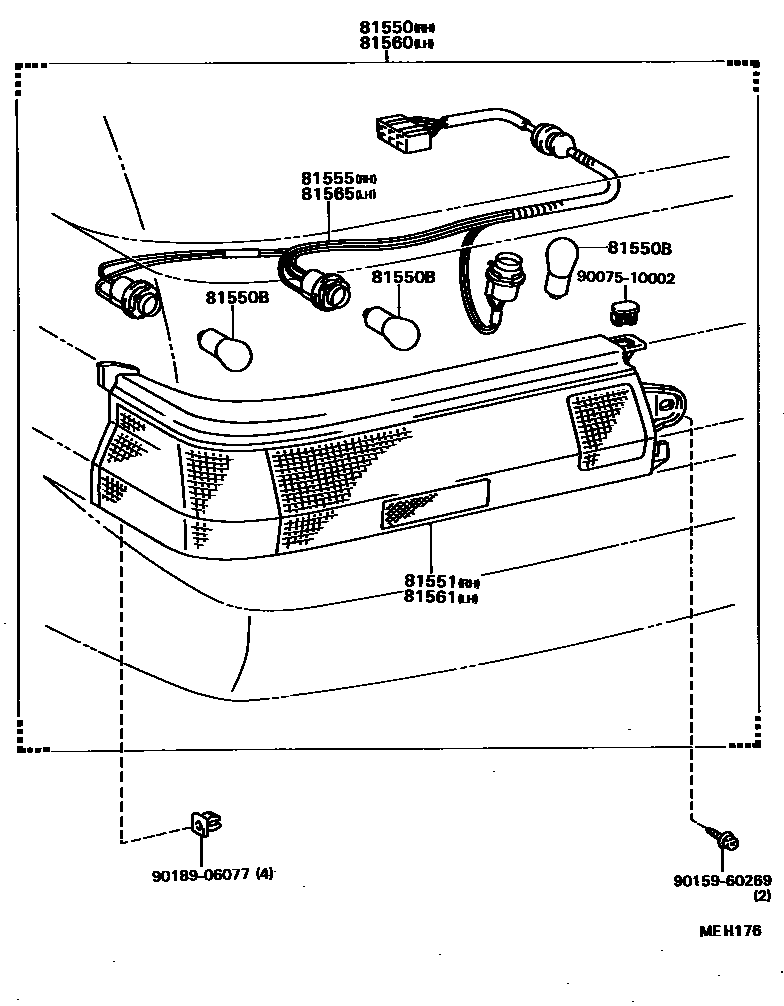

Toyota COROLLA 后组合灯 — Figure 8111
Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-16340 · 81550-16360 |
| 81550B | Bulb (for rear combination lights) | 99132-11230 · 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-16340 · 81551-16360 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-16340 |
| 81560 | Left rear combination light assembly | 81560-16360 · 81560-16380 |
| 81561 | Left rear combination lamp shade | 81561-16360 · 81561-16380 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-16340 |
