Toyota COROLLA 前转向灯 — Figure 8103

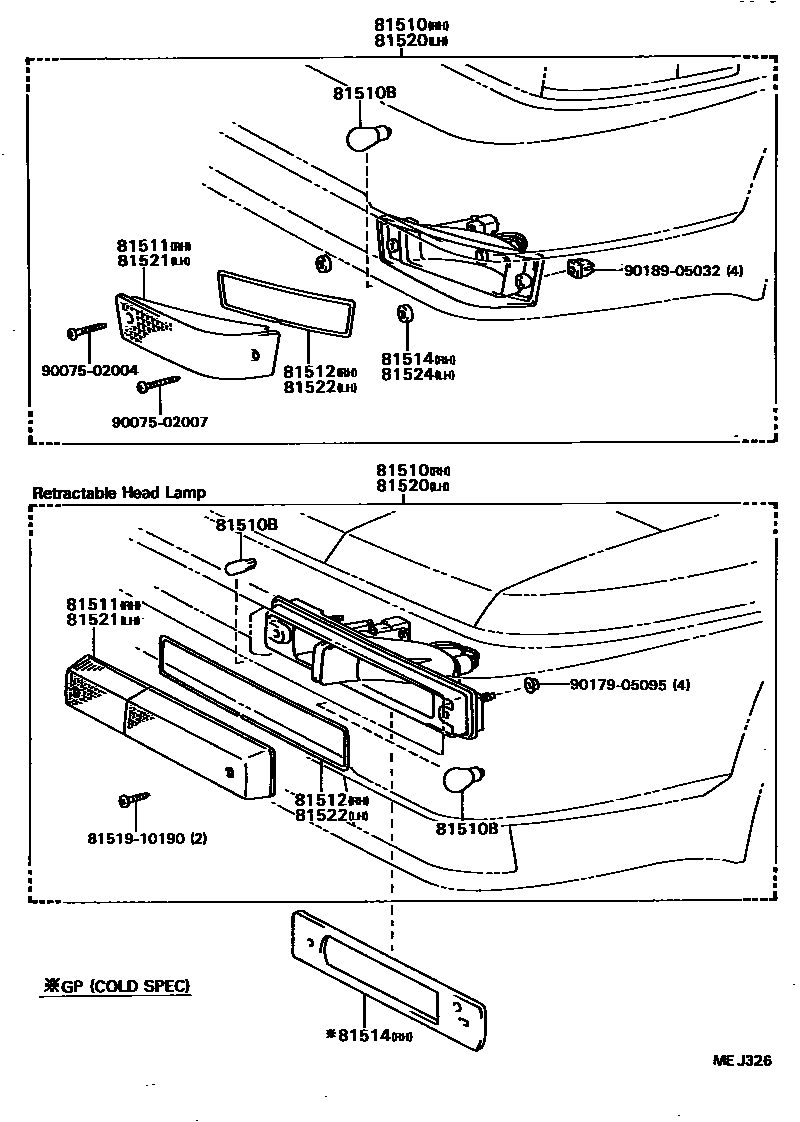

Toyota COROLLA EPC diagram 8103, 前转向灯, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-80039 · 81510-80040 |
| 81510B | Bulb (for front turn signal lamp) | 90981-12010 · 99132-11230 |
| 81511 | Right front turn signal lamp cover | 81511-16060 · 81511-16120 |
| 81512 | Right front turn signal lamp housing gasket | 81512-16060 · 81512-16120 |
| 81514 | Right front turn signal light body gasket | 81514-16130 · 81514-20330 |
| 81520 | Left front turn signal lamp assembly | 81520-80039 · 81520-80040 |
| 81521 | Left front turn signal lamp cover | 81521-16060 · 81521-16120 |
| 81522 | Left front turn signal lamp housing gasket | 81512-16060 · 81512-16120 |
| 81524 | Left front turn signal light body gasket | 81514-20330 |
