Toyota COROLLA Fog Lamp — Figure 8102

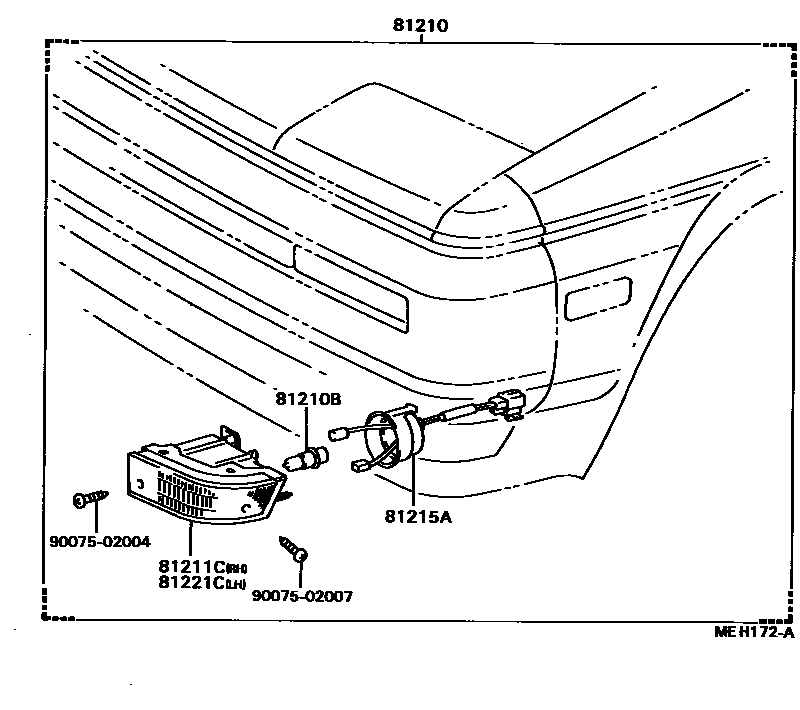

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210 | Fog light assembly | 81210-19185 · 81220-19105 |
| 81210B | fog light bulb | 90981-13040 |
| 81211C | Right fog light assembly | 81211-16040 |
| 81215A | Fog light holder and wiring harness | 81215-16040 |
| 81221C | Left fog light assembly | 81221-16020 |
