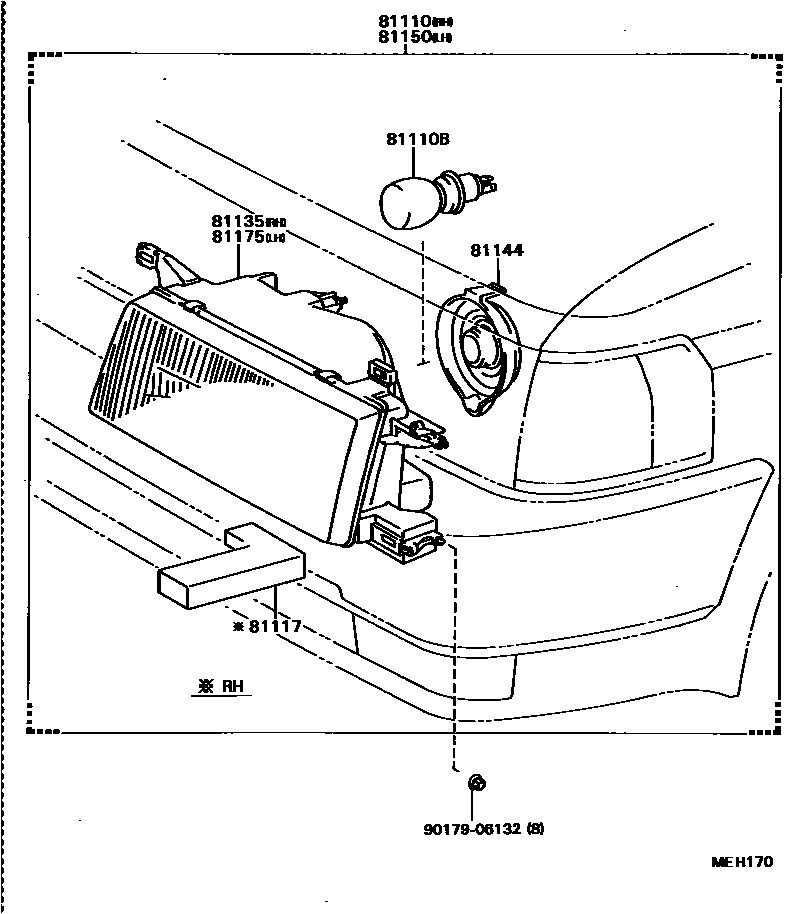

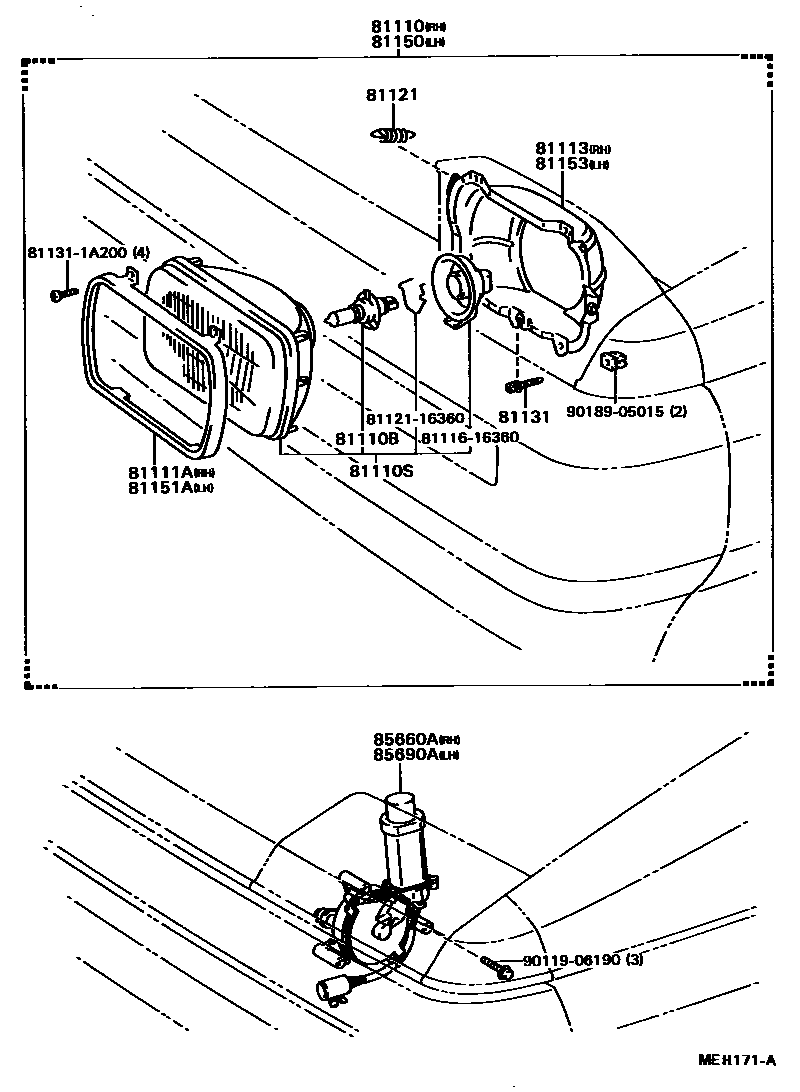

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-16340 · 81110-16350 · 81110-16360 · 81110-16400 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 · 90981-13022 |
| 81110S | No. 1 enclosed lamp assembly | 90981-04037 |
| 81111A | No. 1 closed car light fixing ring on the right | 81111-14710 · 81111-16400 |
| 81113 | Right No. 1 closed lamp seat | 81113-16360 |
| 81117 | Headlight housing seal | 81117-16340 |
| 81121 | headlight spring | 81121-16400 |
| 81131 | Headlight adjustment screw | 81131-14710 |
| 81135 | Right headlight assembly | 81130-16340 · 81130-16350 |
| 81144 | No. 1 headlight cover | 81139-16340 |
| 81150 | Left headlight assembly | 81150-16340 · 81150-16350 · 81150-16360 |
| 81151A | No. 1 closed headlight fixing ring on the left | 81111-14710 |
| 81153 | No. 1 closed lamp seat on the left | 81153-16360 |
| 81175 | Left headlight assembly | 81170-16340 · 81170-16350 |
| 85660A | Right side light telescopic motor assembly | 85660-16010 |
| 85690A | Left side car light telescopic motor assembly | 85690-16010 |
