Toyota COROLLA 侧防护条 — Figure 7503

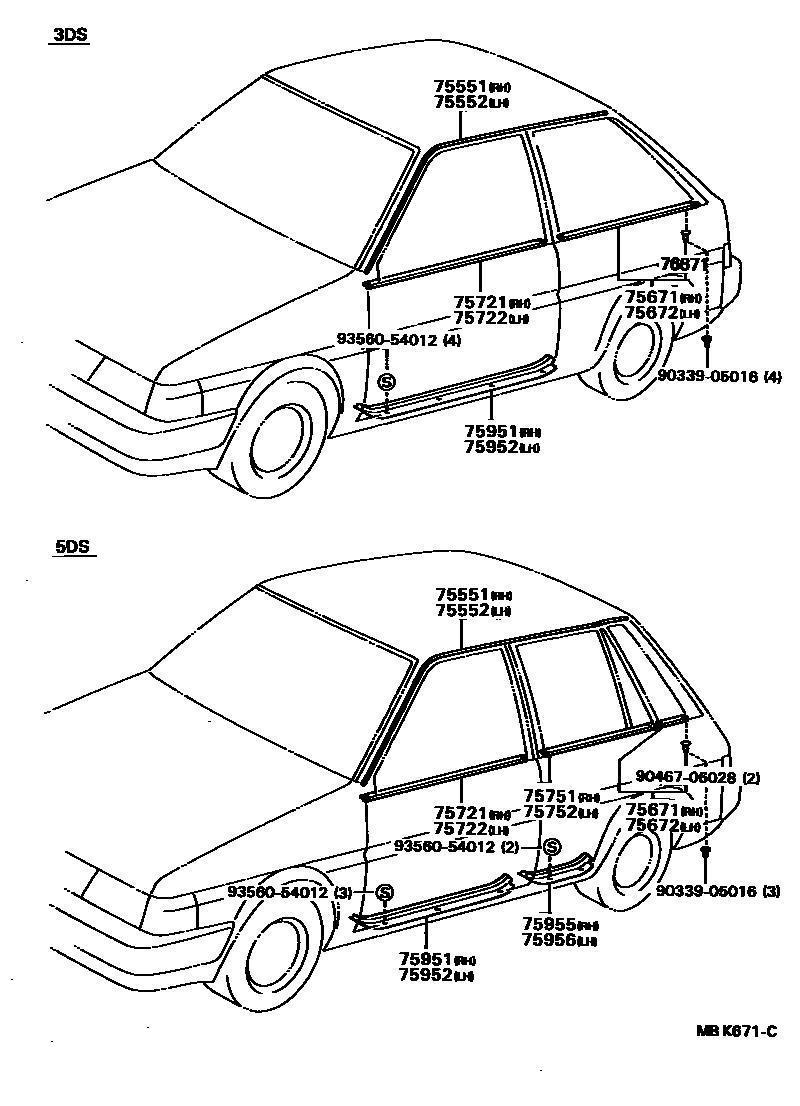

Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-16060 · 75551-16070 · 75551-16110 · 75551-16120 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-16060 · 75552-16070 · 75552-16110 · 75552-16120 |
| 75671 | Right corner window decorative strip | 75660-16050 · 75660-16060 · 75660-16070 · 75660-16080 |
| 75672 | Left corner window decorative strip | 75670-16050 · 75670-16060 · 75670-16070 · 75670-16080 |
| 75721 | Right front door waistline protection strip | 75710-16080 · 75710-16090 · 75710-16100 · 75710-16110 |
| 75722 | Left front door waistline protection strip | 75720-16080 · 75720-16090 · 75720-16100 · 75720-16110 |
| 75751 | Right rear door waistline protection strip | 75730-16030 · 75730-16040 |
| 75752 | Left rear door waistline protection strip | 75740-16030 · 75740-16040 |
| 76671 | No. 1 corner window decoration with clip | 76671-16010 · 90467-06028 |
