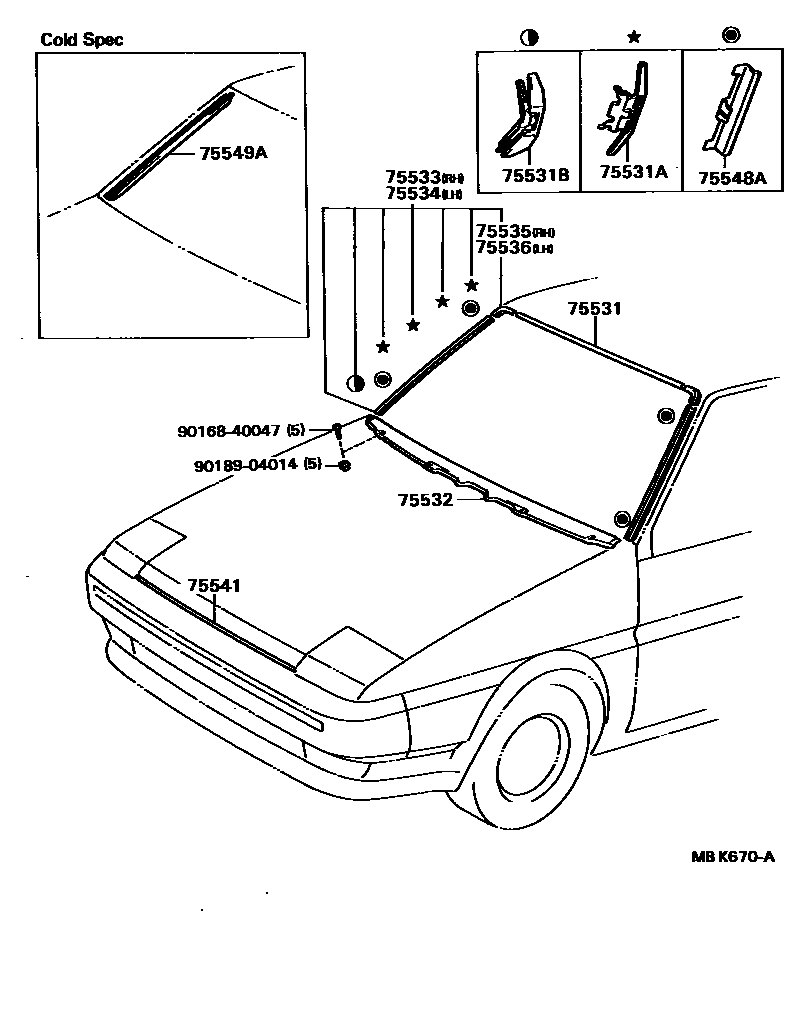

Toyota COROLLA 前防护条 — Figure 7502
Toyota COROLLA EPC diagram 7502, 前防护条, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75531 | Windshield outer protective strip | 75531-16050 · 75531-16060 |
| 75531A | No. 1 windshield protection strip fixing clip | 75545-16030 |
| 75531B | No. 2 windshield protection strip fixing clip | 75546-16030 · 75547-16030 |
| 75532 | Lower windshield protection strip | 75535-16040 |
| 75533 | Windshield right outer protective strip | 75533-16040 · 75533-16050 |
| 75534 | Windshield left outer protective strip | 75534-16040 · 75534-16050 |
| 75535 | Windshield upper right corner protective strip | 75541-16040 · 75541-16050 |
| 75536 | Windshield upper left corner protective strip | 75542-16040 · 75542-16050 |
| 75541 | Engine cover front protective strip | 75771-16040 |
| 75548A | No. 1 windshield outer protective strip fasteners | 75548-16030 · 75548-20060 |
| 75549A | Windshield outer auxiliary protective strip | 75549-16020 |
