Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

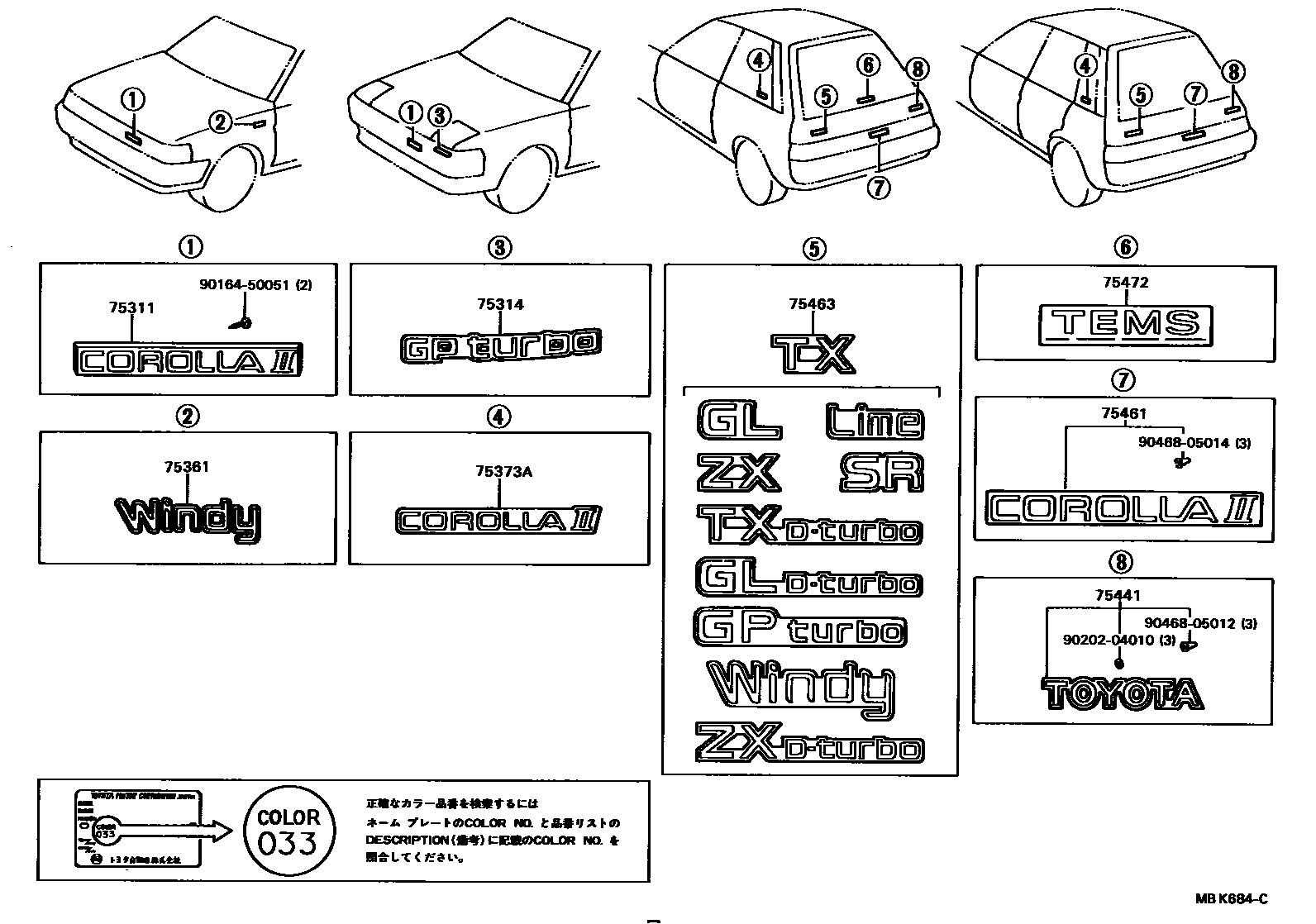

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-16240 · 75311-16270 |
| 75373A | corner window marking plate | 75373-16040 |
| 75441 | Rear No. 1 nameplate (factory mark) | 75441-16230 |
| 75461 | Rear No. 2 nameplate (model mark) | 75461-16030 |
| 75463 | Rear No. 4 nameplate (grade mark) | 75444-16010 · 75444-16020 · 75444-16030 · 75444-16040 · 75444-16160 · 75444-16170 · 75444-16210 · 75444-16240 · 75444-16270 · 75444-16280 |
| 75472 | Rear window nameplate | 74542-16050 |
