Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

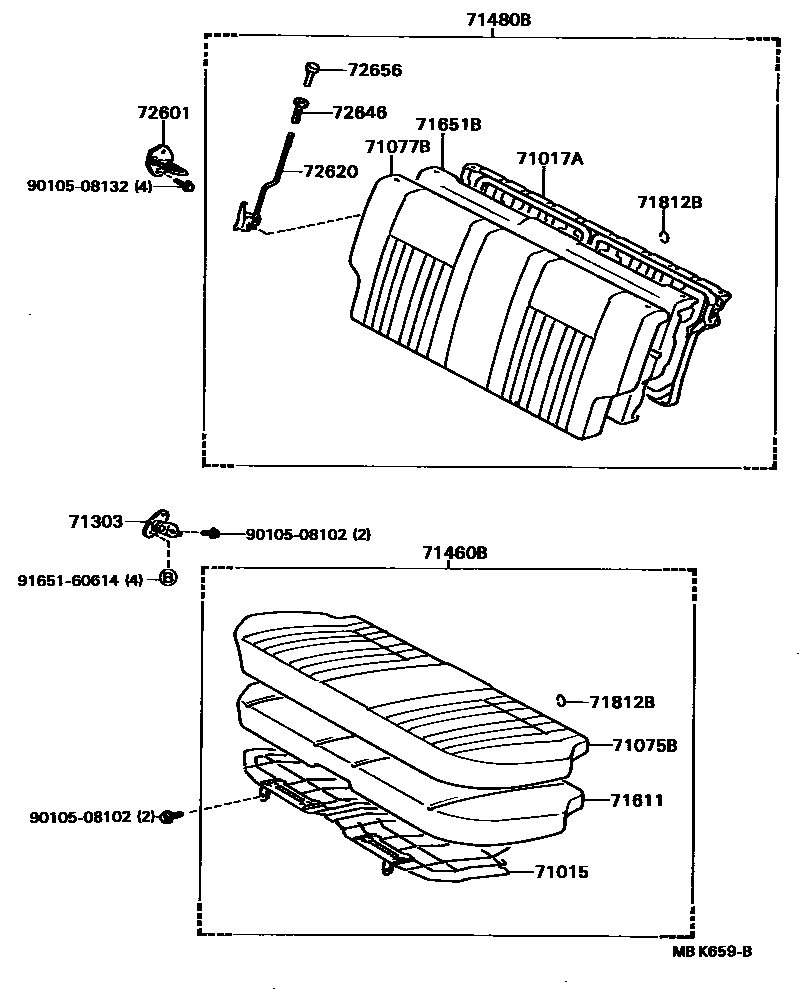

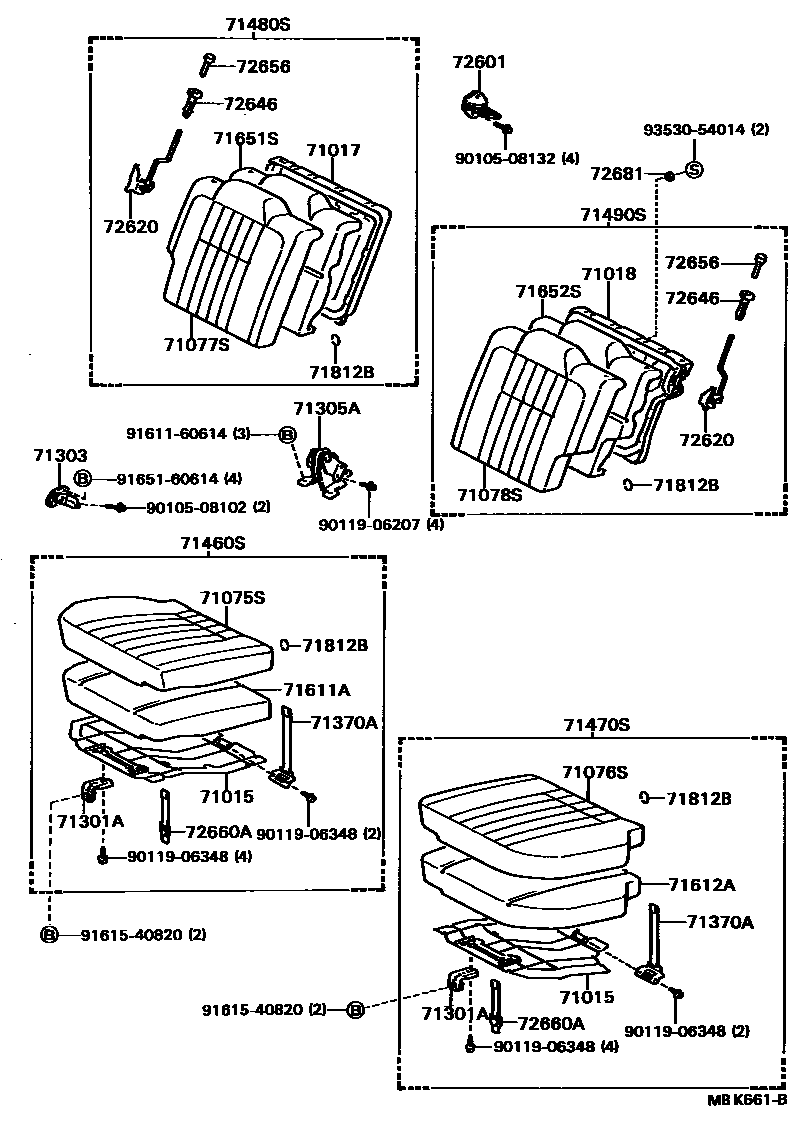

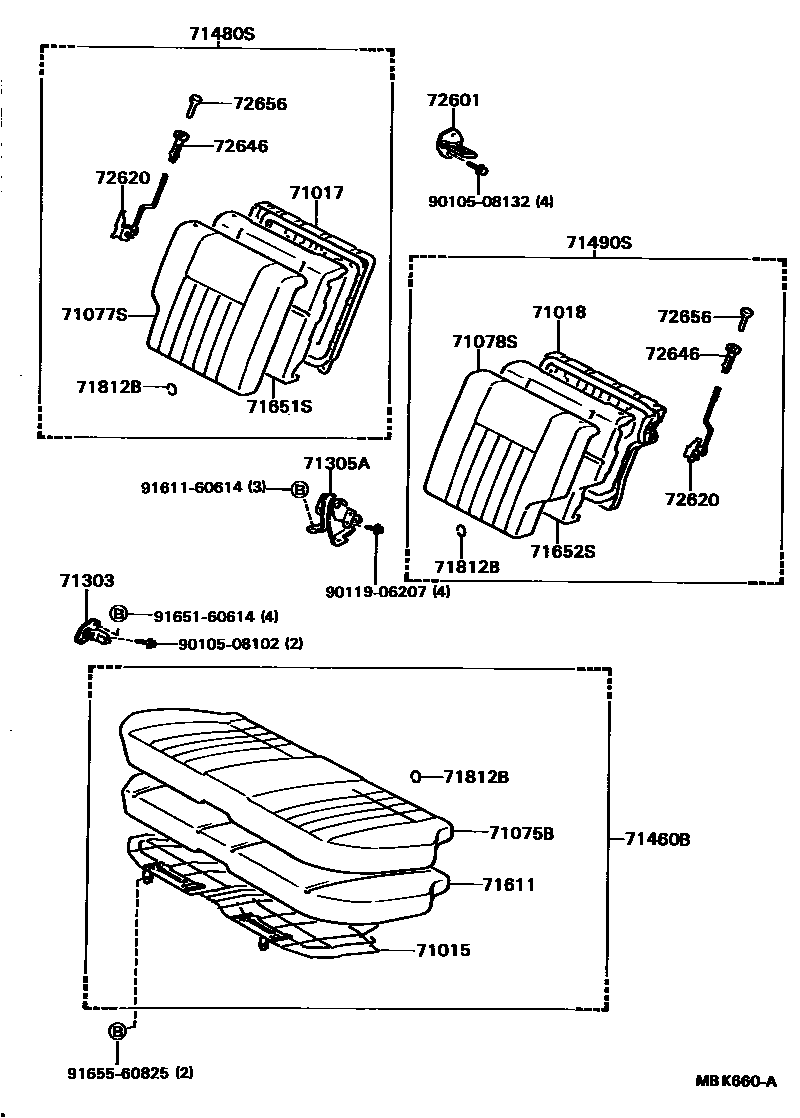

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-16070 · 71015-16080 · 71016-16010 |
| 71017 | Right rear seat back frame sub-assembly | 71017-16130 |
| 71017A | Rear seat back frame sub-assembly | 71017-16110 |
| 71018 | Rear left seat back frame sub-assembly | 71018-16090 |
| 71303 | Rear seat back hinge sub-assembly | 71303-16040 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-16050 |
| 71611 | Rear seat cushion cushion | 71611-16170 |
| 71611A | Rear right seat cushion | 71611-16180 |
| 71612A | Rear left seat cushion | 71612-16030 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-16220 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-16230 · 71651-16240 · 71651-16260 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-16110 · 71652-16120 · 71652-16130 |
| 71812B | Clip (for rear seat cushion cover) | 90468-18071 |
| 72601 | Rear seat lock sub-assembly | 72601-16070 |
| 72620 | Rear seat back lock assembly | 72630-16140 · 72640-16100 |
