Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

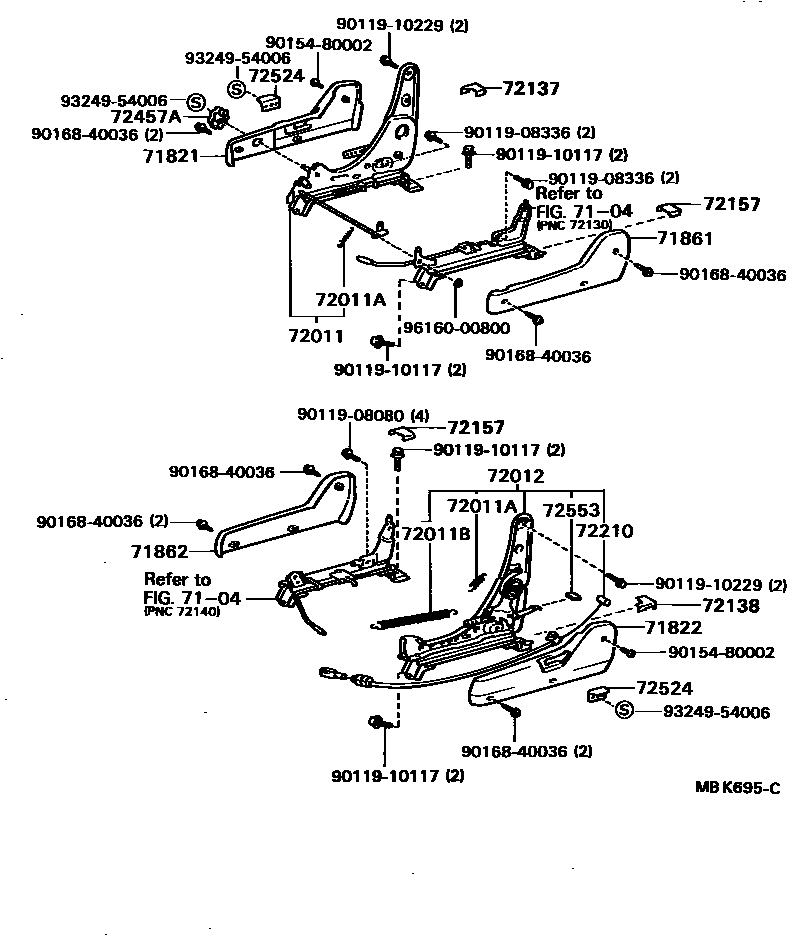

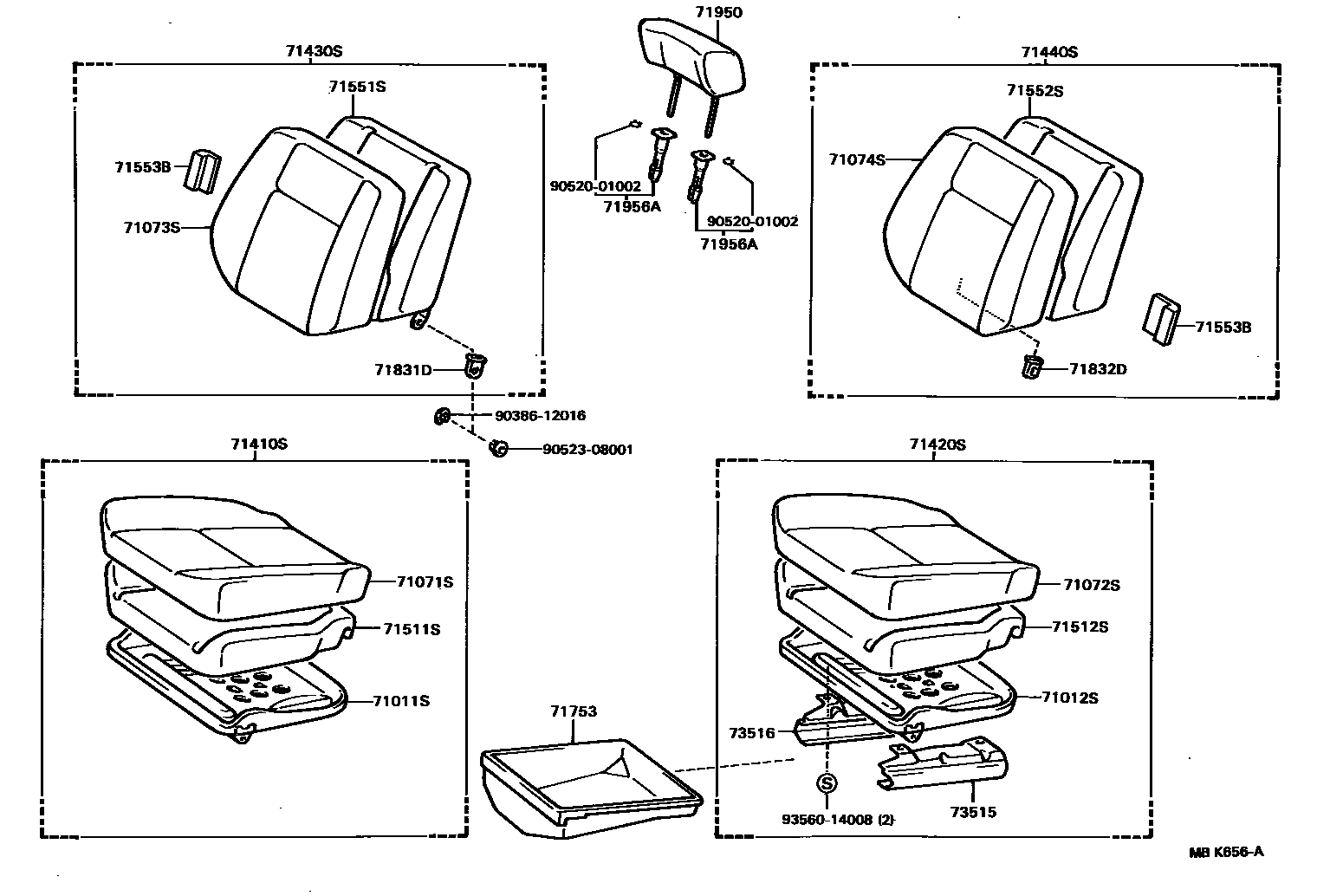

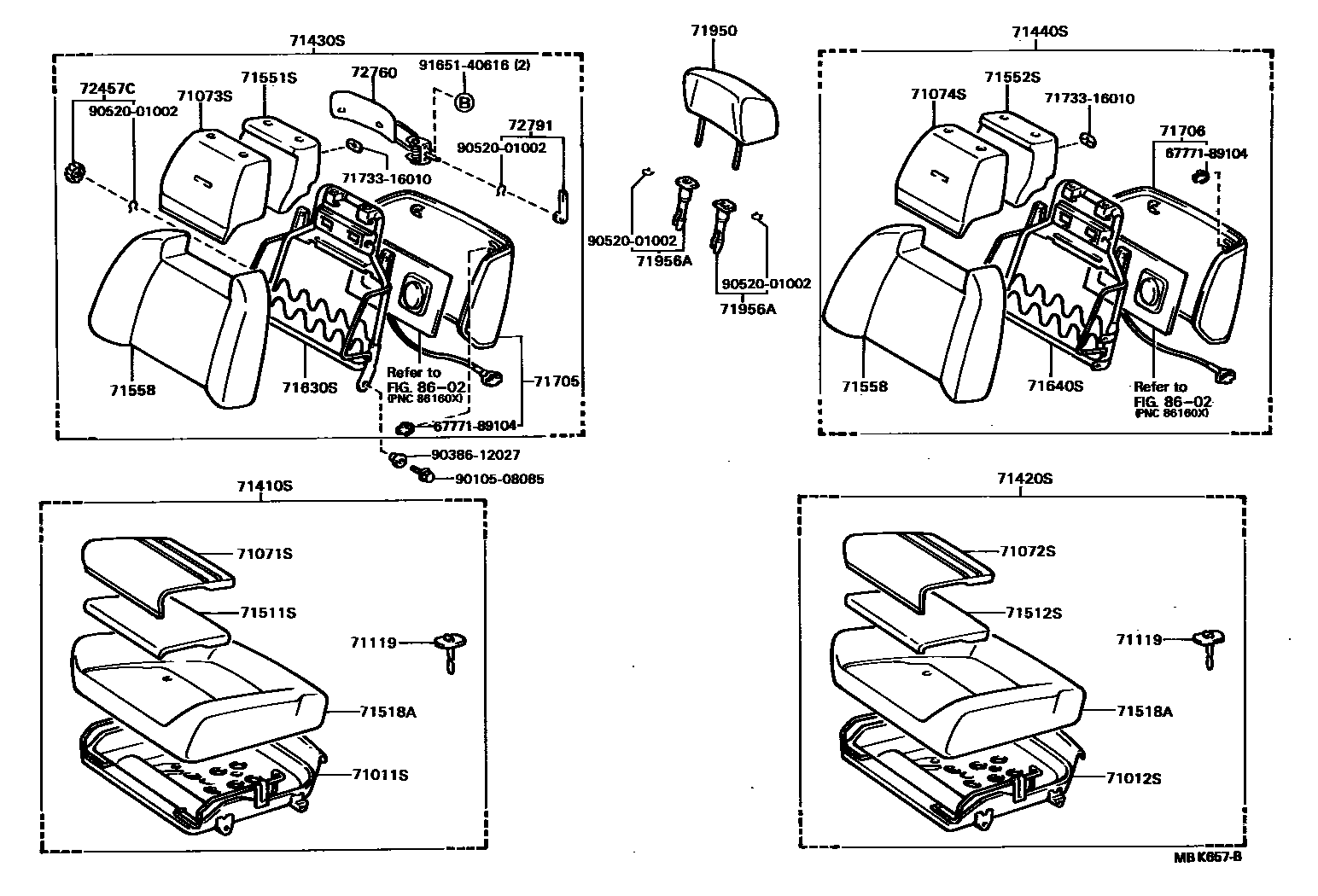

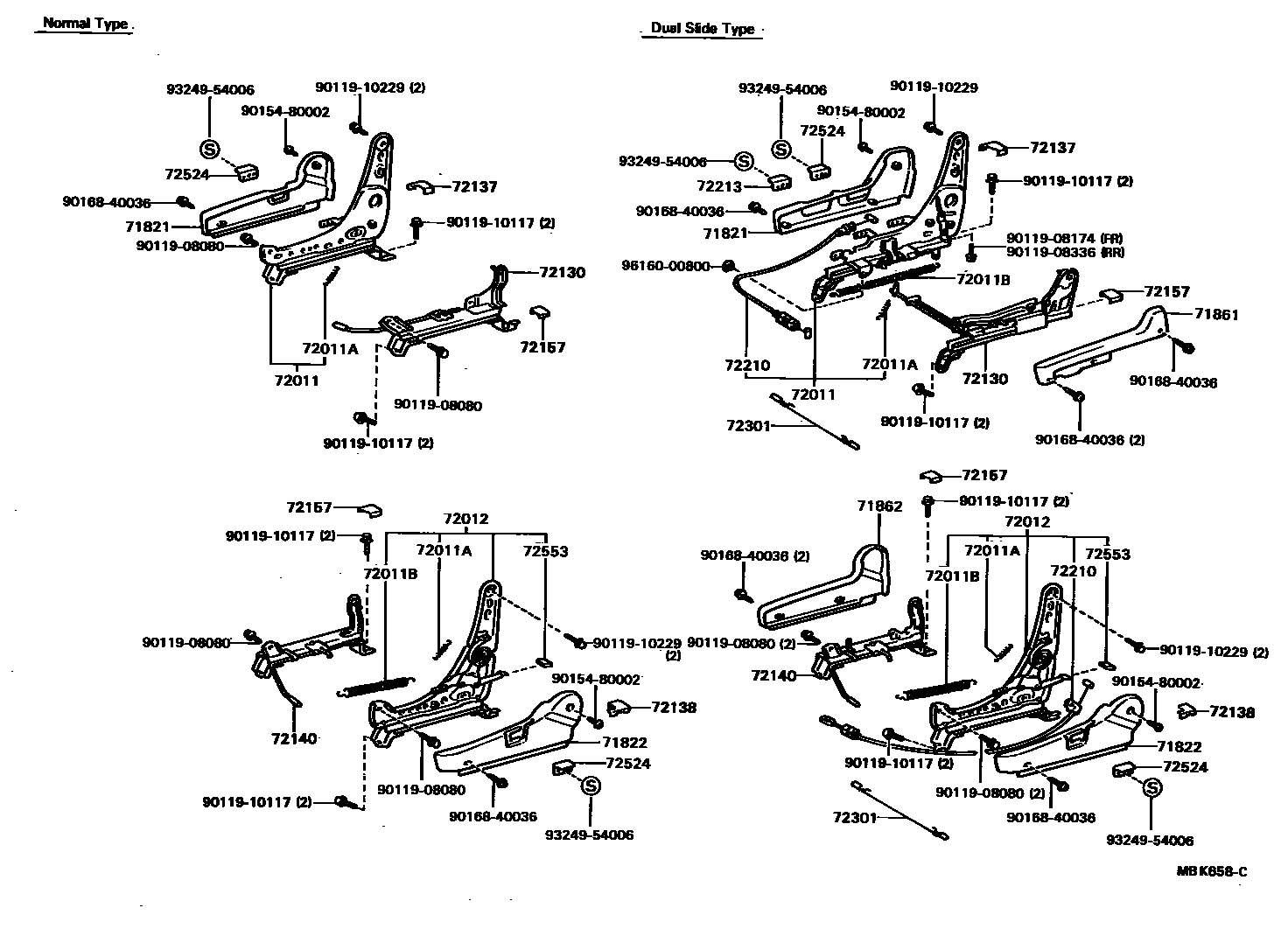

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-12190 · 71011-16030 · 71011-16040 |
| 71012S | Front left seat cushion frame sub-assembly | 71011-12190 · 71011-16030 |
| 71119 | Front seat cushion lining | 71119-16010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-16100 · 71513-16010 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-16100 · 71513-16010 |
| 71551S | Front right seat back cushion (for split seats) | 71505-16020 · 71553-16010 |
| 71552S | Front left seat back cushion (for split seats) | 71506-16020 · 71553-16010 |
| 71553B | Front B seat back cushion | 71553-16030 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-16130 · 71630-16140 · 71630-16160 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-16080 · 71640-16090 |
| 71753 | Front seat bottom bracket | 71753-12010 |
| 71831D | Front right seat hinge cover | 71831-10010 |
| 71832D | Front left seat hinge cover | 71831-10010 |
| 72011 | Front right seat outer adjuster sub-assembly | 72010-16150 · 72010-16160 · 72010-16170 |
| 72011A | Tension spring (for front seat outer adjusters) | 90506-18015 · 90506-20046 |
| 72011B | Tension spring (for front seat outer adjusters) | 90506-18036 · 90506-18057 |
| 72012 | Front left seat outer adjuster sub-assembly | 72020-16140 · 72020-16150 · 72020-16160 |
| 72130 | Right seat inner slide rail assembly | 72130-16100 · 72130-16110 · 72130-16120 |
| 72137 | Right seat outer slide rail cover | 72137-16020 |
| 72138 | Left seat outer slide rail cover | 72138-16020 |
| 72140 | Left seat inner slide rail assembly | 72140-16090 · 72140-16100 · 72140-16110 · 72140-16120 · 72140-16130 |
| 72157 | Seat inner slide rail bracket cover | 72157-16020 · 72158-16020 |
| 72210 | Seat slide rail control cable assembly | 72210-16120 · 72210-16130 |
| 72301 | Seat slide rail balance harness sub-assembly | 72301-12070 · 72301-16070 |
| 72553 | Seat back tilt pedal cover | 72553-12040 |
| 72760 | Right lumbar support adjuster assembly | 72750-16040 · 72750-16050 |
| 73515 | Front seat No. 1 bottom bracket guide rail | 73515-12020 |
| 73516 | Front seat No. 2 bottom bracket guide rail | 73516-12020 |
