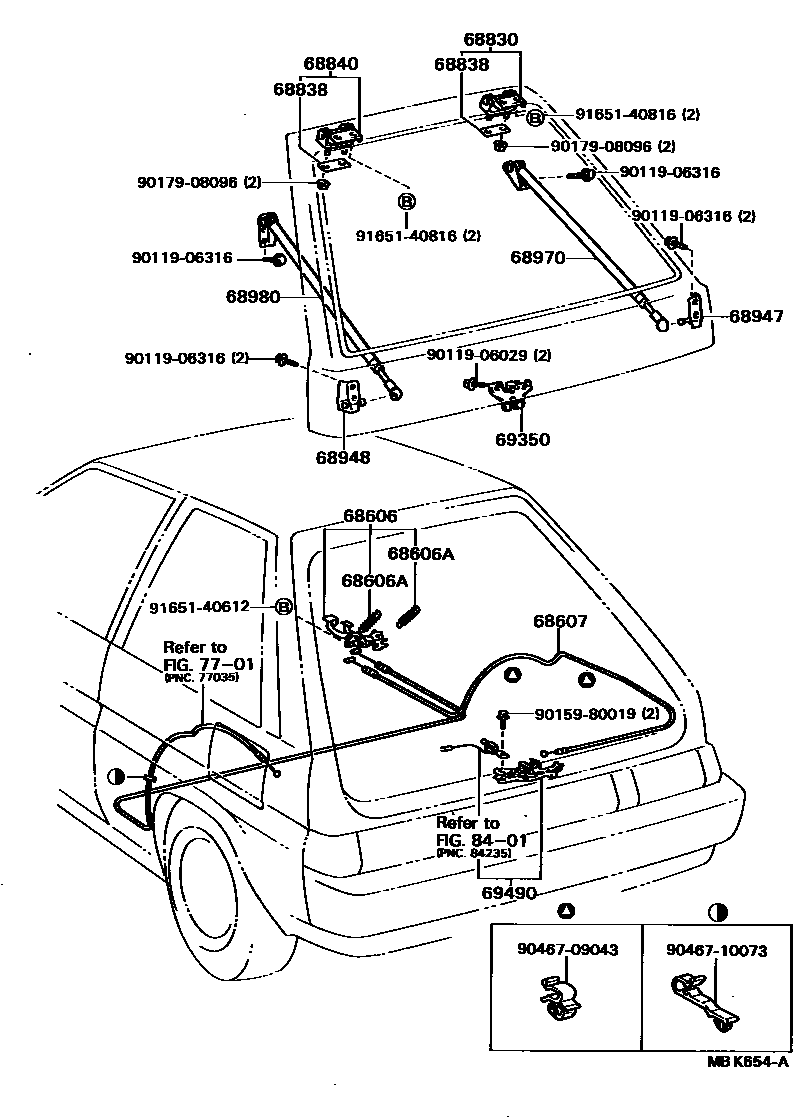

Toyota COROLLA 背门锁和背门把手 — Figure 6709
Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68606 | Rear door lock opening lever sub-assembly | 64606-12060 |
| 68606A | Tension spring (for the rear door lock opening lever) | 90506-09034 |
| 68607 | Rear door lock control cable sub-assembly | 64607-16160 |
| 68830 | Back door right hinge assembly | 68801-16030 |
| 68838 | Back door hinge No. 1 gasket | 68838-10010 |
| 68840 | Back door left hinge assembly | 68801-16030 |
| 68947 | Back door right damping strut lower bracket | 68947-16010 |
| 68948 | Rear door left damping strut lower bracket | 68948-16010 |
| 68970 | Back door right support rod assembly | 68950-16110 · 68950-16130 · 68950-16160 · 68950-16180 |
| 68980 | Back door support rod assembly | 68960-16010 · 68960-16030 · 68960-16060 · 68960-16080 |
| 69350 | Rear door lock assembly | 69350-16090 |
| 69490 | Back door lock assembly | 69430-16120 · 69430-16130 |
