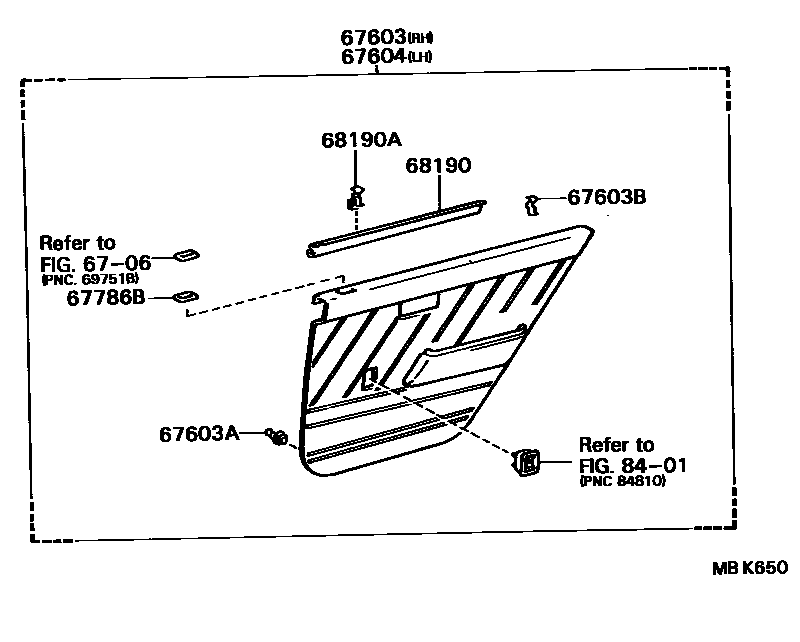

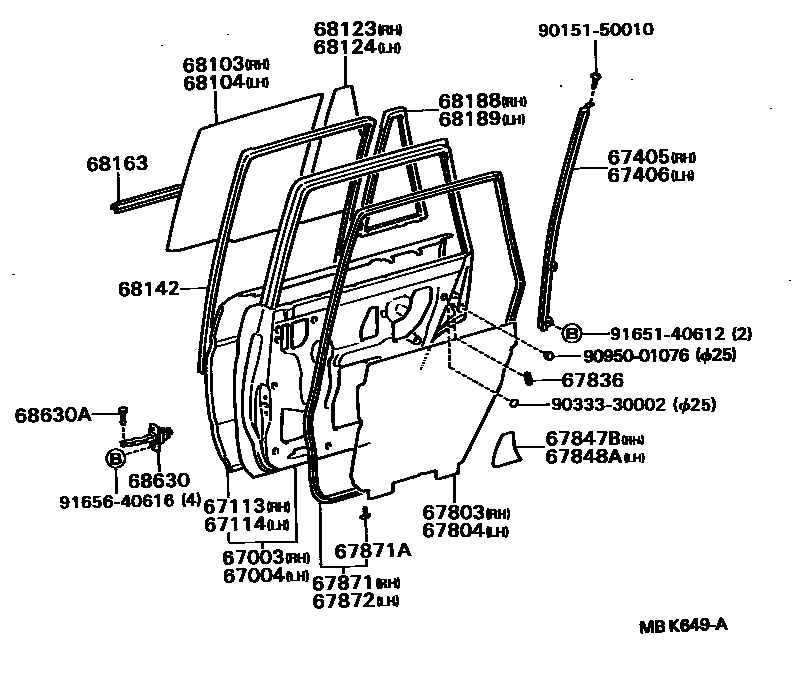

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-16150 |
| 67004 | Left rear door panel sub-assembly | 67004-16150 |
| 67113 | Right rear door outer panel | 67113-16050 · 67113-16070 |
| 67114 | Left rear door outer panel | 67114-16050 · 67114-16070 |
| 67405 | Right rear door window divider sub-assembly | 67407-16050 |
| 67406 | Left rear door window divider sub-assembly | 67408-16050 |
| 67603A | Fixings (for rear door trim) | 67771-16080 |
| 67603B | Catch (for rear door trim panel) | 67774-10010 |
| 67786B | Door lock button collar fastener (for rear doors) | 67786-12010 |
| 67803 | Right rear door access hole cover sub-assembly | 67841-16080 · 67841-16100 |
| 67804 | Left rear door access hole cover sub-assembly | 67841-16100 · 67842-16050 |
| 67836 | Right rear door lock child restraint cover | 67836-14010 |
| 67847B | No. 1 right rear door ventilator seal | 67847-16010 |
| 67848A | No. 1 left rear door ventilator seal | 67848-16010 |
| 67871 | Right rear door sealing strip | 67871-16120 |
| 67871A | Fixings (for rear door sealing strip) | 67868-30040 |
| 67872 | Left rear door sealing strip | 67872-16120 |
| 68103 | Right rear door glass sub-assembly | 68113-16080 · 68113-16090 |
| 68104 | Left rear door glass sub-assembly | 68114-16080 · 68114-16090 |
| 68123 | Right rear door window glass | 68123-16080 · 68123-16090 |
| 68124 | Left rear door window glass | 68124-16080 · 68124-16090 |
| 68142 | Rear door glass lift chute | 68142-16060 |
| 68163 | Rear door glass outer seal strip | 68180-16030 · 68230-16020 |
| 68188 | Right rear door corner window seal | 68188-16050 |
| 68189 | Left rear door corner window seal | 68189-16050 |
| 68190 | Rear door glass inner sealing strip assembly | 68173-16030 · 68173-16040 · 68174-16030 · 68174-16040 |
| 68190A | Catch (for rear door glass inner sealing strip assembly) | 67773-16040 |
| 68630 | Rear door opening limiter assembly | 68630-16040 |
| 68630A | Pin (for rear door opening limiter) | 68617-90A00 |
