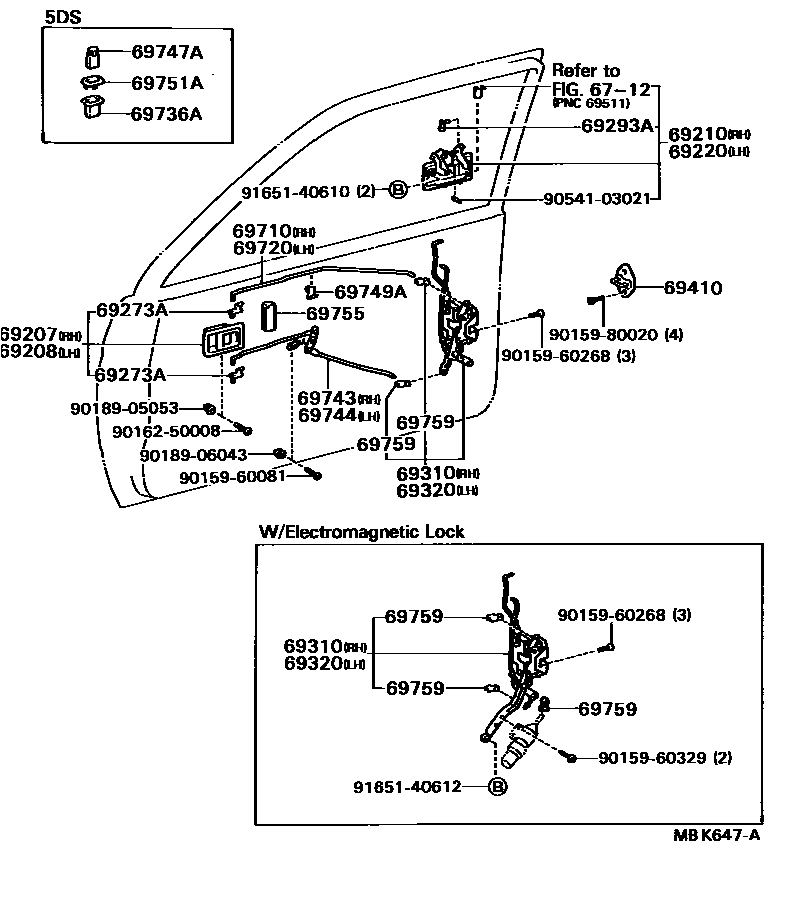

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69210 | Right front door outer handle assembly | 69210-16050 |
| 69220 | Left front door outer handle assembly | 69220-16050 |
| 69273A | Inner door handle lever buckle (for front door) | 69759-20060 · 69759-20070 · 69759-22040 · 69759-22050 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 |
| 69310 | Right front door lock assembly | 69310-16100 · 69310-16130 · 69310-16150 · 69310-16160 |
| 69320 | Left front door lock assembly | 69320-16100 · 69320-16130 · 69320-16150 · 69320-16160 |
| 69410 | Front door lock plate assembly | 69410-12050 · 69410-87001 |
| 69710 | Right front door opening control linkage assembly | 69711-16050 · 69711-16060 |
| 69720 | Left front door opening control linkage assembly | 69712-16050 · 69712-16060 |
| 69736A | Front door lock link guide block | 69736-12030 |
| 69743 | Right front door lock control link No. 1 | 69750-16010 |
| 69744 | Left front door No. 1 locking control link | 69760-16010 |
| 69749A | Front door lock No. 1 link clamp | 69749-20010 |
| 69755 | Front door lock link silencer | 69759-14030 |
| 69759 | Rear door lock No. 1 control link buckle | 69759-20040 · 69759-20050 · 69759-20080 · 69759-20090 · 69759-20100 · 69759-20110 |
