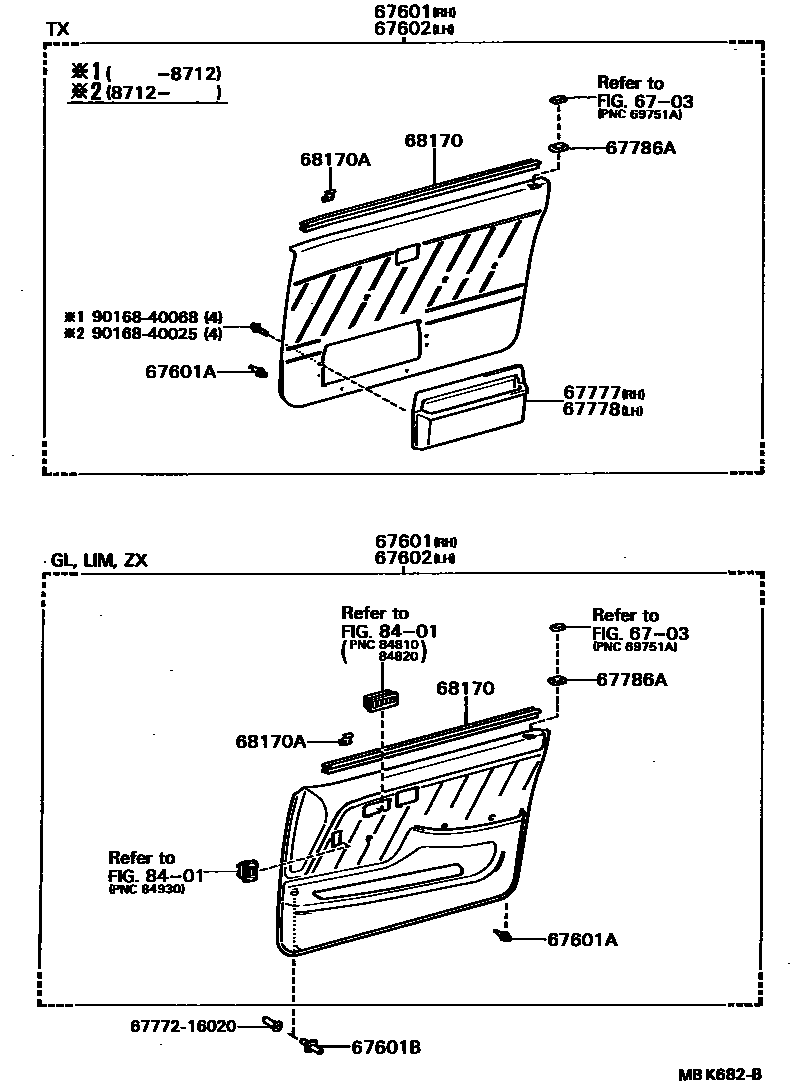

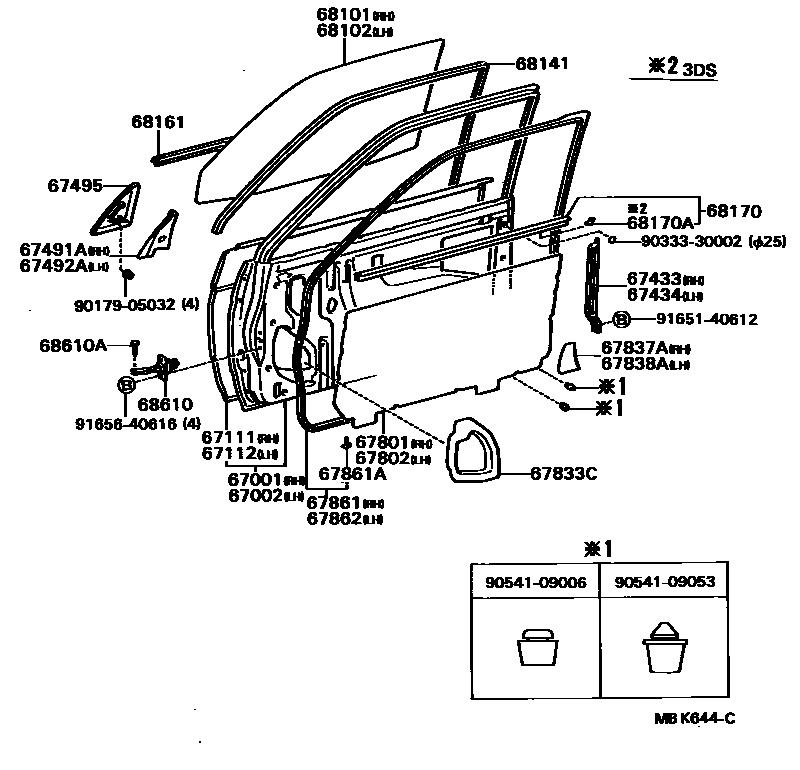

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-16150 · 67001-16200 · 67001-16210 · 67001-16280 |
| 67002 | Left front door panel sub-assembly | 67002-16110 · 67002-16160 · 67002-16170 · 67002-16240 |
| 67111 | Outer right front door panel | 67111-16150 · 67111-16160 · 67111-16170 · 67111-16180 |
| 67112 | Outer left front door panel | 67112-16130 · 67112-16140 · 67112-16150 · 67112-16160 |
| 67433 | Right front door window rear lower frame | 67433-16040 · 67433-16050 |
| 67434 | Left front door window rear lower frame | 67434-16040 · 67434-16050 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-16050 · 67491-16070 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-16050 · 67492-16070 |
| 67495 | Front door lower door frame upper cover | 67495-16030 · 67495-16040 · 67495-16050 · 67495-16060 · 67496-16030 · 67496-16040 · 67496-16050 · 67496-16060 |
| 67601A | Fixings (for front door trim) | 67771-14030 · 67771-16050 · 67771-16080 · 67771-32010 |
| 67786A | Door lock button collar fastener (for front doors) | 67786-12010 |
| 67801 | Right front door No. 1 hole cover sub-assembly | 67831-16100 · 67831-16130 · 67831-16150 · 67831-16160 · 67831-16170 |
| 67802 | Left front door No. 1 hole cover sub-assembly | 67831-16100 · 67831-16150 · 67832-16100 |
| 67833C | Front door speaker hole cover | 67833-16010 |
| 67837A | Right front door ventilator seal | 67837-16020 |
| 67838A | Left front door ventilator seal | 67838-16020 |
| 67861 | Right front door seal | 67861-16210 · 67861-16220 |
| 67861A | Fixing piece (for front door sealing strip) | 67868-30040 |
| 67862 | Left front door seal | 67862-16210 · 67862-16220 |
| 68101 | Right front door glass sub-assembly | 68111-16130 · 68111-16140 · 68111-16160 · 68111-16170 |
| 68102 | Left front door glass sub-assembly | 68112-16130 · 68112-16140 · 68112-16160 · 68112-16170 |
| 68141 | Front door glass lift chute | 68141-16150 · 68141-16160 |
| 68161 | Front door glass outer seal strip | 68160-16070 · 68160-16080 · 68210-16060 · 68210-16070 |
| 68170 | Front door glass inner sealing strip assembly | 68170-16080 · 68171-16070 · 68172-16070 · 68172-16080 |
| 68170A | Catch (for front door glass inner sealing strip assembly) | 67773-16040 · 68211-10030 |
| 68610 | Front door opening limiter assembly | 68610-10020 |
| 68610A | Pin (for front door opening limiter) | 68617-90A00 |
