Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

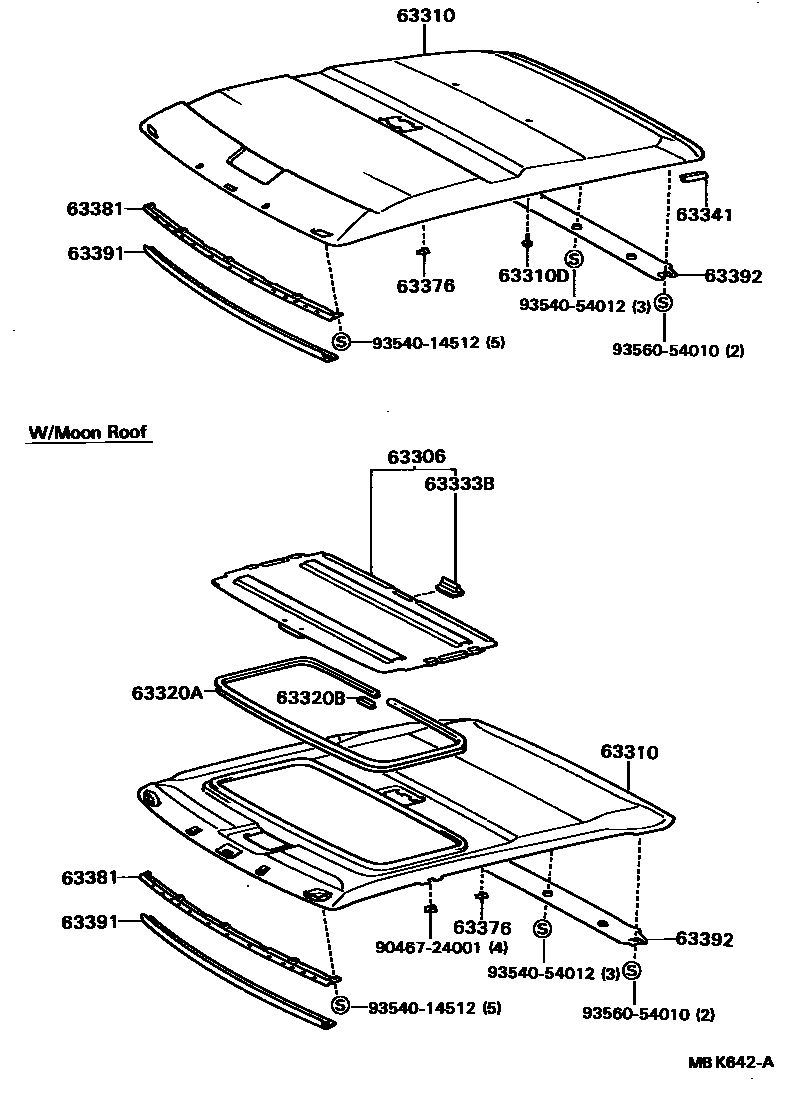

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63333B | Sunshade decorative panel protective parts | 63333-30010 |
| 63341 | No. 1 roof silencer mat | 63343-16010 |
| 63376 | Lined clips | 63395-12020 |
| 63381 | Front lining fastener | 63381-16030 |
