Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 3 PNC and OE references.

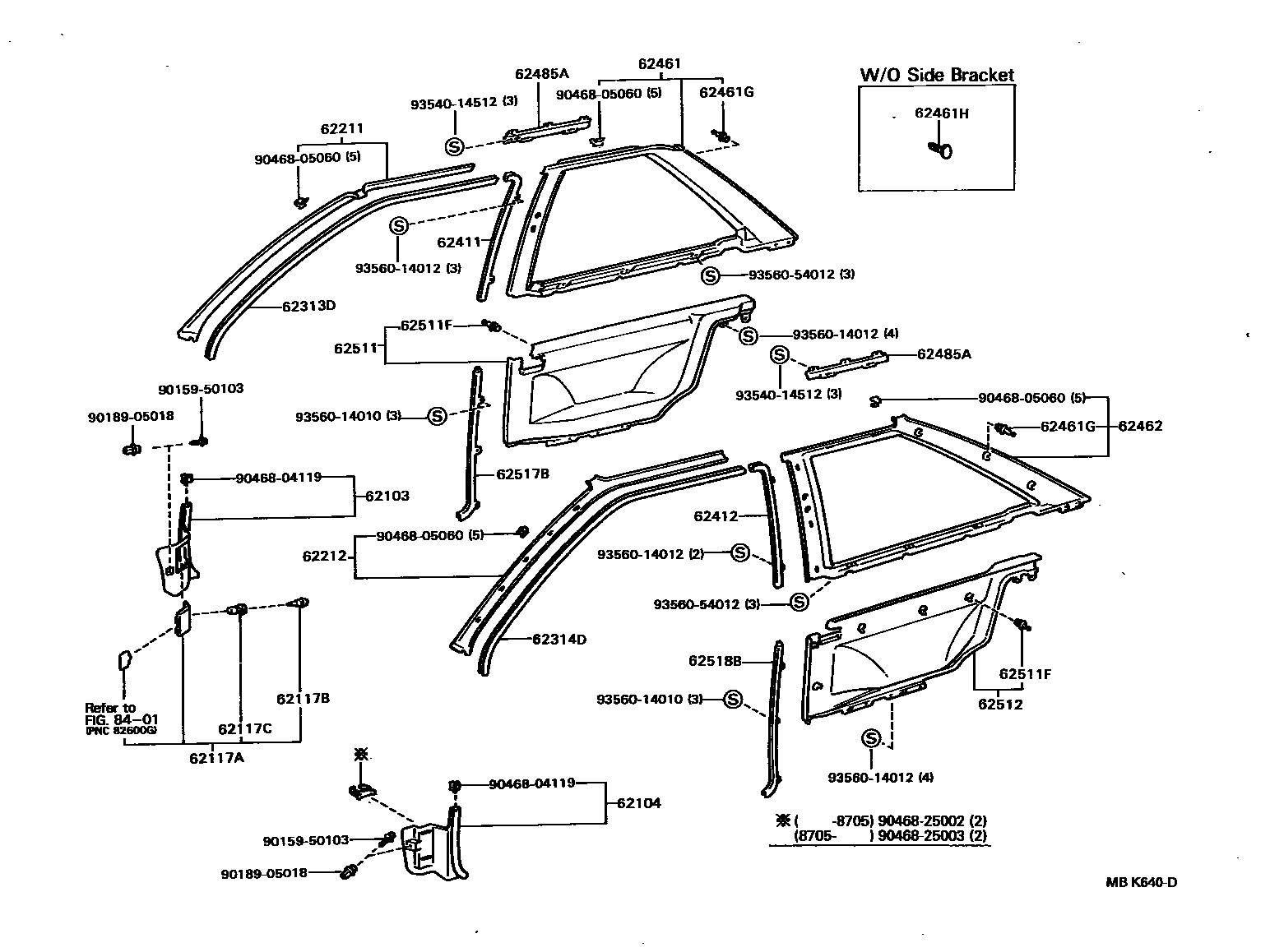

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — MBK640D
内饰板和车门防水胶条 — MBK640D (198605 – 999999)

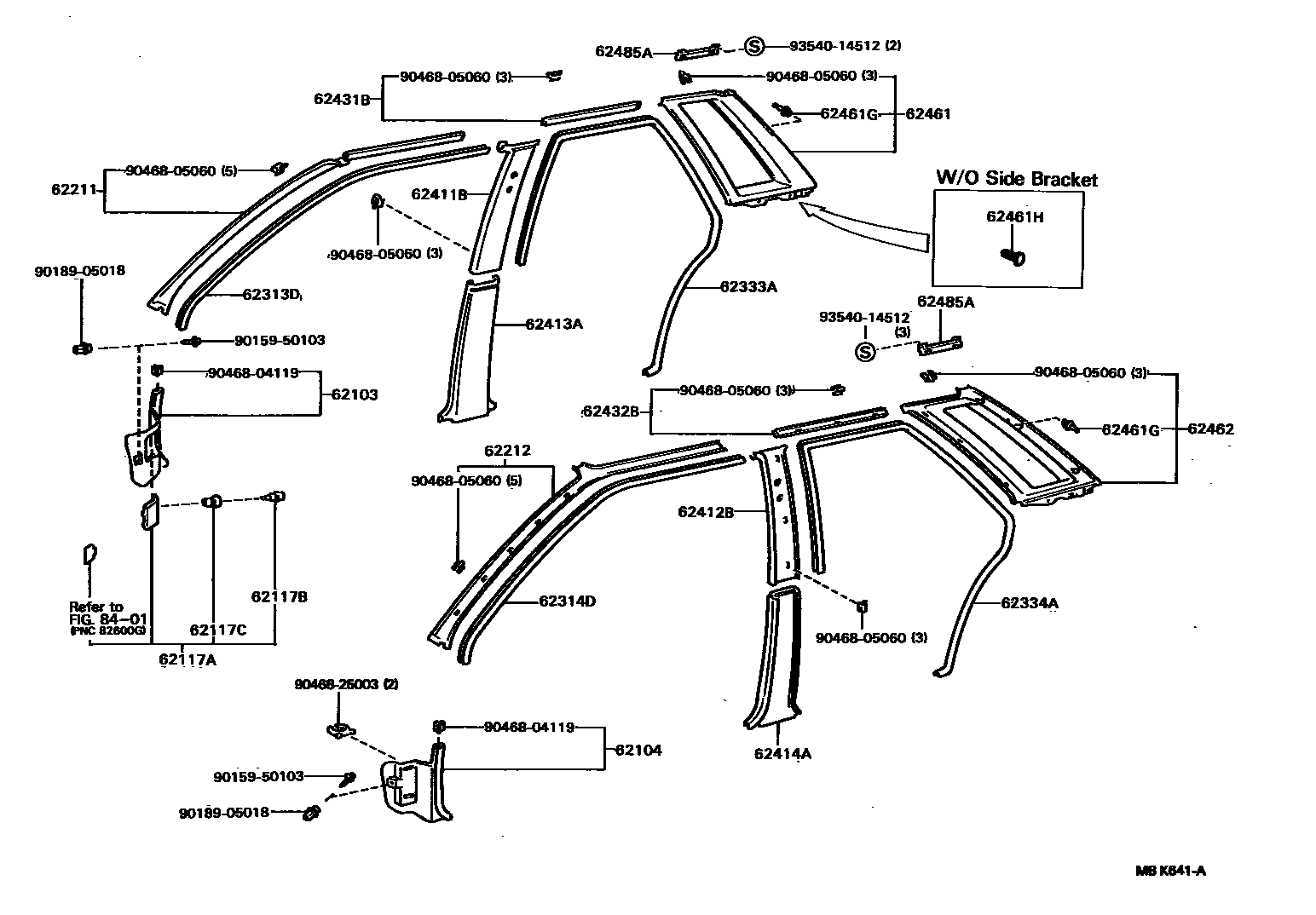

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — MBK641A
内饰板和车门防水胶条 — MBK641A (198605 – 999999)

PNC and OE references

PNCPart nameOE numbers
62461Gdoor trim panel fixings67771-14040
62485ARoof side interior panel fixings62485-16010 · 62485-16020
62511FFixings (for inner decorative panels on side panels)67771-32010
