Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

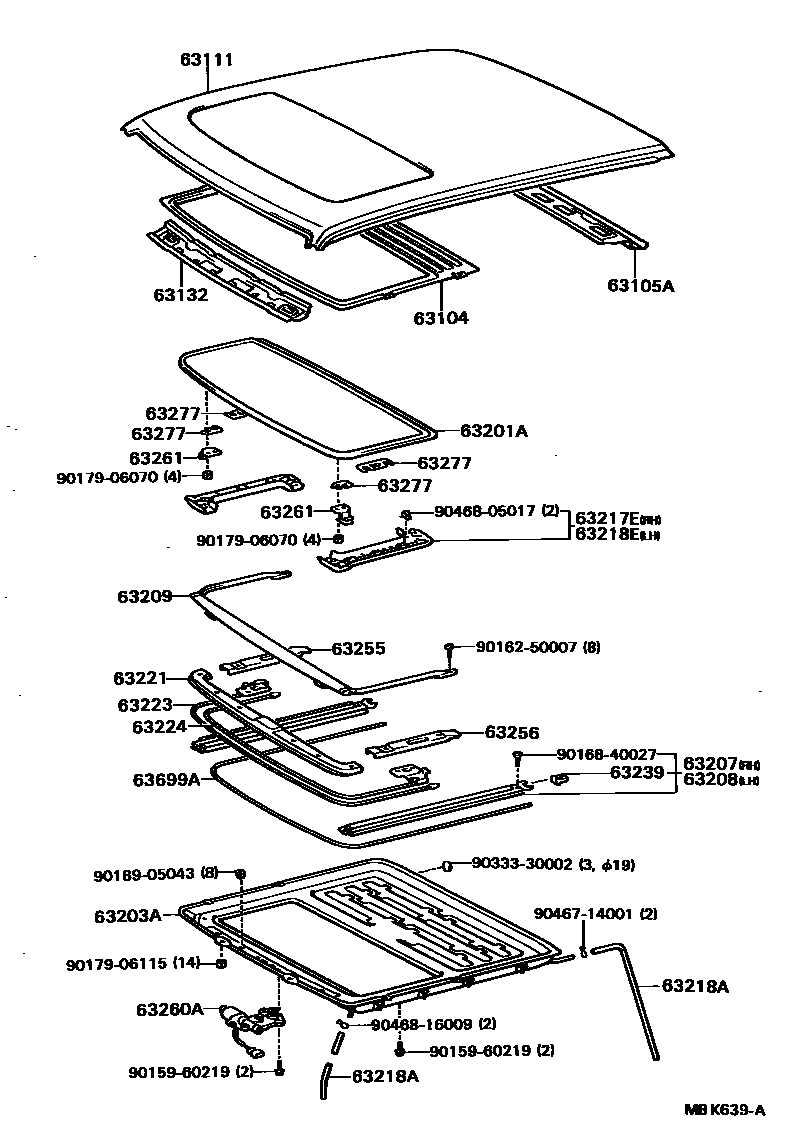

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63104 | Center roof panel reinforcement sub-assembly | 63141-16040 · 63141-16050 · 63142-16020 |
| 63105A | Back door opening frame sub-assembly | 63105-16030 · 63105-16040 · 63105-16050 · 63105-16060 |
| 63111 | roof panel | 63111-16130 · 63111-16140 · 63111-16150 |
| 63132 | Windshield inner roof panel | 63102-16020 |
| 63132A | Windshield roof shock absorber | 63126-16010 |
| 63143B | No. 3 roof panel reinforcement | 63143-16010 |
| 63201A | Sliding sunroof or removable sunroof panel sub-assembly | 63201-16030 |
| 63203A | Sliding sunroof or removable sunroof frame sub-assembly | 63203-16040 |
| 63207 | Right sliding sunroof guide rail sub-assembly | 63207-16020 |
| 63208 | Left sliding sunroof guide rail sub-assembly | 63208-16020 |
| 63209 | Roof deflector sub-assembly | 63209-16020 |
| 63217E | Right front sliding sunroof trim | 63217-16010 |
| 63218A | Hoses (for sliding or removable sunroof drainage) | 63249-10010 · 63249-16060 |
| 63218E | Left front sliding sunroof trim | 63218-16010 |
| 63221 | Sliding sunroof cable duct | 63221-16020 |
| 63223 | Right sliding sunroof transmission cable | 63223-24010 |
| 63224 | Left sliding sunroof transmission cable | 63224-24010 |
| 63239 | Sliding roof panel stop | 63239-24010 |
| 63255 | Right sliding sunroof guide cover | 63255-16010 |
| 63256 | Left sliding sunroof guide cover | 63255-16010 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12040 |
| 63261 | Front sliding sunroof slider | 63261-16020 · 63262-16020 |
| 63277 | Sliding skylight stringer gasket | 63277-24010 · 63277-30020 |
| 63699A | Sliding sunroof guide seals | 63699-16010 |
