Toyota COROLLA 角窗 — Figure 6103

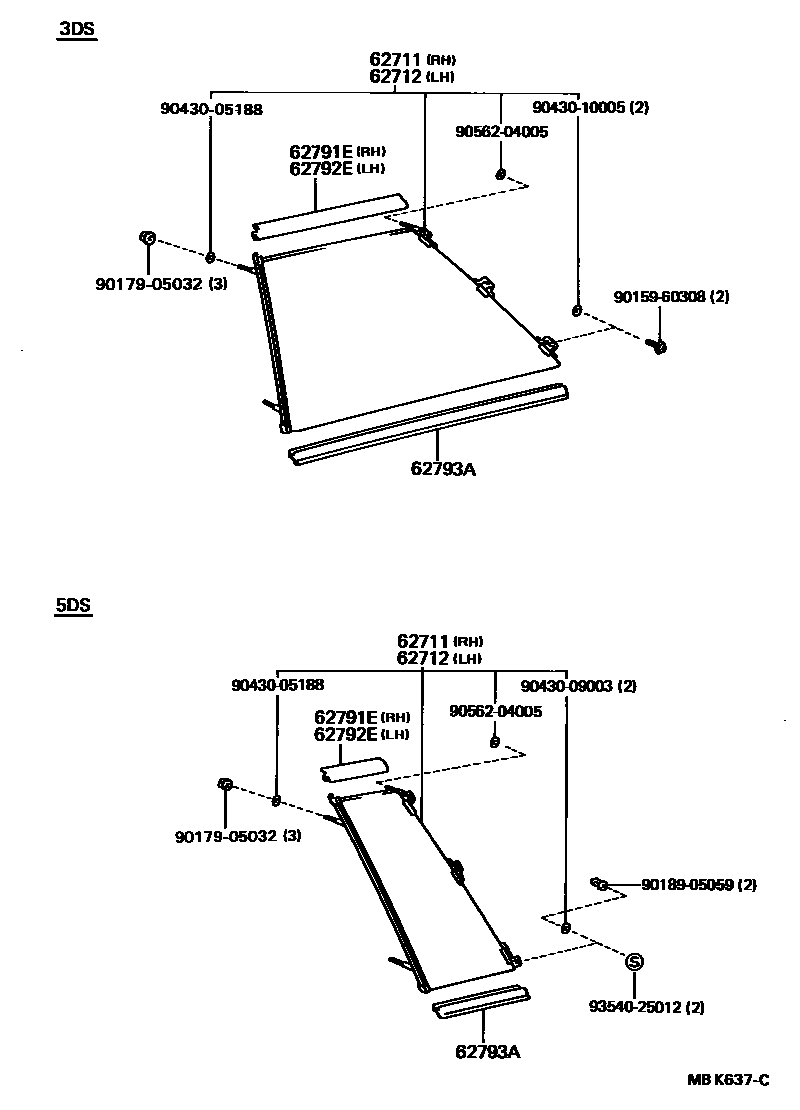

Toyota COROLLA EPC diagram 6103, 角窗, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62711 | Right corner window glass | 62710-16120 · 62710-16130 · 62710-16150 · 62710-16160 |
| 62712 | Left corner window glass | 62720-16120 · 62720-16130 · 62720-16150 · 62720-16160 |
| 62791E | Protective strip on right corner window | 62791-16010 · 62791-16020 |
| 62792E | Protective strip on left corner window | 62791-16010 · 62792-16010 |
| 62793A | Protective strips under corner windows | 62793-16010 · 62793-16020 · 62793-16030 · 62793-16040 |
