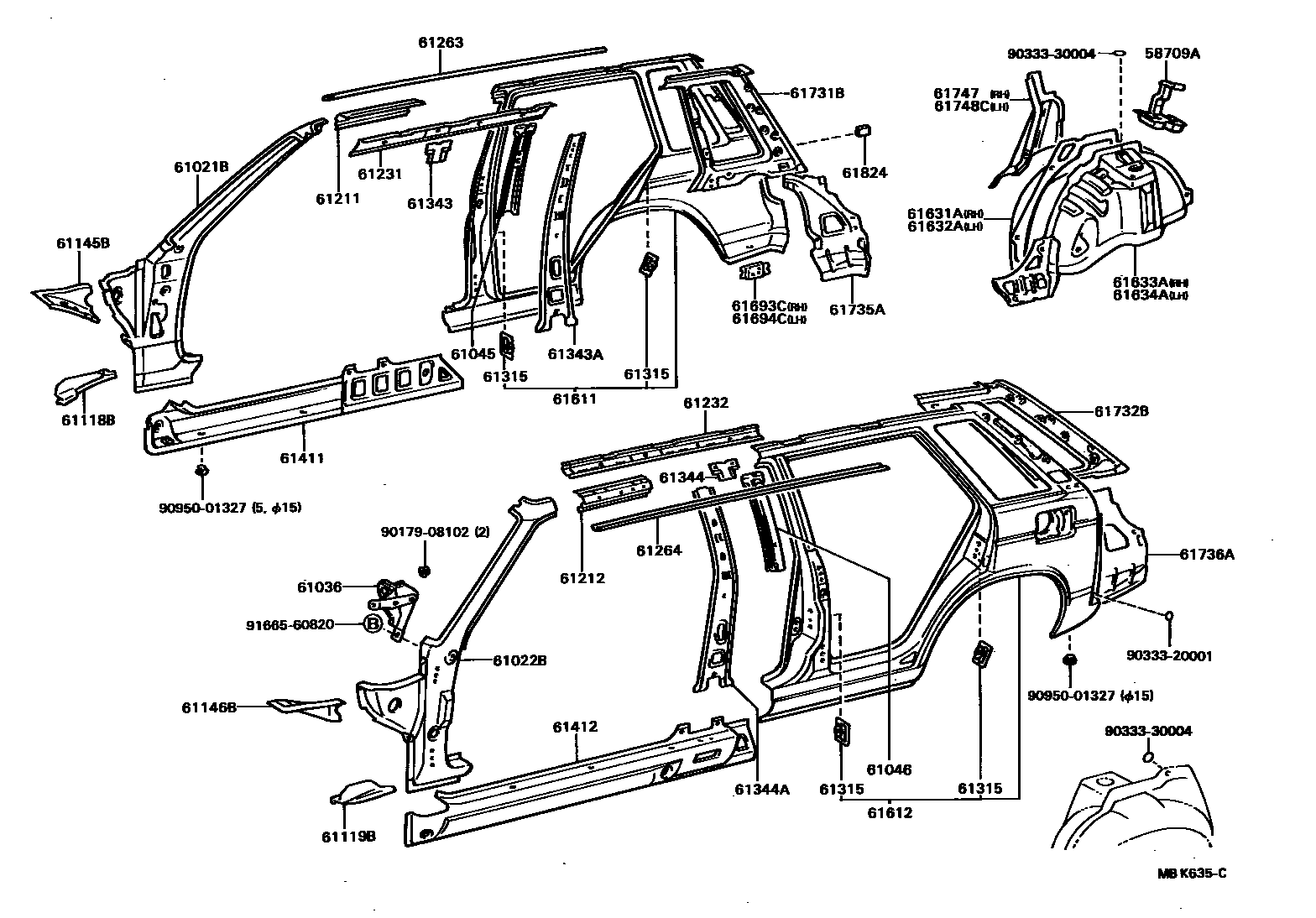

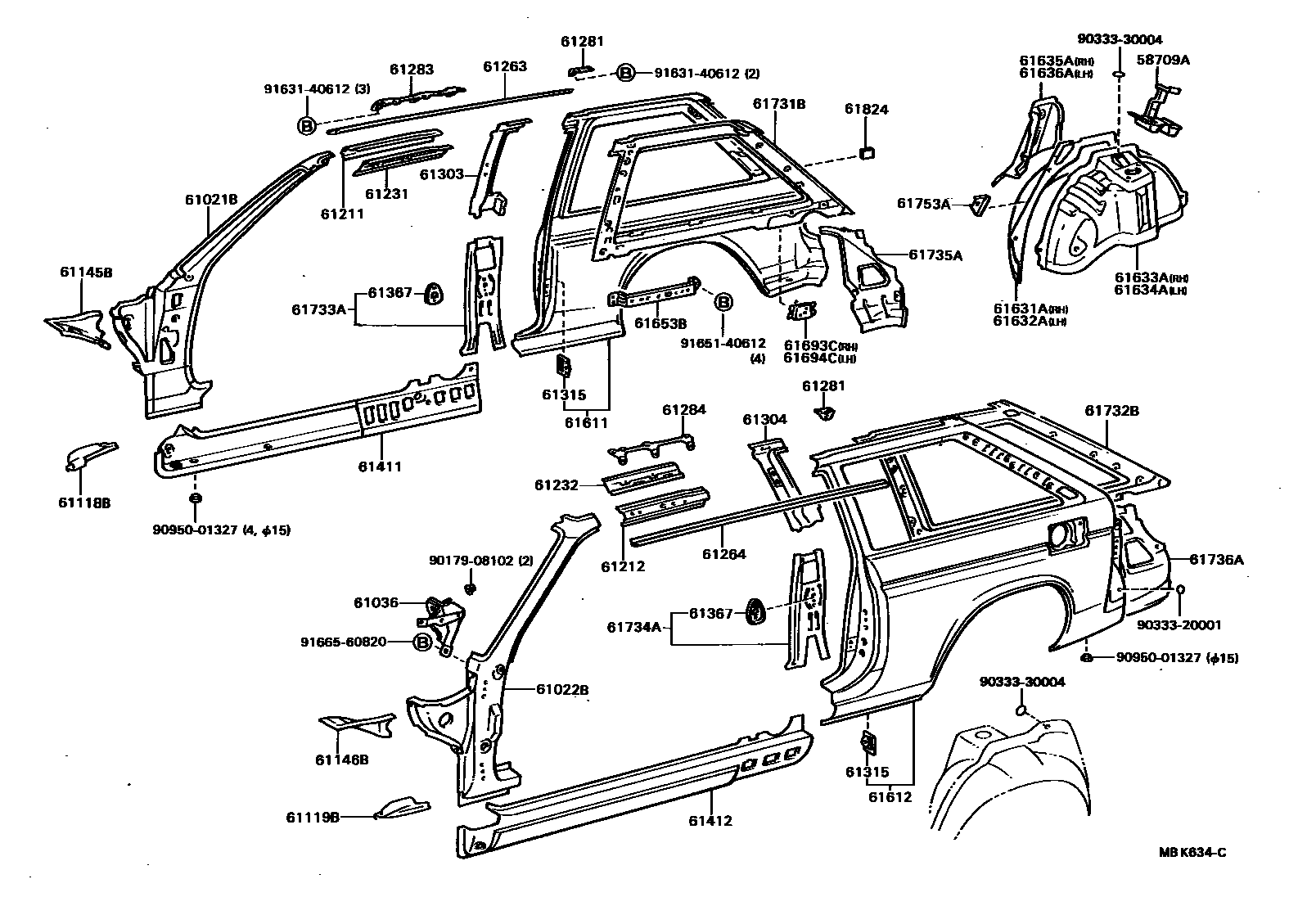

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 2 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58709A | Jack bracket sub-assembly | 58709-16010 |
| 61021B | Right body front upper pillar sub-assembly | 61021-16130 |
| 61022B | Left body front upper pillar sub-assembly | 61022-16150 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61036-16010 |
| 61045 | Right seat belt to center pillar reinforcement sub-assembly | 61045-16050 · 61045-16080 |
| 61046 | Left seat belt to center pillar reinforcement sub-assembly | 61046-16050 · 61046-16080 |
| 61118B | Seal from body front pillar to right front fender | 61118-16010 |
| 61119B | Seal from body front pillar to left front fender | 61119-16010 |
| 61145B | Right body front pillar lower corner panel | 61145-16010 |
| 61146B | Left body front pillar lower corner panel | 61146-16010 |
| 61211 | Roof right outer longitudinal beam | 61211-16040 · 61211-16080 |
| 61212 | Roof left outer longitudinal beam | 61212-16040 · 61212-16080 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-16120 · 61231-16140 |
| 61232 | Roof left inner longitudinal beam | 61232-16120 · 61232-16140 |
| 61263 | Roof right rear gutter | 61267-16060 · 61267-16070 |
| 61264 | Roof left rear gutter | 61268-16060 · 61268-16070 |
| 61281 | Sliding skylight frame No. 1 mounting bracket | 61281-16030 |
| 61283 | Sliding sunroof frame No. 3 right mounting bracket | 61283-16030 |
| 61284 | Sliding sunroof frame No. 3 left mounting bracket | 61284-16030 |
| 61303 | Right body center pillar reinforcement sub-assembly | 61303-16020 |
| 61304 | Left body center pillar reinforcement sub-assembly | 61304-16020 |
| 61315 | Door latch plate fixing parts | 61315-22020 |
| 61343 | Right inner middle pillar | 61341-16030 |
| 61343A | Right body inner center pillar | 61343-16030 |
| 61344 | Left side inner center pillar | 61342-16030 |
| 61344A | Left body inner center pillar | 61344-16030 |
| 61367 | Seat belt anchors to center pillar lower reinforcement | 61367-14010 |
| 61411 | Right door outer sill panel | 61401-16120 · 61401-16130 · 61401-16160 |
| 61412 | Left door outer sill panel | 61402-16120 · 61402-16130 · 61402-16160 |
| 61611 | Right side hoarding | 61601-16310 · 61601-16311 · 61601-16350 · 61601-16351 · 61601-16390 · 61601-16391 · 61601-16640 · 61601-16641 · 61601-16670 · 61601-16671 |
| 61612 | left side panel | 61602-16350 · 61602-16351 · 61602-16650 · 61602-16651 · 61602-16710 · 61602-16711 · 61602-16730 · 61602-16731 · 61602-16750 · 61602-16751 · 61602-16830 · 61602-16831 · 61602-16840 · 61602-16841 · 61602-16860 · 61602-16861 · 61602-16870 · 61602-16871 |
| 61631A | Right wheel cover outer panel | 61631-16130 · 61631-16140 |
| 61632A | Left side wheel cover outer panel | 61632-16130 · 61632-16140 |
| 61633A | Right wheel housing lining panel | 61607-16080 · 61607-16120 |
| 61634A | Left side wheel housing lining panel | 61608-16100 · 61608-16150 |
| 61635A | Right wheel cover bracket | 61635-16050 |
| 61636A | Left side wheel cover bracket | 61636-16040 |
| 61653B | Bottom panel side trim bracket | 61653-16010 |
| 61693C | Rear right seat backrest assembly fastener | 61693-16020 |
| 61694C | Rear left seat back assembly fastener | 61694-16010 |
| 61731B | Roof right inner panel | 61731-16130 · 61731-16140 |
| 61732B | Roof left inner panel | 61732-16130 · 61732-16140 |
| 61733A | Right front roof inner panel | 61733-16040 |
| 61734A | Left front roof inner panel | 61734-16040 |
| 61735A | Right rear roof inner panel | 61735-16070 · 61735-16080 |
| 61736A | Left rear roof inner panel | 61736-16060 · 61736-16080 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-16010 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-16010 |
| 61753A | Side panel lower fixings | 61753-16020 |
| 61824 | Noise Control Panel No. 1 | 61824-12010 |
