Toyota COROLLA 中央扶手箱和支架 — Figure 5806

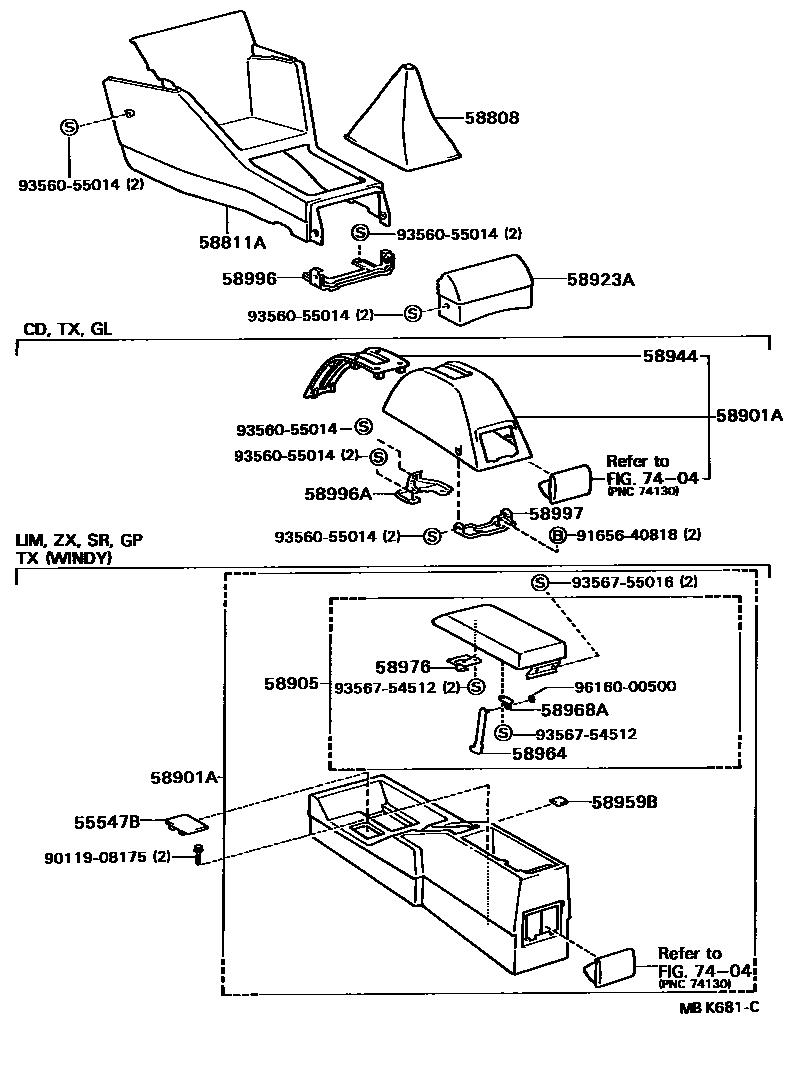

Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58944 | Parking brake hole cover | 58941-10010 |
| 58959B | Armrest box cover cushion | 58959-16010 |
| 58964 | Armrest box cover No. 1 stop | 58964-30030 |
| 58968A | Armrest box cover stop bracket | 58968-89101 |
| 58976 | Armrest box lid lock | 58976-22020 |
| 58996 | Armrest box No. 1 mounting bracket | 58995-16050 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-16040 |
| 58997 | Armrest box No. 3 mounting bracket | 58997-16060 |
