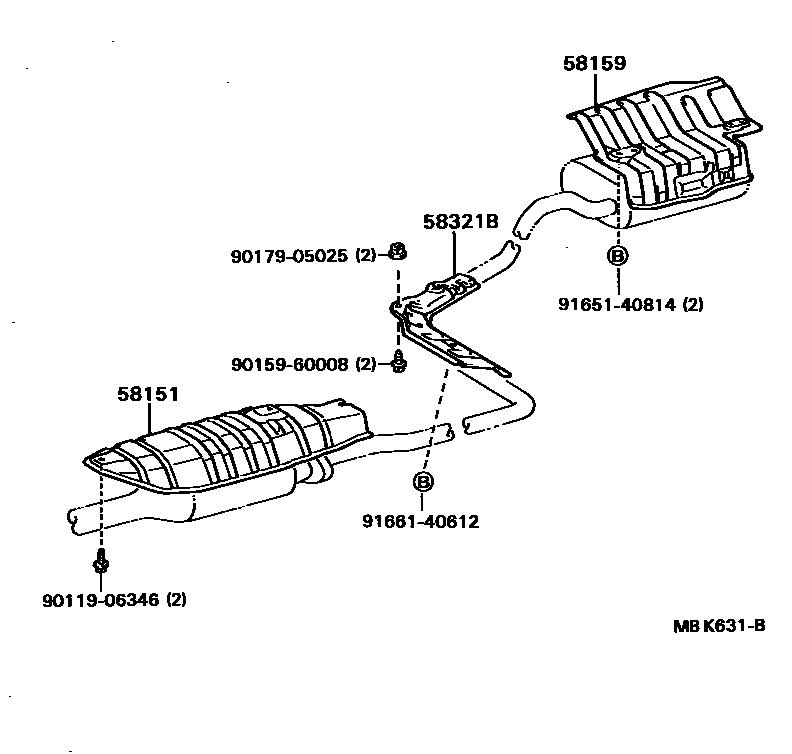

Toyota COROLLA 地板隔热垫 — Figure 5802
Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-16040 |
| 58159 | Main muffler heat insulation pad | 58327-16050 |
| 58321B | Rear Floor Insulating Mat No. 1 | 58321-16020 |
