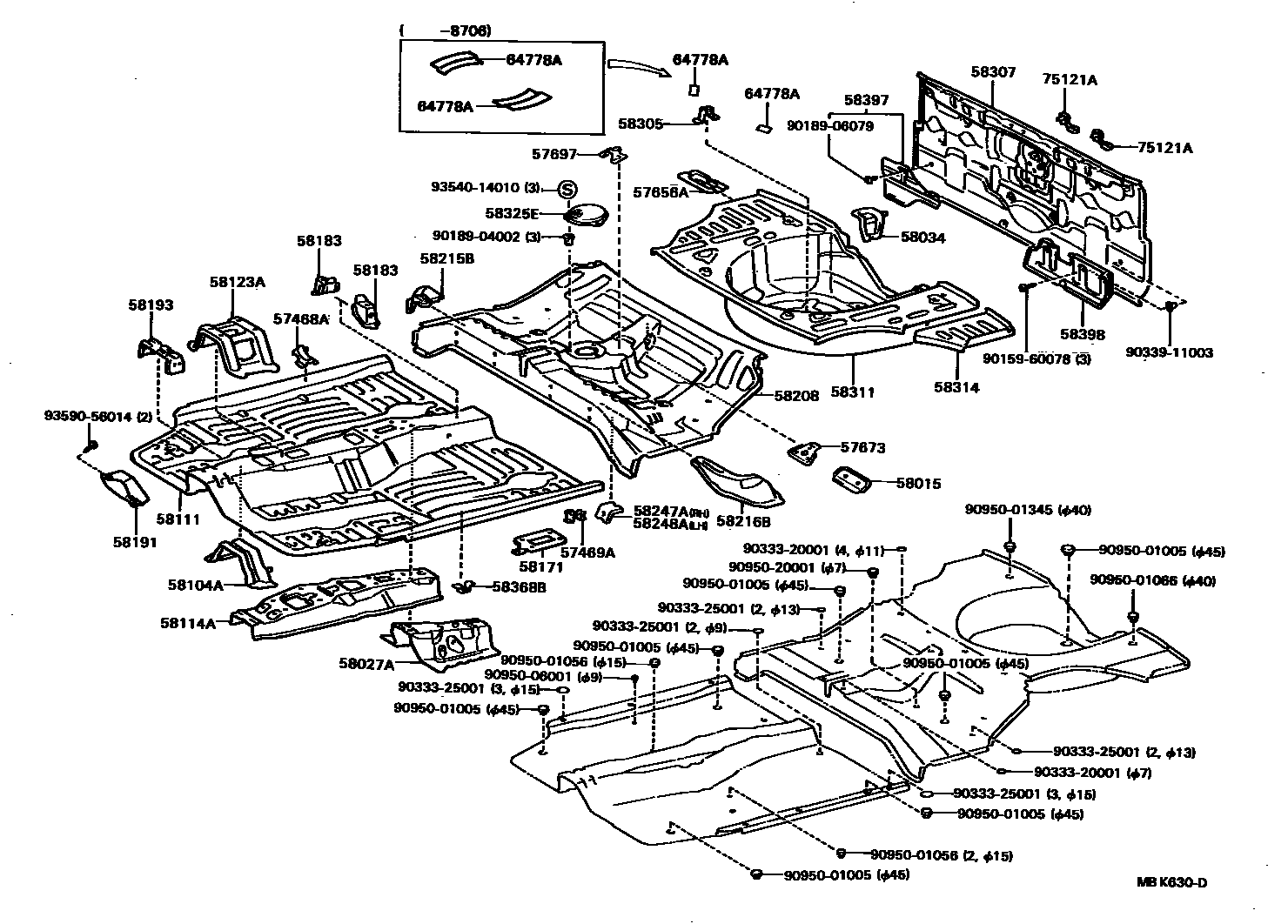

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57468A | Front right seat outer rear bracket | 57468-16030 |
| 57469A | Front left seat outer rear bracket | 57469-16030 |
| 57656A | No. 1 exhaust pipe mounting bracket | 57656-16010 |
| 57673 | Rear seat back hinge mounting bracket | 57607-16020 · 57673-16030 |
| 57697 | Rear seat cushion fixings | 57697-16010 |
| 58015 | Right seat belt anchor to floor pan reinforcement | 58015-16040 |
| 58027A | Seat belt anchor reinforcement sub-assembly | 58027-16010 · 58027-16020 |
| 58104A | Three-way catalytic converter bracket sub-assembly | 58104-10030 |
| 58111 | front floor pan | 58111-16060 |
| 58114A | front floor reinforcement | 58114-10030 |
| 58123A | shift lever bracket | 58123-10030 |
| 58171 | Parking brake base reinforcement | 58171-16020 |
| 58183 | Front seat inner mounting bracket | 58183-16010 · 58184-16020 |
| 58191 | Front floor footrest | 58191-16030 |
| 58193 | Dashboard bracket mounting bracket | 58193-16010 |
| 58208 | central floor base | 58211-16900 |
| 58215B | Rear right seat mounting bracket | 58215-16020 |
| 58216B | Rear left seat mounting bracket | 58216-16020 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-10010 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-10010 |
| 58305 | Spare tire clamp bracket sub-assembly | 58305-10011 |
| 58307 | Body lower back panel sub-assembly | 58307-16270 |
| 58311 | rear floor pan | 58311-16110 |
| 58314 | rear floor left panel | 58314-16030 |
| 58325E | Rear floor access hole cover | 58325-16020 · 58325-16040 |
| 58368B | No. 2 fuel pipe bracket | 58368-10010 |
| 58397 | Right lower back panel outer cover | 58397-16010 |
| 58398 | Left lower back panel outer cover | 58398-16010 |
| 64778A | Spare tire protection device | 64778-12020 · 64778-16020 |
| 75121A | Rear license plate bracket | 75121-16010 |
