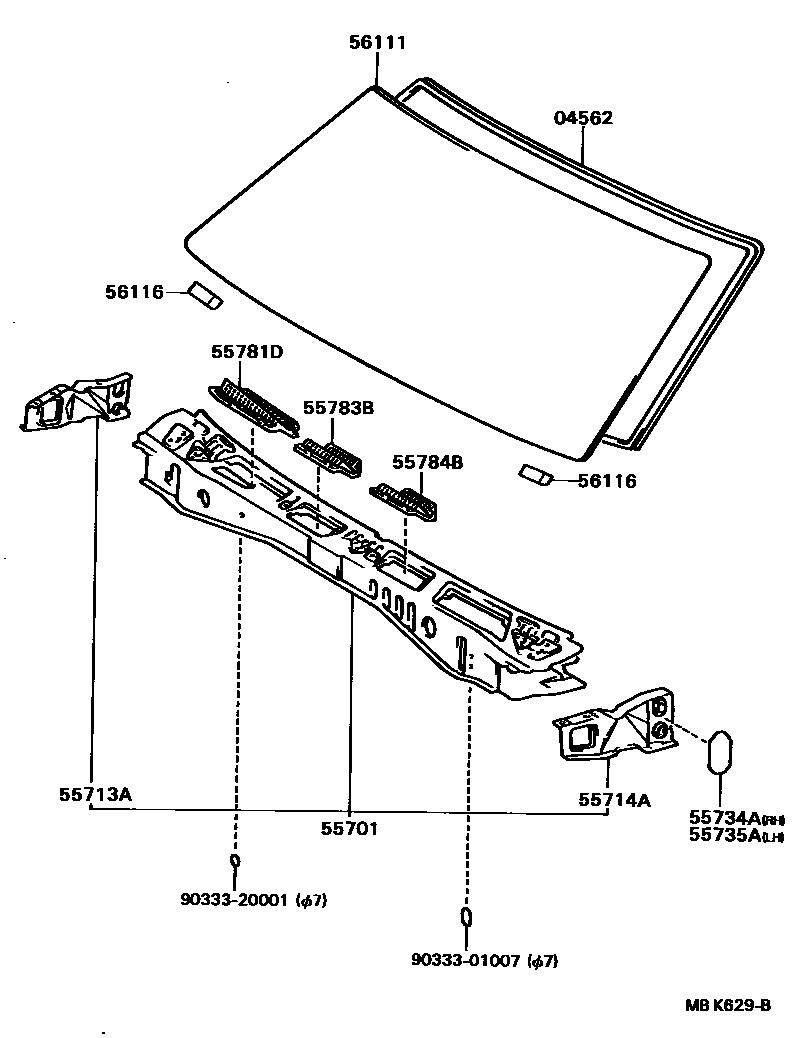

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04562 | Windshield sealing strip assembly | 04562-30040 |
| 55701 | Front apron sub-assembly | 55700-16080 · 55700-16100 · 55700-16160 |
| 55713A | Right front wall upper side panel | 55713-16030 |
| 55714A | Left front wall upper side panel | 55714-16030 |
| 55734A | Right waterproof cover | 55734-16030 |
| 55735A | Left waterproof cover panel | 55734-16030 |
| 55781D | Ventilation grille on right front apron | 55781-16040 · 55781-16050 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-16040 · 55783-16050 |
| 55784B | Ventilation grille on center cowl No. 2 | 55784-16020 · 55784-16030 |
| 56111 | windshield | 56111-16110 · 56111-16120 · 56111-16140 |
| 56116 | windshield spacer | 56116-24010 |
