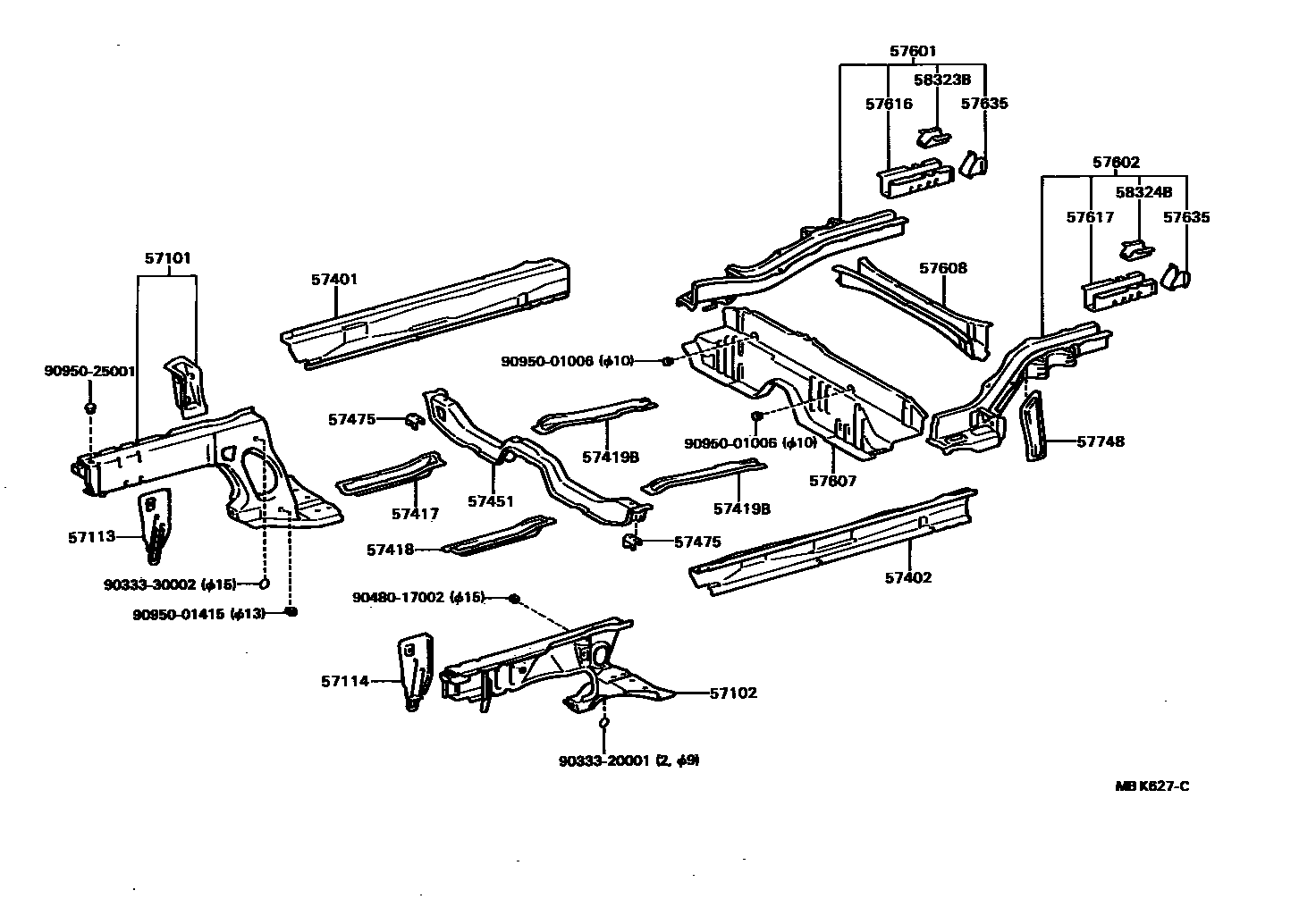

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57101 | Right front longitudinal beam sub-assembly | 57101-16150 · 57101-16170 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-16090 · 57102-16100 · 57102-16130 · 57102-16140 |
| 57113 | Right front longitudinal beam extension | 57201-10020 |
| 57114 | Left front longitudinal beam extension | 57202-10020 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-16110 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-16110 |
| 57417 | Front floor lower right reinforcement | 57417-10060 |
| 57418 | Front floor lower left reinforcement | 57418-10050 |
| 57419B | Front floor and rear lower reinforcement | 57419-10020 |
| 57451 | front floor cross member | 57451-10050 |
| 57475 | Front floor cross member panel | 57475-10030 · 57476-10020 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-16060 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-16060 |
| 57607 | Rear floor No. 1 cross member sub-assembly | 57605-16030 |
| 57608 | Rear floor No. 2 cross member sub-assembly | 57606-16050 · 57606-16070 |
| 57616 | Rear floor right rear longitudinal member | 57615-16905 |
| 57617 | Rear floor left rear longitudinal member | 57615-16905 |
| 57635 | Rear floor longitudinal beam reinforcement | 57645-16020 |
| 57748 | Lateral thrust rod bracket reinforcement | 57748-10010 |
| 58034 | Rear exhaust pipe bracket sub-assembly | 58034-16010 |
| 58323B | Rear bumper arm right bracket reinforcement | 58323-16030 |
| 58324B | Rear bumper arm left bracket reinforcement | 58324-16050 |
