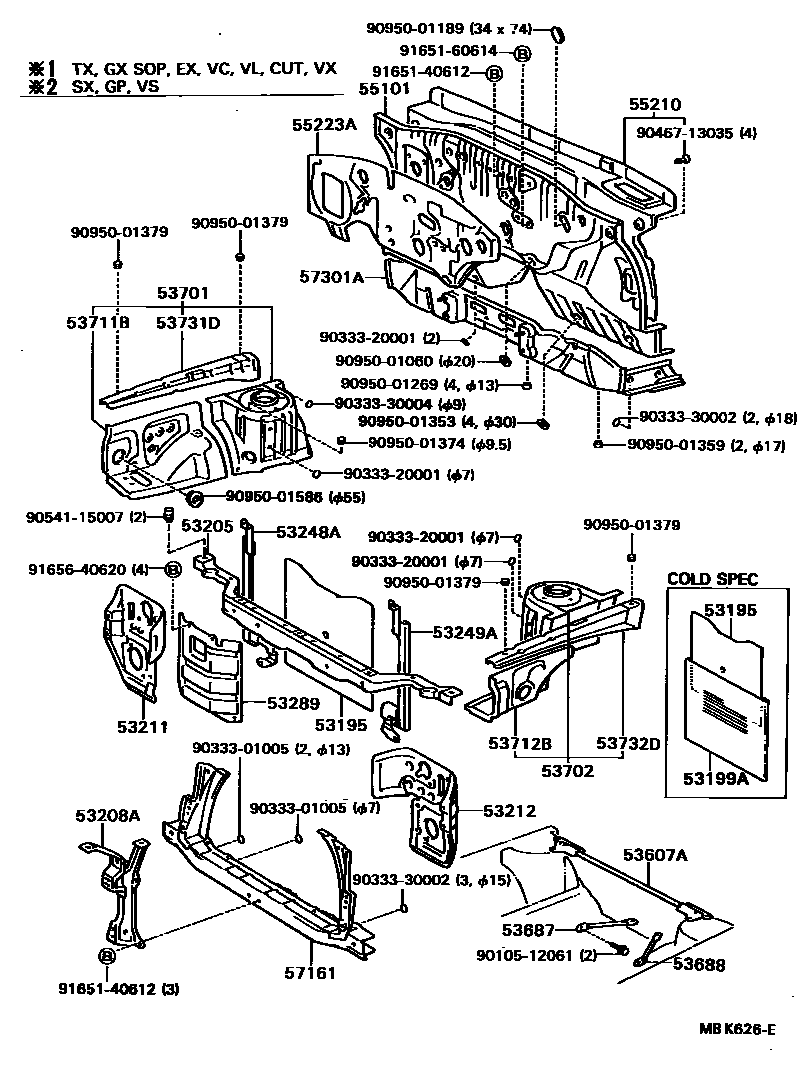

Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304
Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53195 | Radiator louvers | 53195-16010 |
| 53199A | Radiator louver bag | 53199-16010 |
| 53205 | Radiator upper bracket sub-assembly | 53205-16070 · 53205-16900 · 53205-16901 · 53216-16900 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-16030 · 53208-16040 · 53208-16050 · 53215-16030 |
| 53211 | Radiator right side support | 53211-16050 · 53211-16060 · 53211-16070 |
| 53212 | Radiator left support | 53212-16050 · 53212-16060 · 53212-16070 |
| 53248A | Radiator shutter right bracket | 53248-16030 |
| 53249A | Radiator shutter left bracket | 53249-16010 |
| 53289 | Radiator side baffle cover | 53289-16030 |
| 53607A | Front suspension center upper bracket sub-assembly | 53607-16010 |
| 53687 | Right side bracket (underside of front suspension to steering beam) | 53687-16010 |
| 53688 | Left side bracket (underside of front suspension to steering beam) | 53688-16010 |
| 53701 | Right front fender fender sub-assembly | 53701-16120 · 53701-16160 |
| 53702 | Left front fender fender sub-assembly | 53702-16090 |
| 53711B | Right front fender front fender | 53711-16090 · 53711-16110 |
| 53712B | Left front fender front fender | 53712-10190 |
| 53731D | Right front fender to cowl side upper beam | 53731-16020 |
| 53732D | Left front fender to cowl side upper beam | 53732-16020 |
| 55101 | Front apron sub-assembly | 55101-16220 · 55101-16230 · 55101-16260 |
| 55210 | Front wall insulation pad assembly | 55210-16060 · 55210-16070 |
| 55223A | Front wall outer heat insulation pad | 55223-16010 |
| 57161 | front cross member | 57161-16901 · 57161-16903 · 57161-16904 · 57161-16905 |
| 57301A | Steering housing support beam sub-assembly | 57301-16010 |
