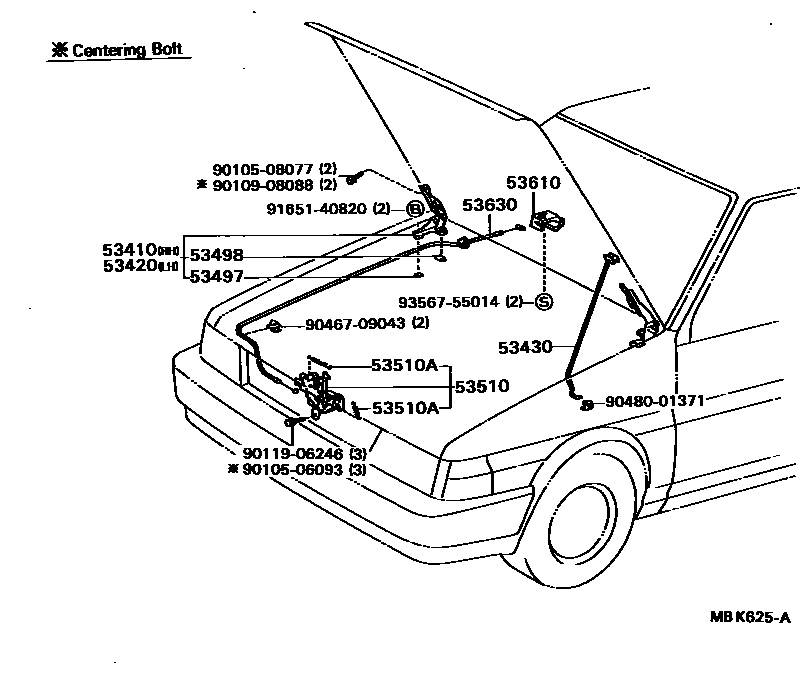

Toyota COROLLA 发动机盖锁和铰链 — Figure 5303
Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-16040 |
| 53420 | Engine cover left hinge assembly | 53420-16020 |
| 53430 | Engine cover support rod assembly | 53440-16010 · 53440-16030 |
| 53497 | No. 1 engine cover hinge gasket | 53497-14070 |
| 53498 | No. 2 engine cover hinge gasket | 53498-14010 |
| 53510 | Engine cover lock assembly | 53510-16090 |
| 53510A | Tension spring (for hood lock) | 90506-09029 · 90506-20008 |
| 53630 | Engine hood lock control cable assembly | 53630-16130 |
