Toyota COROLLA 后保险杠及附件 — Figure 5202

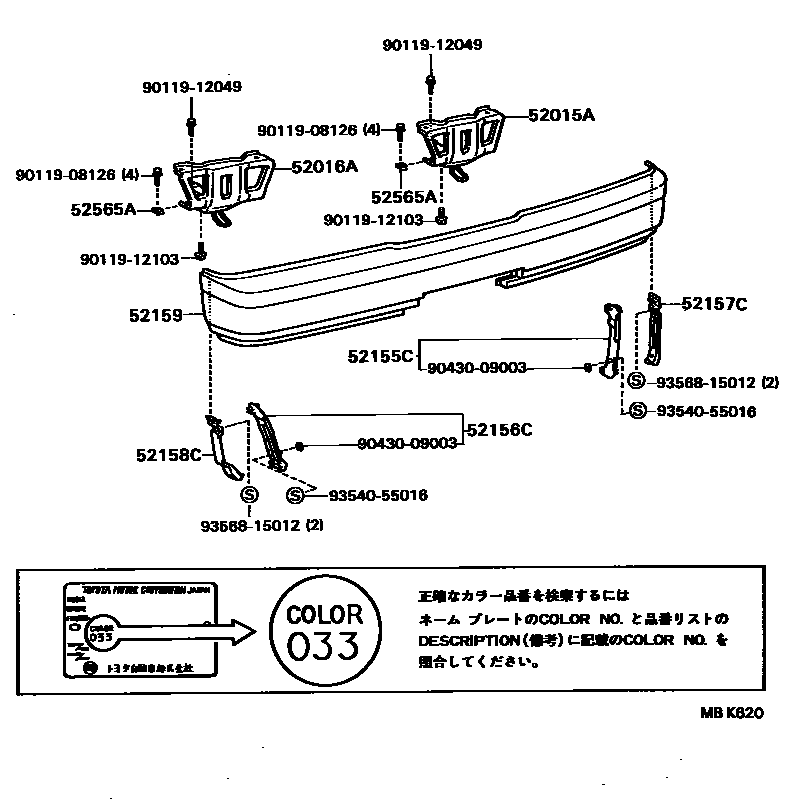

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-16070 |
| 52016A | Rear bumper left arm sub-assembly | 52016-16060 |
| 52155C | Rear bumper No. 1 right side bracket | 52155-16080 |
| 52156C | Rear bumper No. 1 left side bracket | 52156-16080 |
| 52157C | Rear bumper No. 2 right side bracket | 52157-16060 |
| 52158C | Rear bumper No. 2 left side bracket | 52158-16060 |
| 52159 | rear bumper cover | 52159-16140 |
| 52565A | Rear bumper lower fixing bracket | 52565-12040 |
