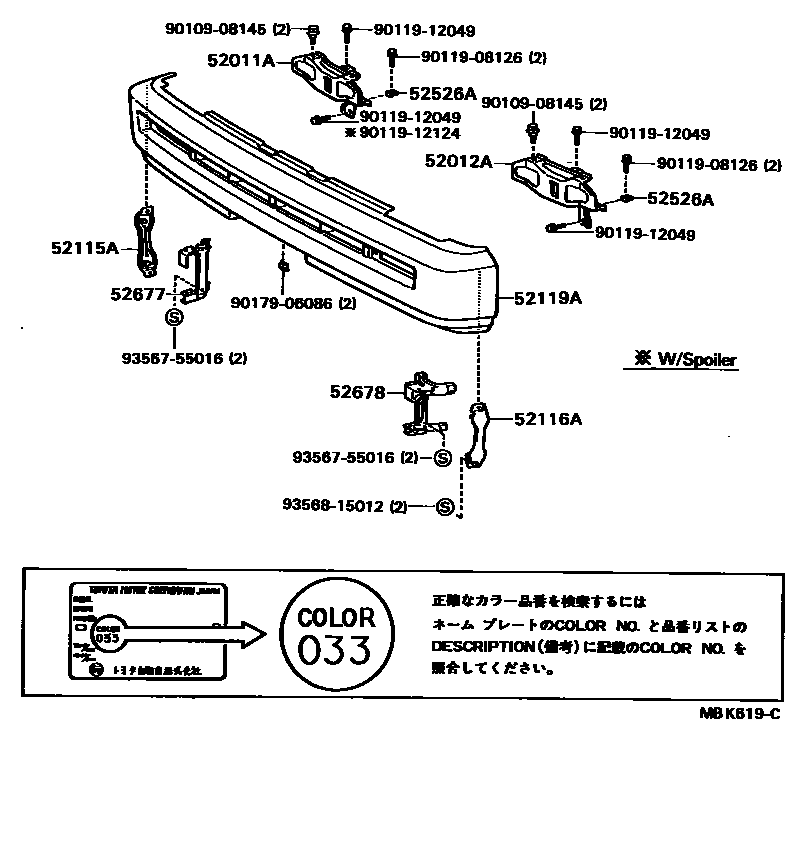

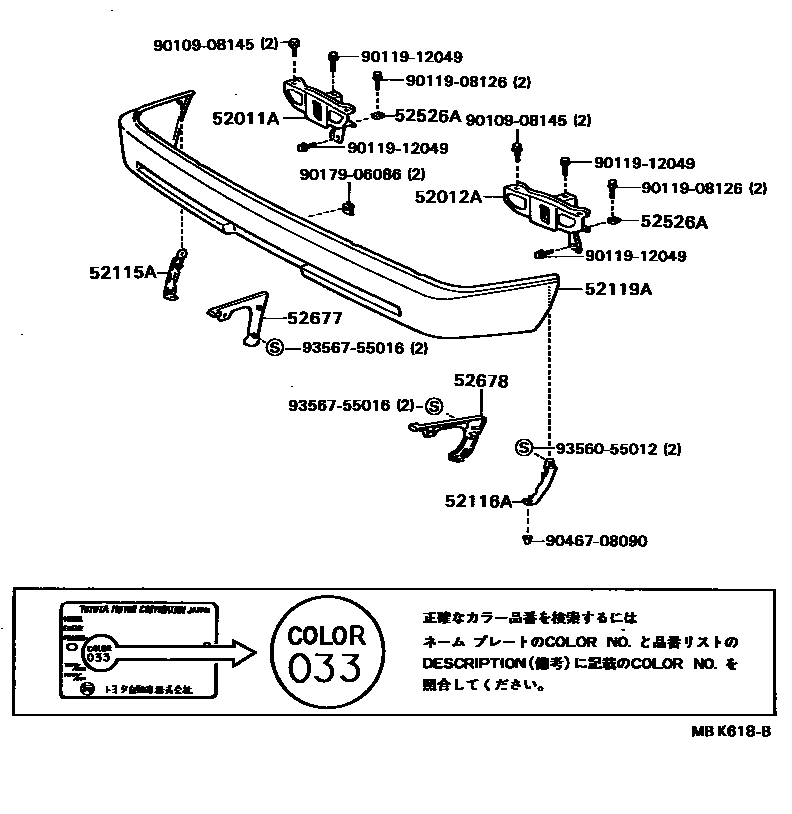

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52011-16080 · 52011-16090 |
| 52012A | Front bumper left arm sub-assembly | 52012-16070 · 52012-16080 |
| 52115A | Front bumper right side bracket | 52115-16070 · 52115-16080 |
| 52116A | Front bumper left bracket | 52116-16060 · 52116-16070 |
| 52119A | front bumper cover | 52119-16200 |
| 52526A | Front bumper No. 1 lower fixing bracket | 52565-12040 |
| 52677 | Front bumper No. 2 right side bracket | 52677-16010 · 52677-16020 |
| 52678 | Front bumper No. 2 left side bracket | 52678-16010 · 52678-16020 |
