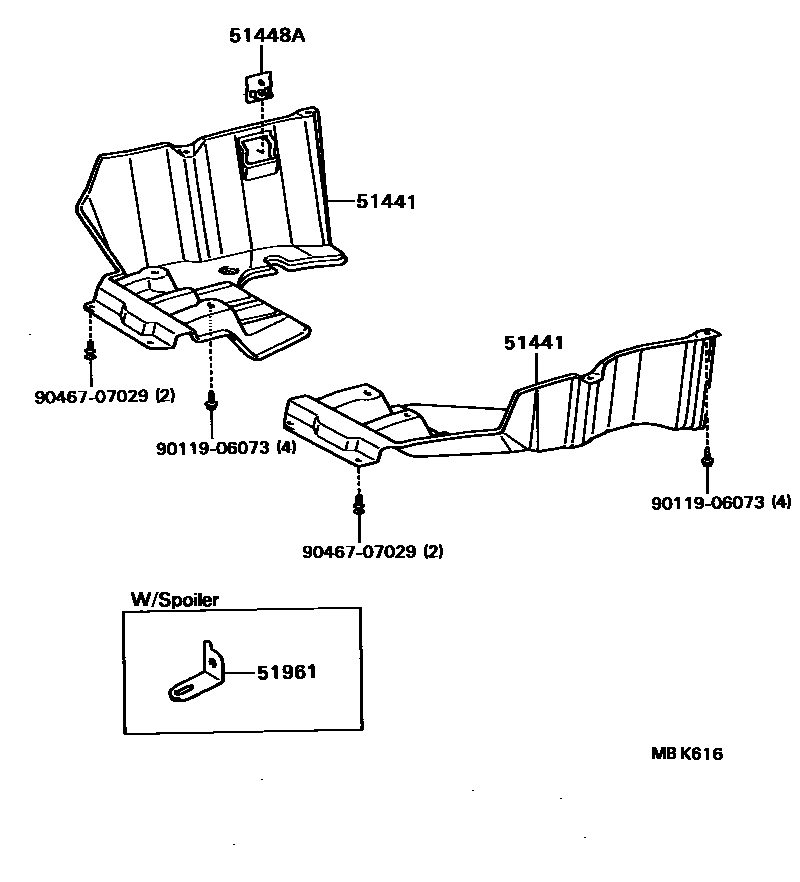

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51441 | No. 1 engine bottom cover | 51441-16030 · 51442-16020 · 51442-16030 |
| 51448A | Engine right bottom cover | 51448-20010 |
| 51961 | No. 1 hook | 51960-16020 |
