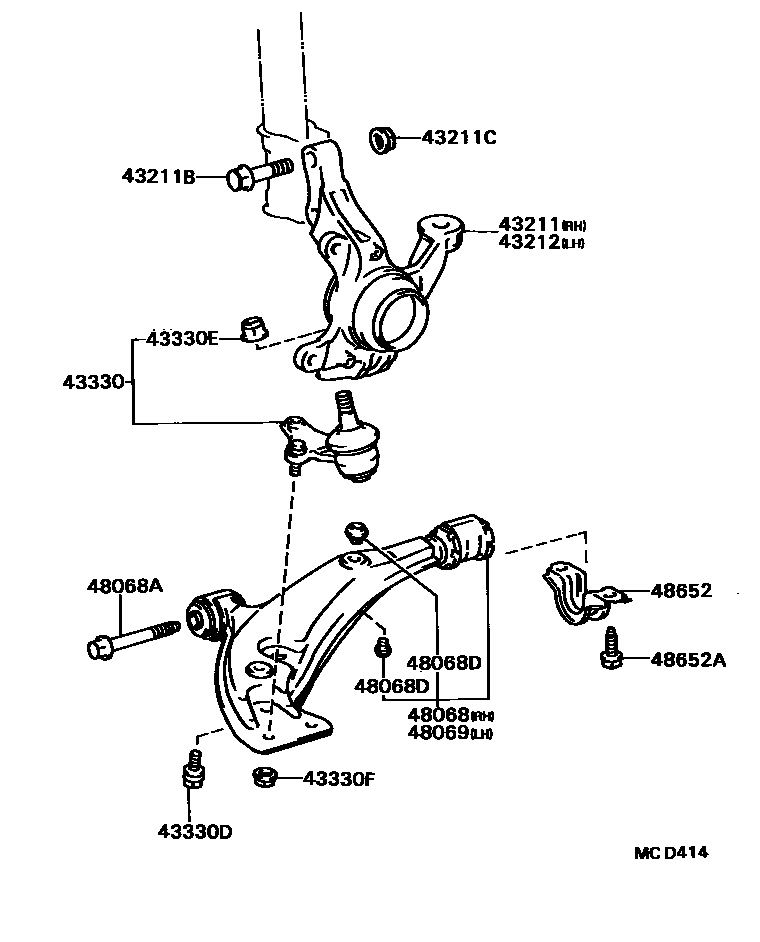

Toyota COROLLA 前桥控制臂和转向节 — Figure 4802
Toyota COROLLA EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-16030 |
| 43211B | Bolts (for securing the shock absorber) | 90105-15001 · 90105-15002 |
| 43211C | Nut (for fixing the shock absorber) | 90179-15001 · 90179-15003 |
| 43212 | left steering knuckle | 43212-16030 |
| 43330 | Front lower ball joint assembly | 43330-19045 |
| 43330D | Bolt (for front lower ball joint) | 90119-10407 |
| 43330E | Castle nut (used to secure the front lower ball joint) | 90179-12027 |
| 43330F | Nut (used to secure the front lower ball joint) | 90179-10087 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-16040 |
| 48068A | Bolt (for front suspension lower arm) | 90119-12099 |
| 48068D | Hole plug (for front suspension lower arm) | 90950-01414 · 90950-01478 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-16040 |
| 48652 | Front lower arm brace | 48652-10010 |
| 48652A | Bolt (for front lower arm bracket) | 90105-12061 |
